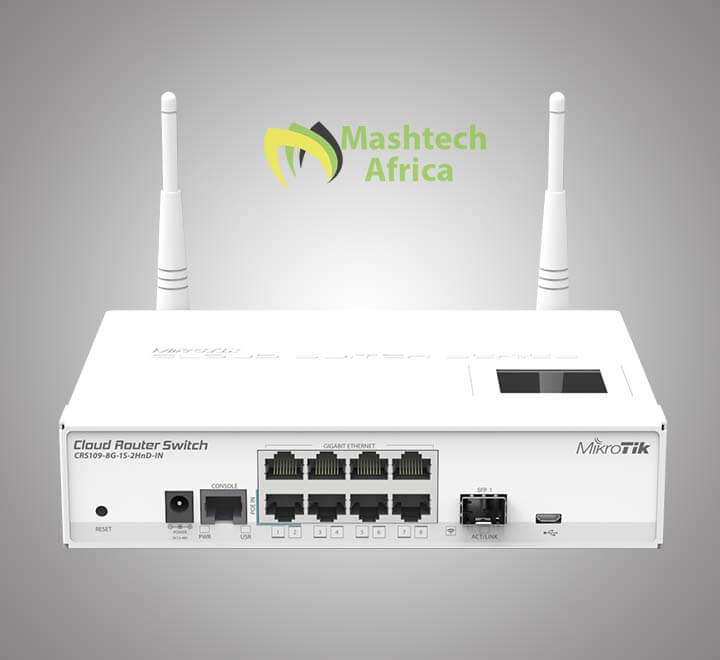

Mikrotik Cloud Router Switch CRS109-8G-1S-2HnD-IN
7 in stock
- 8x Gigabit Smart Switch, 1x SFP cage, LCD, 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5, supports 10-57V, 802.3af/at compliant
- The Mikrotik Cloud Router Switch CRS 109-8G-1S-2HnD-IN is a new “small size low cost” member of our CRS series. It comes with eight Gigabit Ethernet ports and a high-power 2.4GHz wireless. The product supports 10-57V and is 802.3af/at compliant!
- Our CRS series combines the best features of a fully functional router and a Layer 3 switch, which is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
SKU: CRS109-8G-1S-2HnD-IN
$158.60 $168.90
7 in stock
CompareSpecifications
| Details | |
|---|---|
| Product code | CRS109-8G-1S-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 200 x 142 x 44 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 65°C |
| Suggested price | $149.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| 802.3af support | yes |
| PoE in input Voltage | 10-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 13 W |
| FAN count | Passive |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | yes |
| SFP ports | 1 |
| Brands | MikroTik Wireless |
|---|
