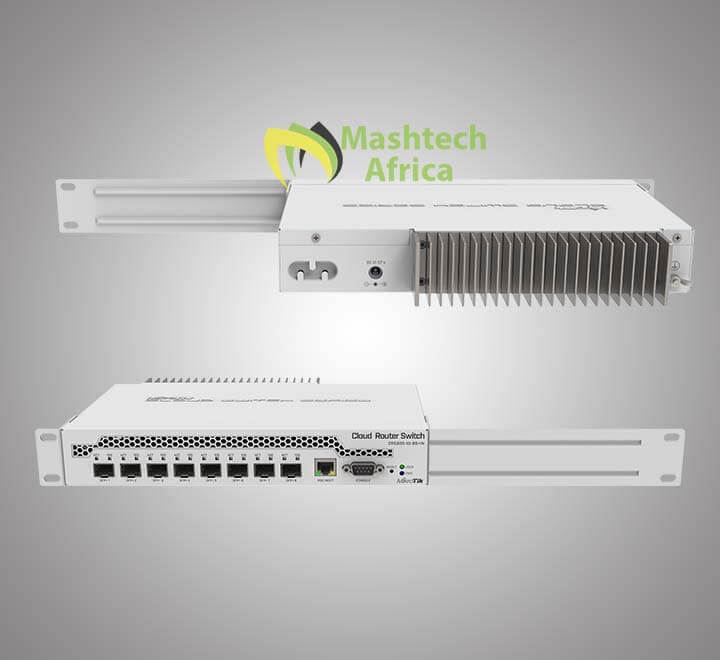

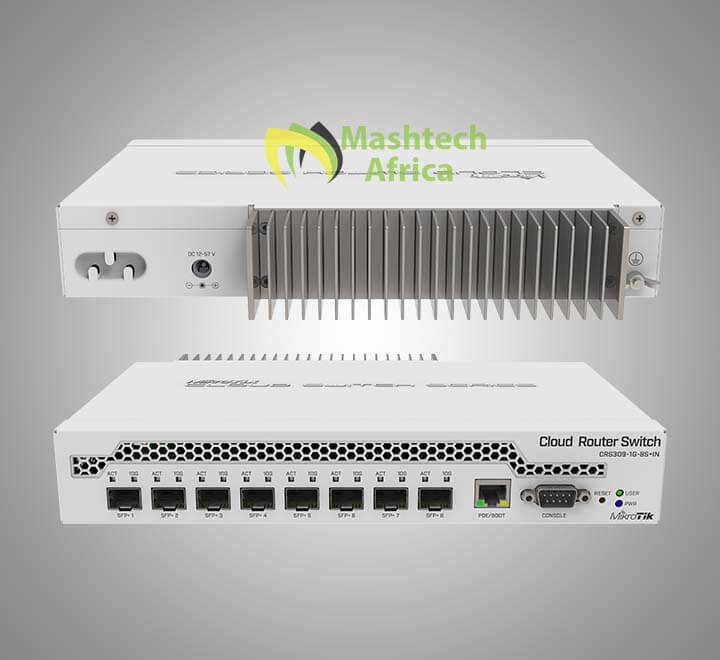

Mikrotik Cloud Router Switch CRS309-1G-8S+IN
6 in stock
The Mikrotik Cloud Router Switch CRS309-1G-8S+IN is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit modules in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has a dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
SKU: CRS309-1G-8S+IN
$268.40 $276.54
6 in stock
Compare-
Cloud Router Switches
Mikrotik Cloud Router Switch CRS309-1G-8S+IN
The Mikrotik Cloud Router Switch CRS309-1G-8S+IN is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit modules in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has a dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
SKU: CRS309-1G-8S+INSKU: CRS309-1G-8S+IN -
Cloud Router Switches
Mikrotik Cloud Router Switch CRS326-24S+2Q+RM
If you are working with a substantial amount of data – like providing Internet access or maintaining a huge data center the Mikrotik Cloud Router Switch CRS326-24S+2Q+RM is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty-four 10 Gbps SFP+ ports, which provide total non-blocking throughput of 320 Gbps and a switching capacity of 640 Gbps with a forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM is easy to manage – it has a full-size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.
SKU: CRS326-24S+2Q+RM
SKU: CRS326-24S+2Q+RM
Specifications
| Details | |
|---|---|
| Product code | CRS309-1G-8S+IN |
| Architecture | ARM 32bit |
| CPU | 98DX8208 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 272 x 191 x 44 mm |
| License level | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $269.00 |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 17 W |
| FAN count | Passive |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 8 |
| Brands | MikroTik Wireless |
|---|
