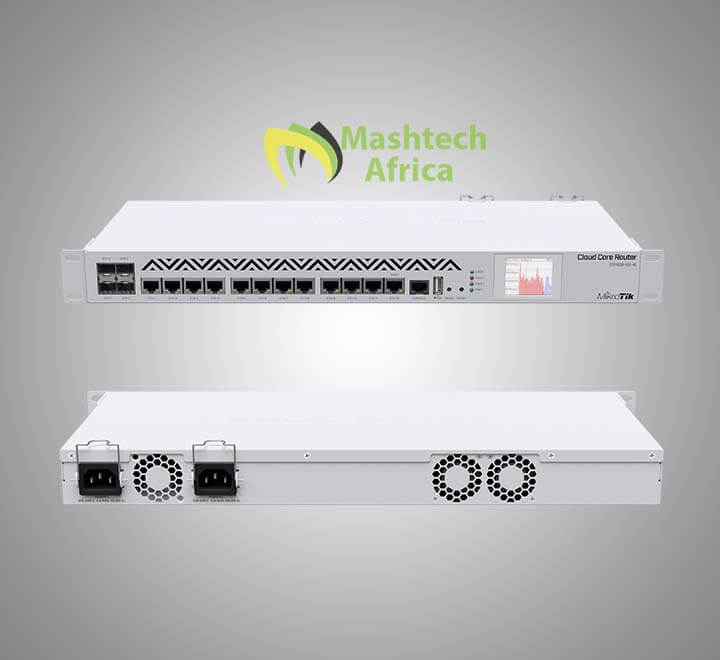

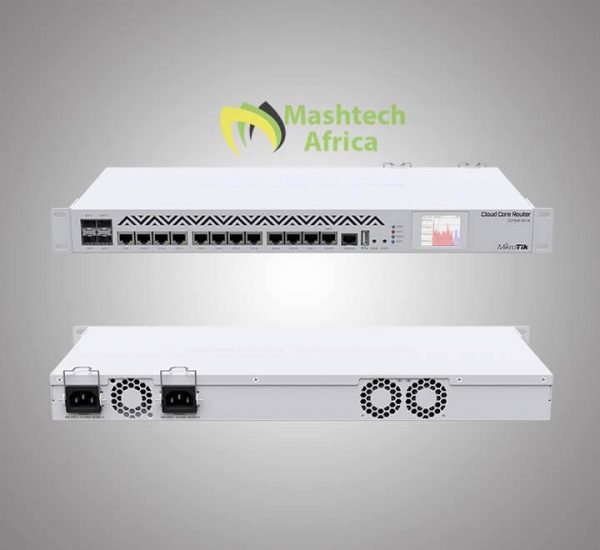

Mikrotik Cloudcore Router CCR1036-12G-4S-EM
6 in stock
- 1U rackmount case
- 12x Gigabit ports
- 4x SFP ports
- Color touchscreen LCD
- Ports directly connected to CPU
- 16GB (2x8GB) of RAM
- 36 core CPU
- 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- 8 mpps standard forwarding
- 24 mpps fastpath forwarding (wire speed for all ports)
- Up to16Gbit/s throughput
CCR1036-12G-4S is an industrial grade router with a cutting-edge 36 core CPU. If you need many millions of packets per second – Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
SKU: CCR1036-12G-4S-EM
$894.67 $910.94
6 in stock
Compare-
Cloud Core Router
Mikrotik Cloudcore Router CCR1036-12G-4S-EM
- 1U rackmount case
- 12x Gigabit ports
- 4x SFP ports
- Color touchscreen LCD
- Ports directly connected to CPU
- 16GB (2x8GB) of RAM
- 36 core CPU
- 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- 8 mpps standard forwarding
- 24 mpps fastpath forwarding (wire speed for all ports)
- Up to16Gbit/s throughput
CCR1036-12G-4S is an industrial grade router with a cutting-edge 36 core CPU. If you need many millions of packets per second – Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
SKU: CCR1036-12G-4S-EM
SKU: CCR1036-12G-4S-EM -
Cloud Core Router
Mikrotik Cloud Core Router CCR1036-12G-4S
- 1U rackmount case
- 12x Gigabit ports
- 4x SFP ports
- Color touchscreen LCD
- Ports directly connected to CPU
- 36 core CPU
- 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- 8 mpps standard forwarding
- 24 mpps fastpath forwarding (wire speed for all ports)
- Up to16Gbit/s throughput
CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second – Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
SKU: CCR1036-12G-4S
SKU: CCR1036-12G-4S
CCR1036-12G-4S-EM is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance – this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits – full wire speed.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.
It has two SODIMM slots, by default it is shipped with 16GB of RAM, but has no memory limit in RouterOS. It comes with power supply and 1U rackmount case.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | CCR1036-12G-4S-EM |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 193 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 8 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $1195.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 60 W |
| FAN count | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 12 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
