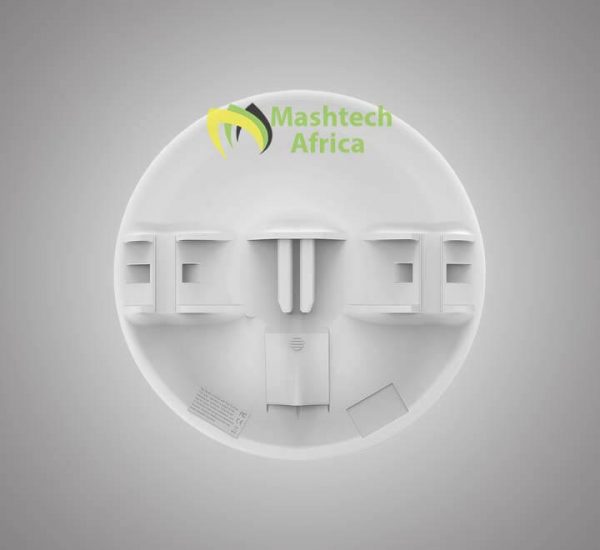

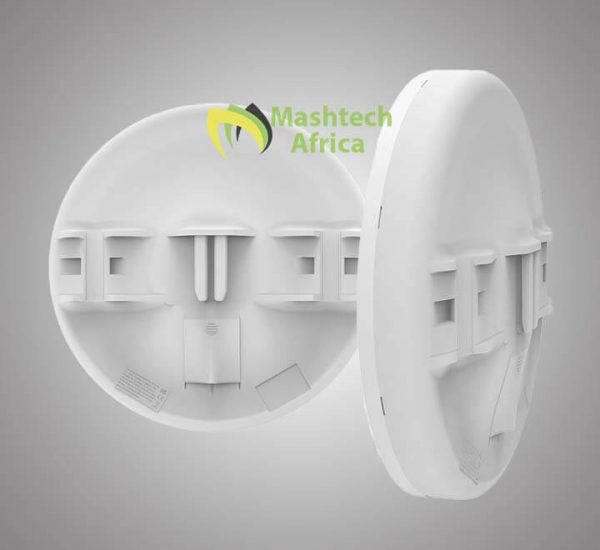

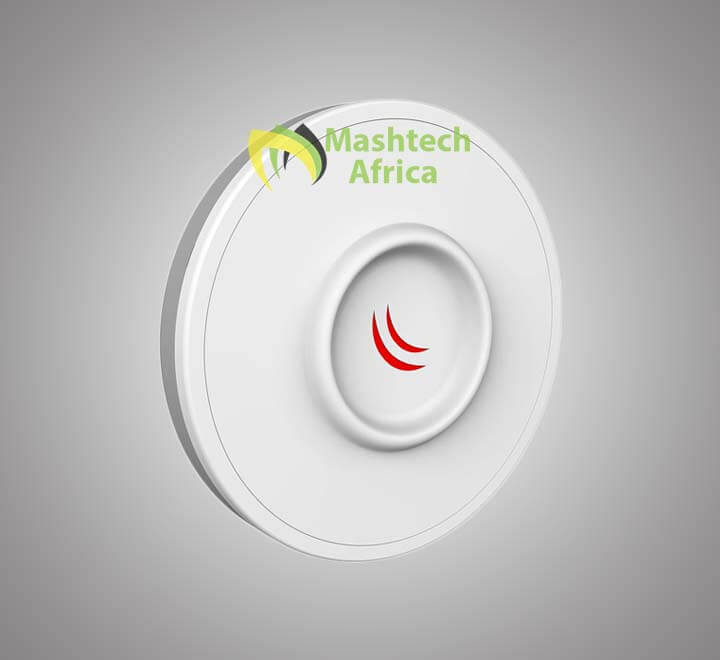

MikroTik DISC Lite5 AC RBDiscG-5acD
8 in stock
- Outdoor 5GHz 802.11a/n/ac wireless device with a backfire type 21dBi integrated antenna and Gigabit Ethernet for longer distances
- The DISC is a low-cost high gain 5 GHz CPE. We have improved antenna design, added a Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.
- DISC Lite5 ac is equipped with a 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port, and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector, and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.
- The RouterOS Level 3 allows using the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.- DISC Lite5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- DISC Lite5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU:RBDiscG-5acD
$52.87
8 in stock
Compare-
DISC
MikroTik DISC Lite5 AC RBDiscG-5acD
- Outdoor 5GHz 802.11a/n/ac wireless device with a backfire type 21dBi integrated antenna and Gigabit Ethernet for longer distances
- The DISC is a low-cost high gain 5 GHz CPE. We have improved antenna design, added a Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.
- DISC Lite5 ac is equipped with a 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port, and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector, and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.
- The RouterOS Level 3 allows using the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.- DISC Lite5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- DISC Lite5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU:RBDiscG-5acD
SKU: RBDiscG-5acD -
cAP, Mikrotik Access Points
Mikrotik cAP Ceiling Access Point RBCAP2ND
- Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support
- RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality businesses like hotels, airports, shopping malls, etc.
- cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
- Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter, and even the screws and screw anchors.
SKU: RBCAP2ND
SKU: RBCAP2ND -
wAP
Mikrotik wAP ac RBwAPG-5HacT2HnD
- Small dual-band 2.4 / 5GHz white weatherproof wireless access point for mounting on a ceiling, wall, or pole
- The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need wireless access from your phone or computer.
- The device has one Gigabit Ethernet port, it supports 802.11a/b/g/n/ac wireless protocols and can work at both the 2.4GHz and 5GHz frequencies simultaneously. It looks unobtrusive and sleek.
- The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – so that it is securely attached to its mounting location.
- We have two versions available.- RBwAPG-5HacT2HnD (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).- RBwAPG-5HacT2HnD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz, and 5725-5835MHz frequencies. This lock can not be removed.
SKU: RBwAPG-5HacT2HnD
SKU: RBwAPG-5HacT2HnD
Specifications
| Details | |
|---|---|
| Product code | RBDiscG-5acD |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | ⌀ 265mm, height: 80mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $58.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 7 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 21 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
Included parts
| Brands | MikroTik Wireless |
|---|
