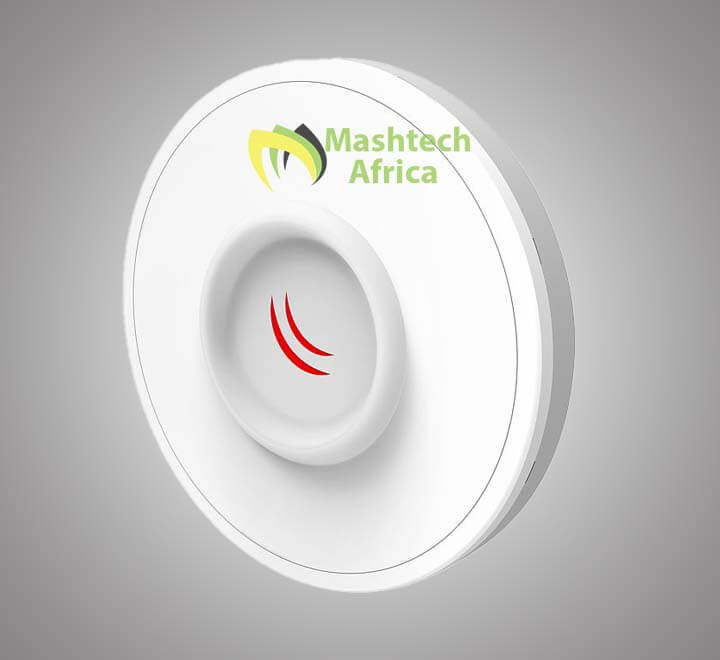

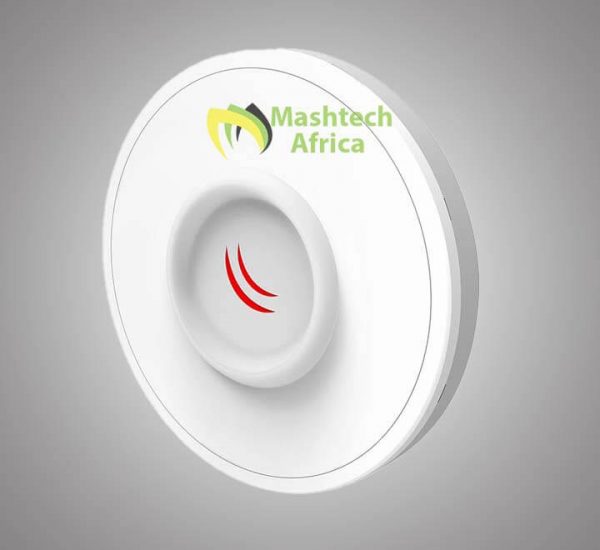

MikroTik Disc Lite5 RBDisc-5nD
8 in stock
- Dual chain 21dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM
- DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port, and RouterOS L3 installed. The DISC uses a backfire-type antenna which allows reaching 21dBi gain in such a low cost and compact package.
- The device comes complete with a power supply, PoE injector, and mounting kit for an ultra low cost at $48!
- The RouterOS Level3 allows using the DISC Lite5 as CPE or Point-to-Point 5GHz links.
- We have two versions available.- DISC Lite5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- DISC Lite5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBDisc-5nD
$43.11 $46.36
8 in stock
Compare-
DISC
MikroTik Disc Lite5 RBDisc-5nD
- Dual chain 21dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM
- DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port, and RouterOS L3 installed. The DISC uses a backfire-type antenna which allows reaching 21dBi gain in such a low cost and compact package.
- The device comes complete with a power supply, PoE injector, and mounting kit for an ultra low cost at $48!
- The RouterOS Level3 allows using the DISC Lite5 as CPE or Point-to-Point 5GHz links.
- We have two versions available.- DISC Lite5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- DISC Lite5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBDisc-5nD
SKU: RBDisc-5nD -
cAP, Mikrotik Access Points
Mikrotik cAP Ceiling Access Point RBCAP2ND
- Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support
- RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality businesses like hotels, airports, shopping malls, etc.
- cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
- Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter, and even the screws and screw anchors.
SKU: RBCAP2ND
SKU: RBCAP2ND -
Mikrotik Access Points, wAP
MikroTik wAP BE RBwAP2nD-BE
- The wAP is a small weatherproof wireless access point for your mobile devices – perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need wireless access from your phone or computer.
- The device has one 10/100 Ethernet port, it supports 802.11b/g/n wireless standards. It looks unobtrusive and sleek, available in two colors – black (RBwAP2nD-BE) and white (RBwAP2nD).
- It is also possible to run the Ethernet cable directly behind the unit, to inside the wall, there is a special opening on the back of the case. This way, the unit doesn’t attract attention and blends into any environment.
SKU: RBwAP2nD-BE
SKU: RBwAP2nD-BE
Specifications
| Details | |
|---|---|
| Product code | RBDisc-5nD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | ⌀ 265mm, height: 80mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $48.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 21 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
Included parts
