DynaDish

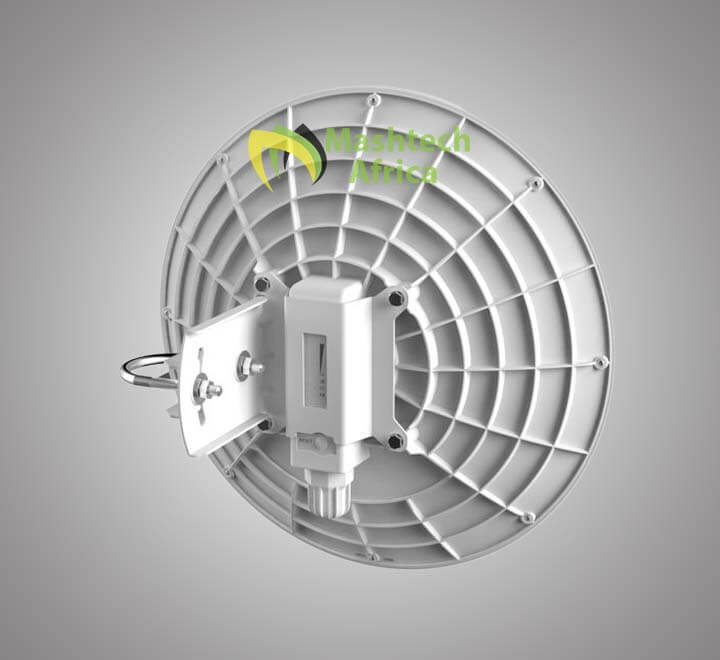

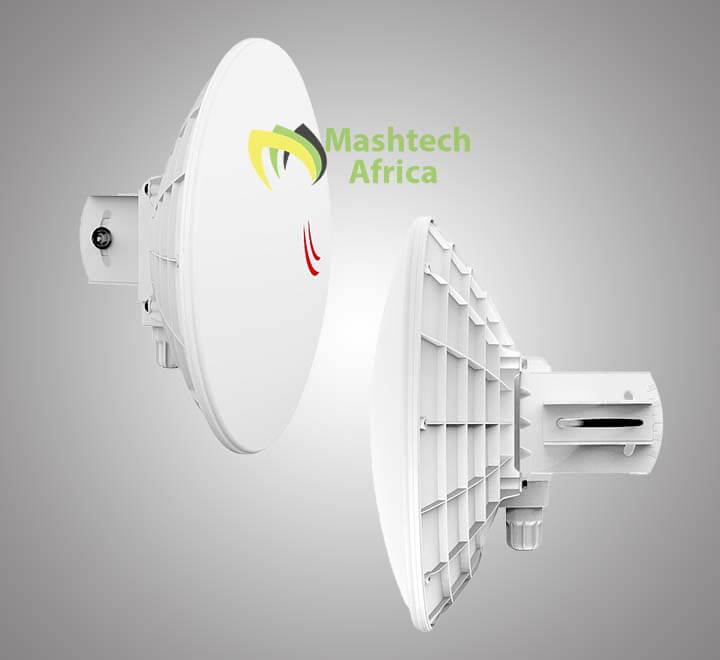

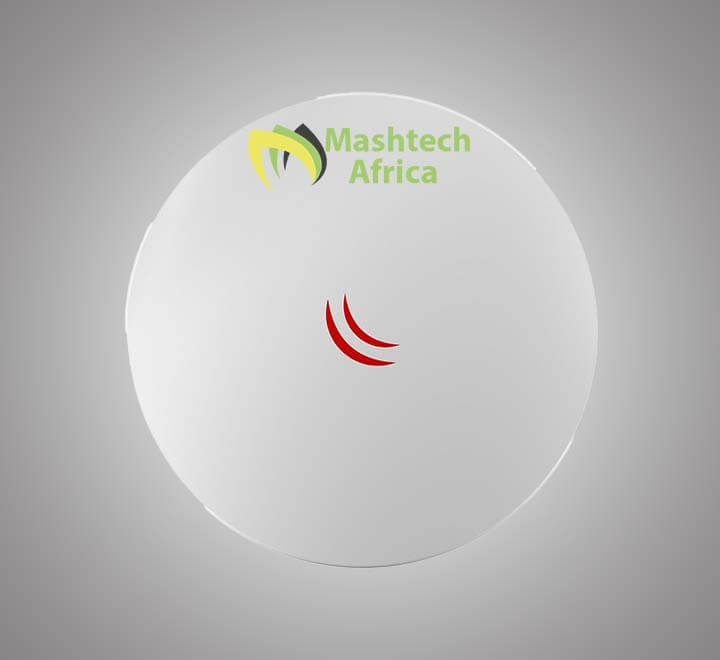

MikroTik DynaDish 5 RBDynaDishG-5HacDr3
Availability:
7 in stock
- Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain
- The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in its design, it is a simple and completely integrated product with everything you need to quickly install a reliable point-to-point link.
- The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.
- – RBDynaDishG-5HacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- – RBDynaDishG-5HacD (International) supports the 5150-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBDynaDishG-5HacDr3
Compare
-
DynaDish
MikroTik DynaDish 5 RBDynaDishG-5HacDr3
- Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain
- The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in its design, it is a simple and completely integrated product with everything you need to quickly install a reliable point-to-point link.
- The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.
- – RBDynaDishG-5HacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- – RBDynaDishG-5HacD (International) supports the 5150-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBDynaDishG-5HacDr3
SKU: RBDynaDishG-5HacDr3 -
DISC
MikroTik DISC Lite5 AC RBDiscG-5acD
- Outdoor 5GHz 802.11a/n/ac wireless device with a backfire type 21dBi integrated antenna and Gigabit Ethernet for longer distances
- The DISC is a low-cost high gain 5 GHz CPE. We have improved antenna design, added a Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.
- DISC Lite5 ac is equipped with a 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port, and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector, and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.
- The RouterOS Level 3 allows using the DISC Lite5 ac as a CPE or for 5 GHz Point-to-Point links.- DISC Lite5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- DISC Lite5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU:RBDiscG-5acD
SKU: RBDiscG-5acD -
DISC
MikroTik Disc Lite5 RBDisc-5nD
- Dual chain 21dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM
- DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port, and RouterOS L3 installed. The DISC uses a backfire-type antenna which allows reaching 21dBi gain in such a low cost and compact package.
- The device comes complete with a power supply, PoE injector, and mounting kit for an ultra low cost at $48!
- The RouterOS Level3 allows using the DISC Lite5 as CPE or Point-to-Point 5GHz links.
- We have two versions available.- DISC Lite5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- DISC Lite5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBDisc-5nD
SKU: RBDisc-5nD
$95.98 for 3 item(s)
Specifications
| Details | |
|---|---|
| Product code | RBDynaDishG-5HacDr3 |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | Ø 404mm, height 175mm (without mount) |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $179.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 9 W |
| FAN count | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-60 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 25 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
Included parts
| Brands | MikroTik Wireless |
|---|
