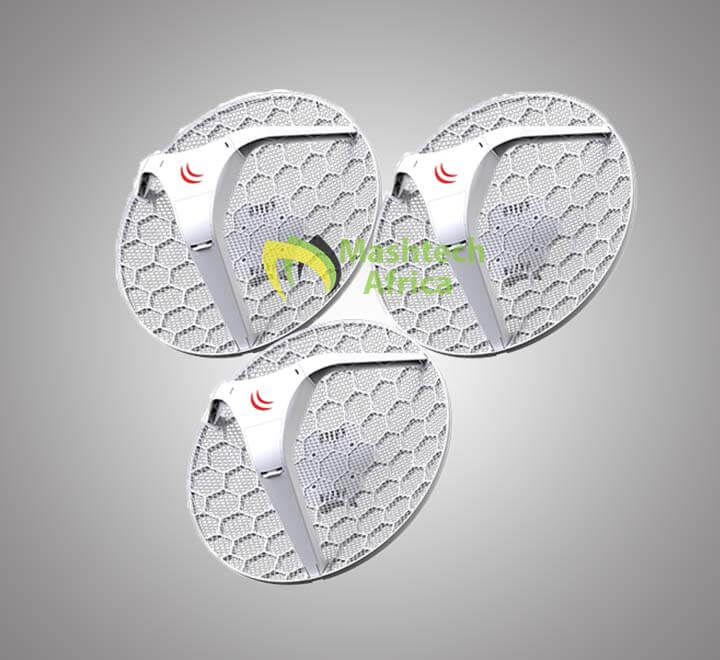

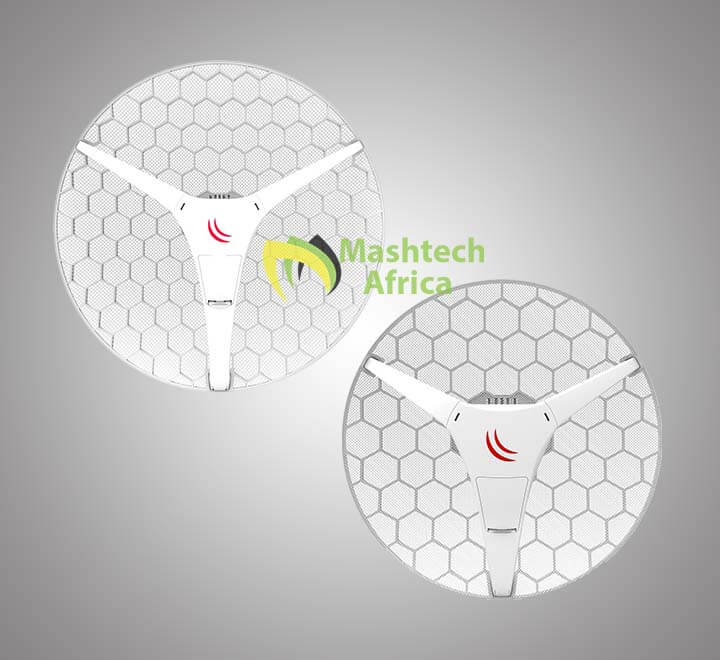

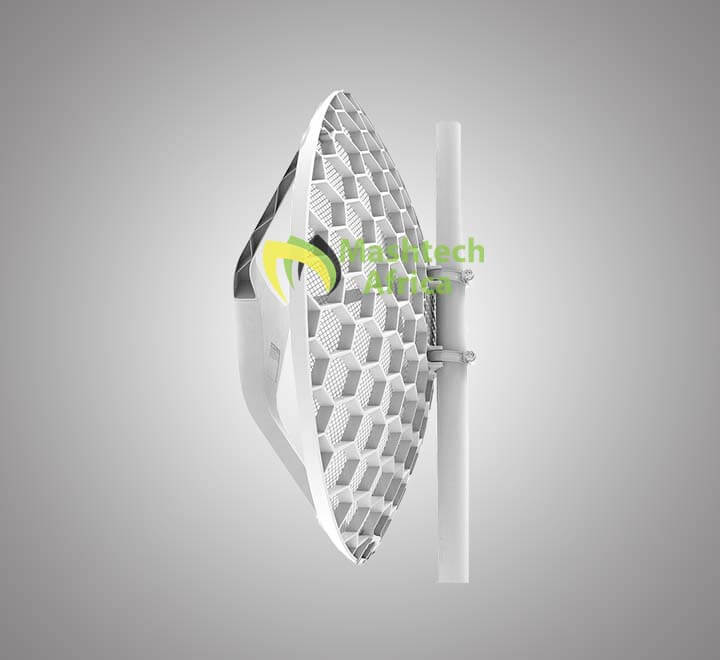

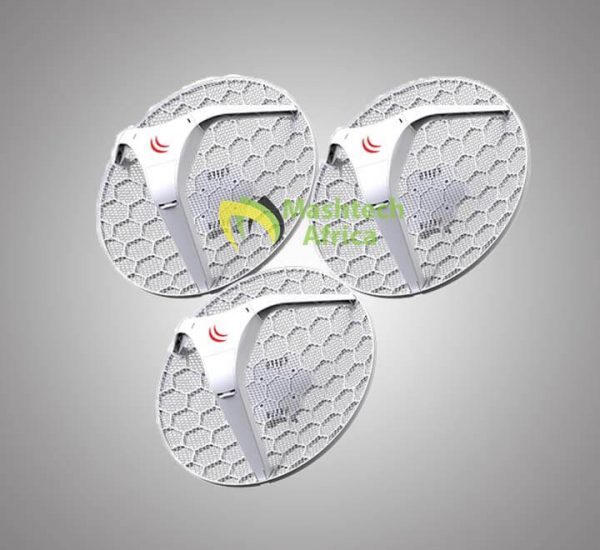

Mikrotik LHG 5 AC RBLHGG-5ACD
6 in stock
- Dual chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna with AC support and Gigabit Ethernet
- The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point-to-point links or for use as a CPE at longer distances and supports the Nv2 TDMA protocol.
- The device includes one 10/100/1000 Mbit Ethernet port to fully utilize the speeds that the 802.11ac protocol provides.
- – LHG 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- – LHG 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBLHGG-5ACD
$69.13 $73.20
6 in stock
Compare-
LHG
Mikrotik LHG 5 AC RBLHGG-5ACD
- Dual chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna with AC support and Gigabit Ethernet
- The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point-to-point links or for use as a CPE at longer distances and supports the Nv2 TDMA protocol.
- The device includes one 10/100/1000 Mbit Ethernet port to fully utilize the speeds that the 802.11ac protocol provides.
- – LHG 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- – LHG 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBLHGG-5ACD
SKU: RBLHGG-5ACD -
DISC
MikroTik Disc Lite5 RBDisc-5nD
- Dual chain 21dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM
- DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port, and RouterOS L3 installed. The DISC uses a backfire-type antenna which allows reaching 21dBi gain in such a low cost and compact package.
- The device comes complete with a power supply, PoE injector, and mounting kit for an ultra low cost at $48!
- The RouterOS Level3 allows using the DISC Lite5 as CPE or Point-to-Point 5GHz links.
- We have two versions available.- DISC Lite5 US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- DISC Lite5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBDisc-5nD
SKU: RBDisc-5nD -
DynaDish
MikroTik DynaDish 5 RBDynaDishG-5HacDr3
- Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain
- The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in its design, it is a simple and completely integrated product with everything you need to quickly install a reliable point-to-point link.
- The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.
- – RBDynaDishG-5HacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- – RBDynaDishG-5HacD (International) supports the 5150-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RBDynaDishG-5HacDr3
SKU: RBDynaDishG-5HacDr3
Specifications
| Details | |
|---|---|
| Product code | RBLHGG-5acD |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | Ø 391 x 222 mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $89.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 24.5 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
Included parts
| Brands | MikroTik Wireless |
|---|
