mANT

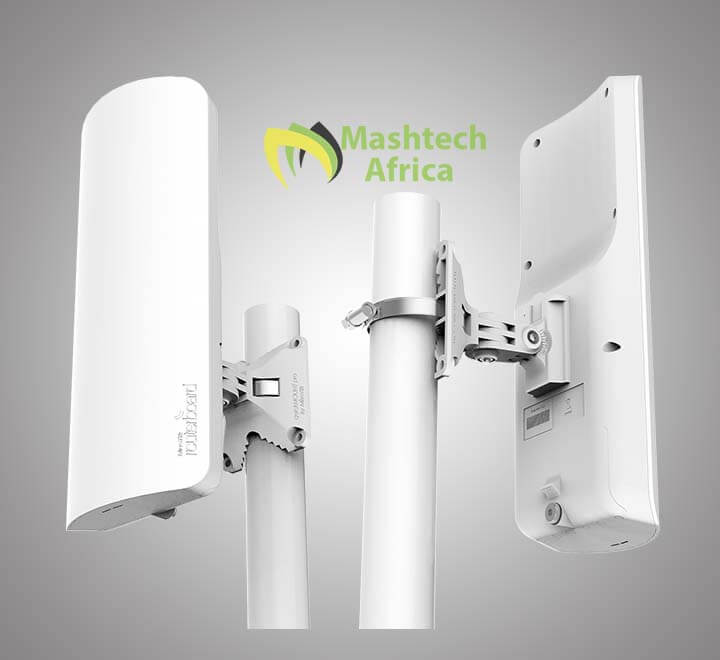

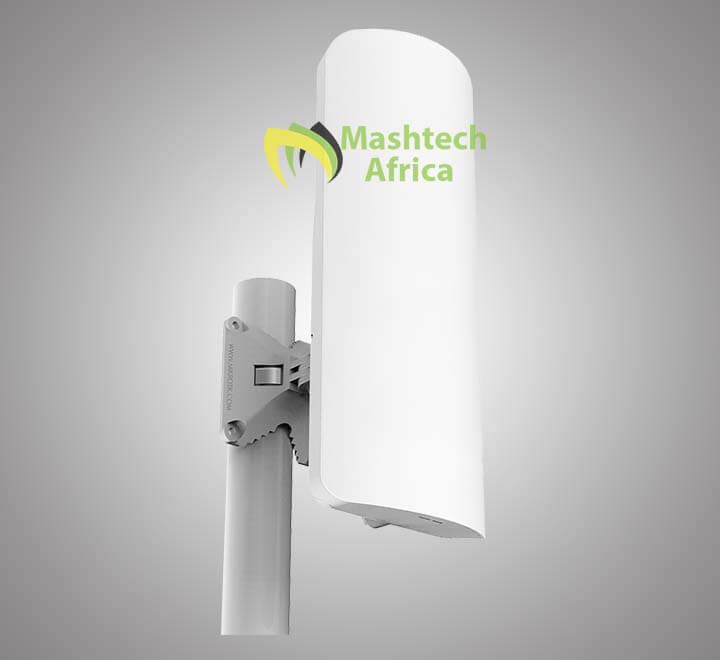

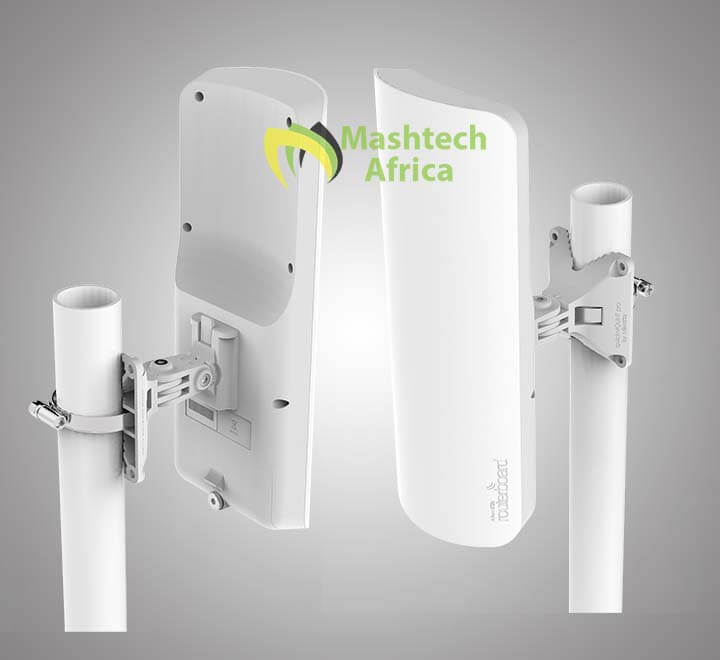

Mikrotik mANT 15s MTAS-5G-15D120
Availability:
8 in stock
- Dual-polarization 5Ghz 15dBi 120 degrees beamwidth antenna with two RP-SMA connectors
- The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal, or any other outdoor wireless device.
- The mANT is a dual-polarization 15dBi 120-degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.
SKU: MTAS-5G-15D120
Compare
-
mANT
Mikrotik mANT 15s MTAS-5G-15D120
- Dual-polarization 5Ghz 15dBi 120 degrees beamwidth antenna with two RP-SMA connectors
- The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal, or any other outdoor wireless device.
- The mANT is a dual-polarization 15dBi 120-degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.
SKU: MTAS-5G-15D120
SKU: MTAS-5G-15D120 -
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 2 RB912UAG-2HPnD-OUT
- The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual-band device or a 3G/4G modem.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
SKU: RB912UAG-2HPnD-OUT
SKU: RB912UAG-2HPnD-OUT -
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 5 RB912UAG-5HPND-OUT
- TheThe RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual-band device.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
- Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount- RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- RB912UAG-5HPnD-OUT (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RB912UAG-5HPND-OUT
SKU: RB912UAG-5HPND-OUT
$1.56 for 3 item(s)
Product specifications
| Details | |
|---|---|
| Product code | MTAS-5G-15D120 |
| Beamwidth | 120 deg (azimuth) 10 deg (elevation) |
| Connector | two RP-SMA |
| Cross Polarization | >30 dB |
| Diameter x Depth | 140 x 348 x 82 mm |
| Frequency Range | 5.17 – 5.825 GHz |
| Front-to-Back Ratio | >30 dB |
| Polarization | Vertical and horizontal |
| Port to Port Isolation | >40 dB min |
| VSWR | 1.43 typ, 1.8 max |
| Weight | 734 g |
| Suggested price | |
| Brands | MikroTik Wireless |
|---|
