-21%
RouterBOARD
Mikrotik Router Board RB912UAG-5HPnD
Availability:
9 in stock

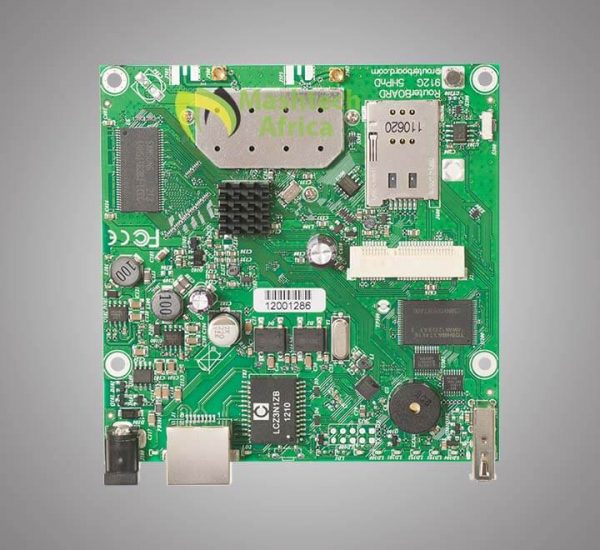

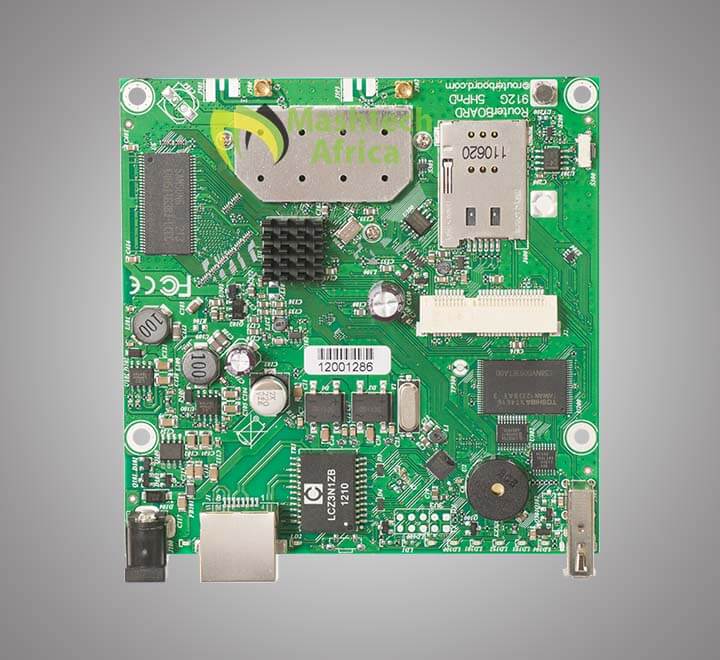

- The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
- It has built-in 16kV ESD protection on both the Ethernet and the MMCX ports
- RB912UAG-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB912UAG-5HPnD (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RB912UAG-5HPnD
$73.19 $93.10
9 in stock
Compare-
RouterBOARD
Mikrotik Router Board RB912UAG-5HPnD
- The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
- It has built-in 16kV ESD protection on both the Ethernet and the MMCX ports
- RB912UAG-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB912UAG-5HPnD (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RB912UAG-5HPnD
SKU: RB912UAG-5HPnD -
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 2 RB912UAG-2HPnD-OUT
- The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual-band device or a 3G/4G modem.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
SKU: RB912UAG-2HPnD-OUT
SKU: RB912UAG-2HPnD-OUT -
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 5 RB912UAG-5HPND-OUT
- TheThe RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual-band device.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
- Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount- RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- RB912UAG-5HPnD-OUT (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SKU: RB912UAG-5HPND-OUT
SKU: RB912UAG-5HPND-OUT
$74.75 for 3 item(s)
Specifications
| Details | |
|---|---|
| Product code | RB912UAG-5HPnD |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 105x105mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $79.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 12 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Wireless 5 GHz chip model | AR9342 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP00 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 26 | -75 |
| Brands | MikroTik Wireless |
|---|
