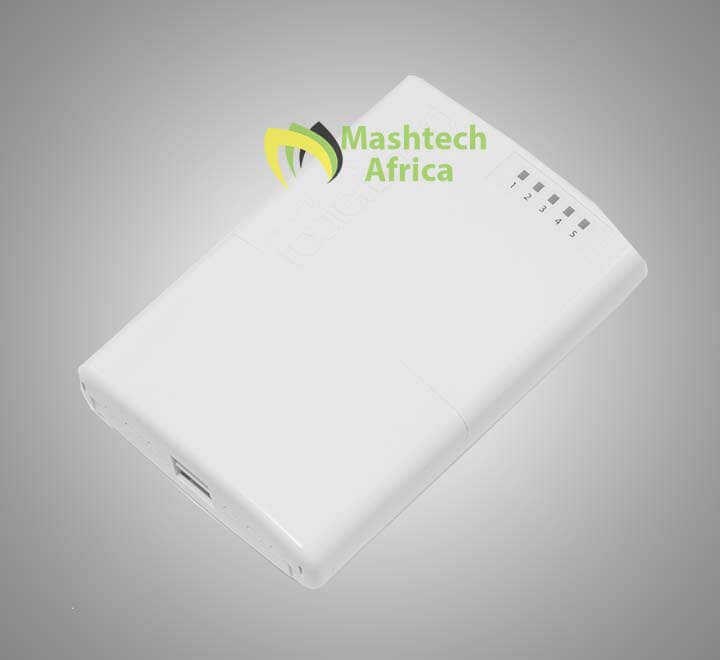

MikroTik RouterBOARD PowerBox RB750P-PBR2 Outdoor Router
5 in stock
- 650MHz CPU
- 64MB RAM
- 5xEthernet with PoE output for four ports
- RouterOS L4
- outdoor case
- PSU
The Mikrotik RB750P-PBr2 Powerbox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE-capable devices such as our SXT or others.

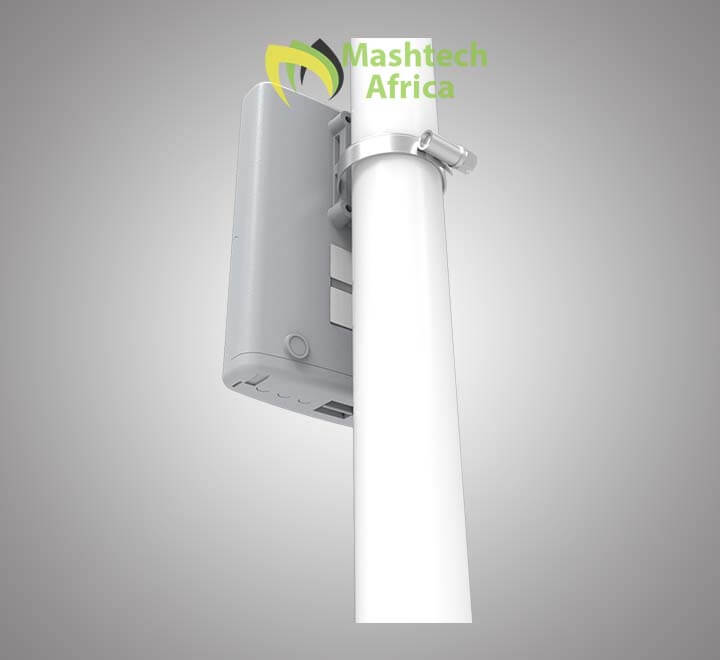

Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.

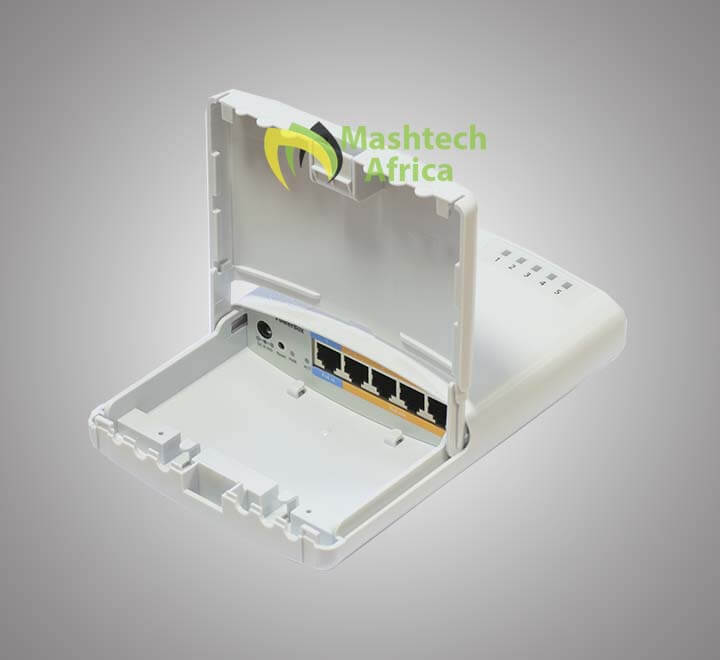

The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Fewer power adapters and cables to worry about!
SKU: RB750P-PBr2
$73.20 $76.18
5 in stock
Compare-
PowerBox
MikroTik RouterBOARD PowerBox RB750P-PBR2 Outdoor Router
- 650MHz CPU
- 64MB RAM
- 5xEthernet with PoE output for four ports
- RouterOS L4
- outdoor case
- PSU
The Mikrotik RB750P-PBr2 Powerbox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE-capable devices such as our SXT or others.
Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Fewer power adapters and cables to worry about!
SKU: RB750P-PBr2
SKU: RB750P-PBr2 -
RouterBOARD
Mikrotik RouterBoard 10xGigabit RB3011UIAS-RM
- 1U rackmount
- 10xGigabit Ethernet
- SFP
- USB 3.0
- LCD
- PoE out on port 10
- 2×1.4GHz CPU
- 1GB RAM
- RouterOS L5
The Mikrotik RB3011UIAS-RM RouterBoard 10xGigabit with Dual-core 1.4GHz ARM CPU, 1GB RAM, 10x Gbit LAN, 1xSFP port, RouterOS L5, 1U rackmount case, LCD pane.
The Mikrotik RB3011UiAS-RM is a new multi-port device, our first to be running an ARM architecture CPU for higher performance than ever before.
The RB3011UiAS-RM has ten Gigabit ports divided into two switch groups, an SFP cage and for the first time a SuperSpeed full-size USB 3.0 port, for adding storage or an external 3G/4G modem.
It comes with a 1U rackmount enclosure, a touchscreen LCD panel, a serial console port, and PoE output functionality on the last Ethernet port.
SKU: RB3011UIAS-RM
SKU: RB3011UIAS-RM
The MikroTik RouterBoard PowerBox RB750P-PBr2 is an outdoor variant of the popular RB750P router. The device has 5 Ethernet ports, with PoE on ports 1-4. The device has an outdoor casing and can be attached to masts and other outdoor locations. All 5 of the Ethernet ports are shielded 10/100 Ethernet ports. The 4 PoE capable ports can supply a maximum of 1A per port and a maximum of 2A between all 4 ports.
The MikroTik RouterBoard PowerBox RB750P-PBr2 is equipped with a QCA9531 650MHz CPU with 64MB of RAM.
Package Contents
- 1x PoE Injector
- 1x MikroTik RouterBOARD PowerBox – RB750P-PBR2
- 1x DIN Mount
- 2x Cable Ties
- 1x Mounting Strap
- 1x Power Supply
- 1x UK Mains Cable
Product Features
- Outdoor Waterproof Case
- 5x Shielded Ethernet Ports
- 2A PoE Across 4 Ports
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | RB750P-PBr2 |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 125x178x48mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $69.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 50 W |
| Max power consumption without attachments | 2 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 1 A |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
Other
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Included parts
