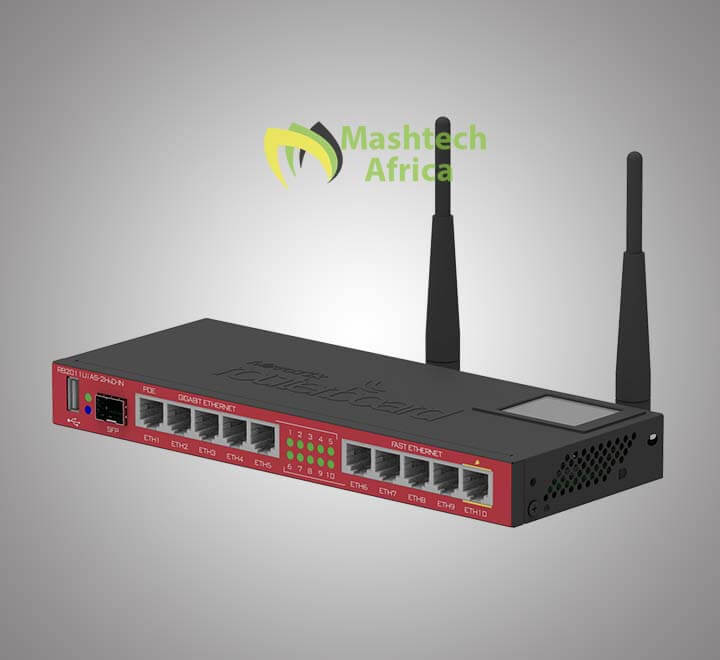

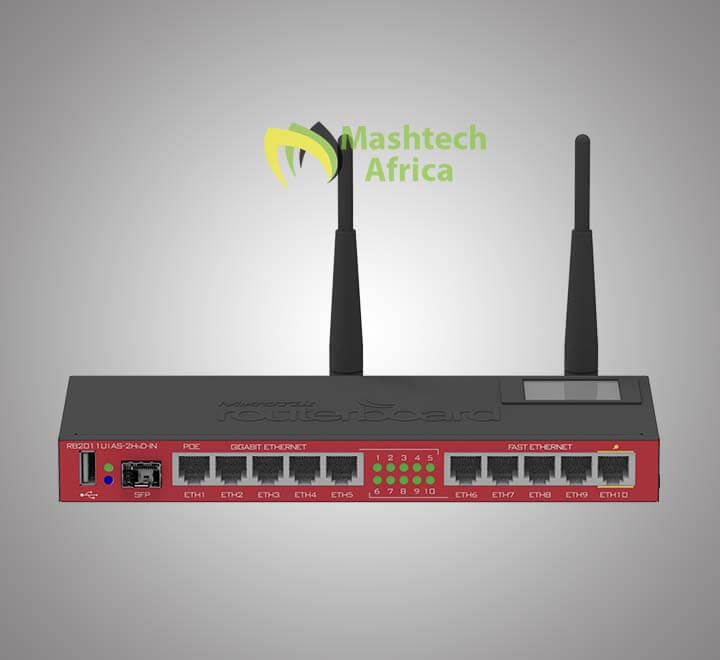

MikroTik RouterBOARD Wireless Router RB2011UiAS-2HnD-IN
8 in stock
- 2.4GHz AP, 5x Ethernet, 5x Gigabit Ethernet, SFP cage, USB, LCD, PoE output on Eth10, 600MHz CPU, 128MB RAM
- The RB2011UiAS-2HnD-IN is a low-cost multi-port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
- The RB2011 is powered by RouterOS, a fully featured routing operating system that has been continuously improved for fifteen years.
- Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, and monitoring – just a few of the vast number of features supported by RouterOS.
SKU: RB2011UiAS-2HnD-IN
$10.57 $12.76
8 in stock
Compare-
RouterBOARD
MikroTik RouterBOARD Wireless Router RB2011UiAS-2HnD-IN
- 2.4GHz AP, 5x Ethernet, 5x Gigabit Ethernet, SFP cage, USB, LCD, PoE output on Eth10, 600MHz CPU, 128MB RAM
- The RB2011UiAS-2HnD-IN is a low-cost multi-port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
- The RB2011 is powered by RouterOS, a fully featured routing operating system that has been continuously improved for fifteen years.
- Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration, and monitoring – just a few of the vast number of features supported by RouterOS.
SKU: RB2011UiAS-2HnD-IN
SKU: RB2011UiAS-2HnD-IN -
RouterBOARD
MikroTik RouterBoard RB2011UiAS-RM
- 1U rackmount
- 5xEthernet
- 5xGigabit Ethernet
- USB
- LCD
- PoE out on port 10
- 600MHz CPU
- 128MB RAM
- RouterOS L5
- The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
- The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
- RouterBOARD 2011UiAS-RM, in comparison with the RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port, and more RAM (128MB instead of 64MB). Also, it has a RouterOS L5 license (instead of L4) and a nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)
SKU: RB2011UiAS-RM
SKU: RB2011UiAS-RM
The RB2011Ui is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, USB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel- all this for only $129!
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
RouterBOARD 2011UAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.
Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.
The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable
The MikroTik RouterBoard 2011UiAS-2HnD has most features and interfaces of all the MikroTik RouterBoard Wireless routers. It’s powered by the Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). The RB2011UiAS-2HnD-IN also features PoE on port 10, powerful (up to 1W!) dual chain 2.4Ghz 802.11bgn wireless, RJ45 serial port, microUSB port and RouterOS L5 license.
Package Contents
- 1x RB2011UIAS-2HND-IN
- 1x Mains Power Lead
- 1x USB Cable
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | RB2011UiAS-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 214mm x 86mm for PCB |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $129.00 |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 11 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 510 mA |
| Max total out (A) | 510 mA |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 30 | -96 |
| 11MBit/s | 28 | -80 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -92 |
| MCS7 | 25 | -73 |
Included parts
