Mikrotik Switches

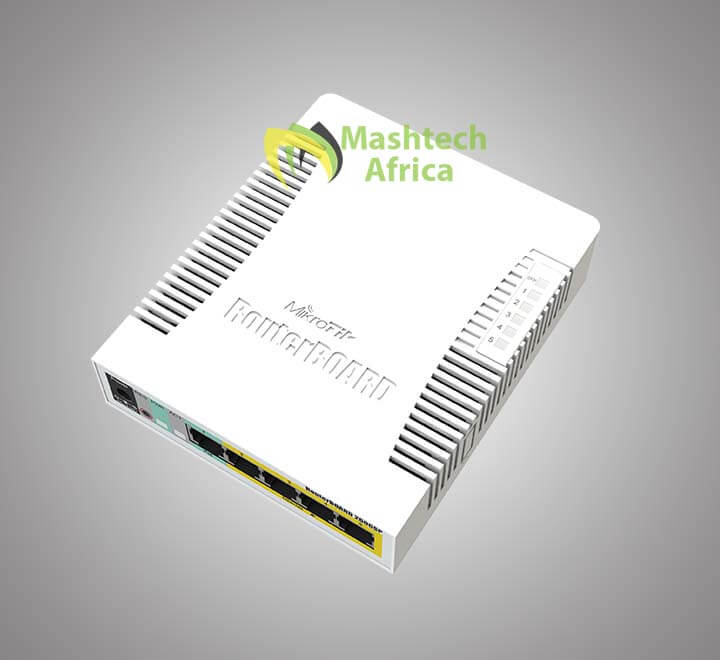

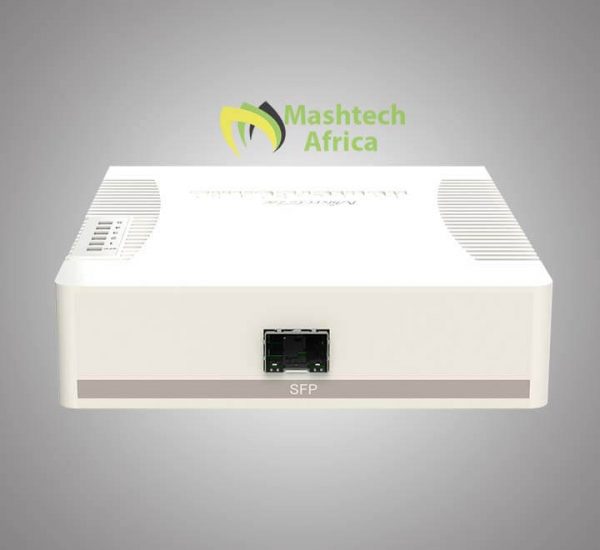

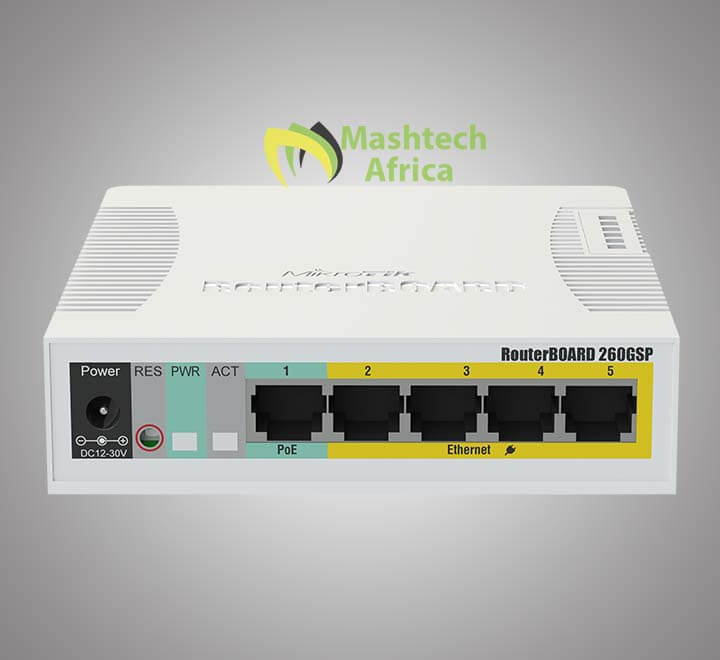

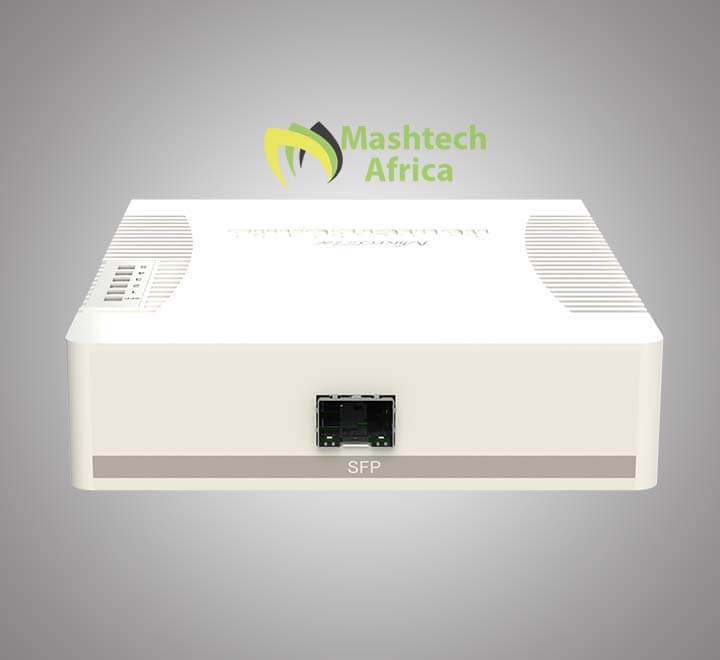

MikroTik Switch RB260GSP
Availability:
6 in stock
- 5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS
- The RB260GSP is a small SOHO switch, which features power output on its ethernet ports. Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products – SwOS.
SKU: R RB260GSP
$8,200.00 $9,000.00
6 in stock
Compare-
Mikrotik Switches
MikroTik Switch RB260GSP
- 5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS
- The RB260GSP is a small SOHO switch, which features power output on its ethernet ports. Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products – SwOS.
SKU: R RB260GSP
SKU: RB260GSP -
Mikrotik Switches
MikroTik Switche RB260GS
- 5x Gigabit Ethernet Smart Switch, SFP cage, plastic case, SwOS
- The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.
- Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D, and S-35/53LC20D (not included)
- It is powered by an operating system designed specifically for MikroTik Switch products – SwOS.
- SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows you to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
SKU: RB260GS
SKU: RB260GS
$16,400.00 for 2 item(s)
Specifications
| Details | |
|---|---|
| Product code | CSS106-1G-4P-1S |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $55.95 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 1 A |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
| Brands | MikroTik Wireless |
|---|
