QuWireless Outdoor antenna QuOmni LTE MIMO 2×2, 5m cables (QUOMNI_MIMO2)

Teltonika
Add to wishlist
Compare

Omnidirectional multiband LTE MIMO 2×2 antenna | 4 dbi gain | 694-2700 MHz frequencies | 2x SMA Male connectors | 2x 5m LMR195 cables

$86.77

Compare

Features:

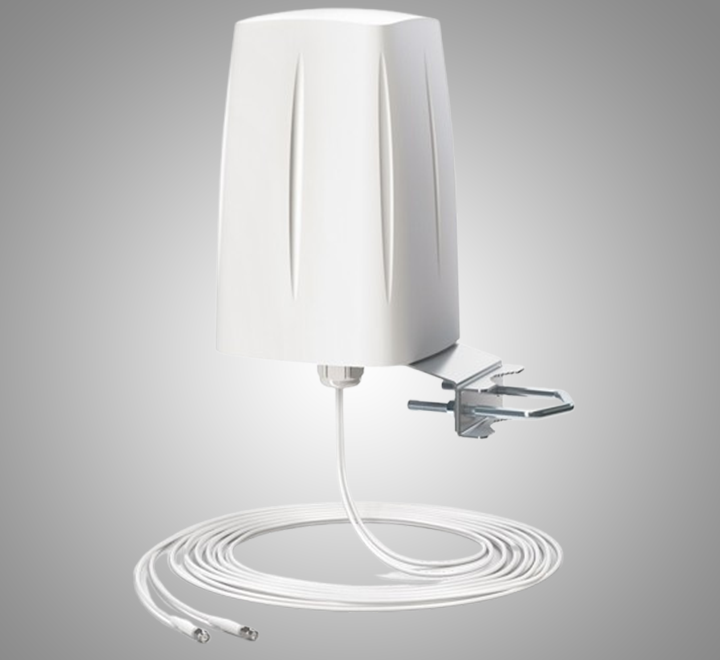

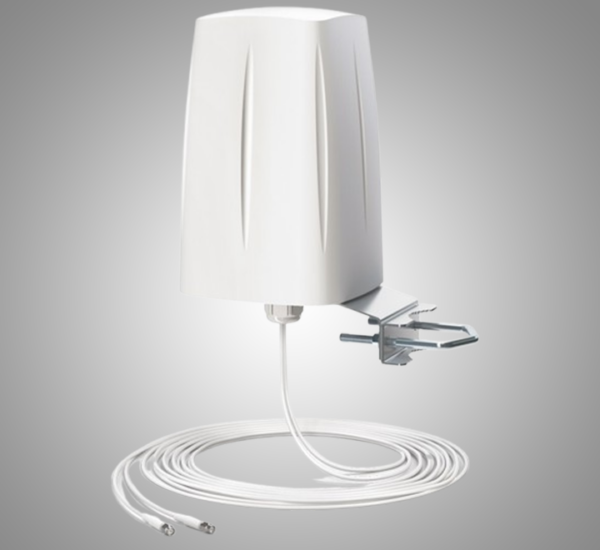

QuOmni LTE omnidirectional MIMO 2×2 LTE antenna is working in Vertical polarization, it´s desired for LTE/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/3G. It’s compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2×2 LTE/3G/2G modems and routers.

SKU: QUOMNI_MIMO2 Category:
Brands

Teltonika

Specification:

LTE ANTENNA SPECIFICATION
Frequency 0.694 – 0.96 GHz
1.7 – 2.2 GHz
2.2 – 2.7 GHz
Supported LTE bands 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85
Gain 0.694 – 0.96 GHz : 2 dBi
1.7 – 2.2 GHz : 2 dBi
2.2 – 2.7 GHz : 4 dBi
VSWR <1.60, max <2.00
Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE
Ingress protection IP67
Dimensions 160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight 1.5 kg
3.31 lbs
Wires length 5 meters
Operating temperature From -40°C to 75°C
From -40°F to 167°F
