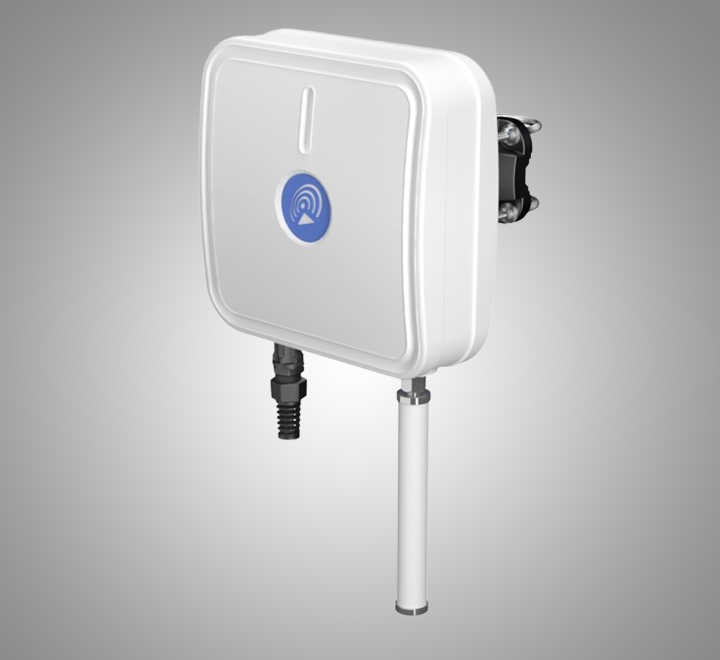

QuWireless QuMax for Teltonika RUT2xx (QUMAX_RUT2XX)

Teltonika
Add to wishlist
Compare

Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 (All-in-one)

$111.01

Compare

Features:

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded outdoor Wi-Fi omni antennas.

NOTE: For RUT230 one LTE antenna is unplugged.

SKU: QUMAX_RUT2XX Category:
Brands

Teltonika

Specification:

LTE SPECIFICATION
FREQUENCY:
0.694-0.96 GHz
1.7 – 2.2 GHz
2.2 – 2.7 GHz

GAIN:
4 dBi
5 dBi
6 dBi

VSWR:
<1.50, max <2.00
<1.30, max <1.60
<1.30, max <1.60

BEAMWIDTH:
90°/90° +/- 30°
90°/90° +/- 30°
90°/90° +/- 30°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

WI-FI SPECIFICATION
FREQUENCY:
2.40-2.50 GHz
4.70 – 6.00 GHz

GAIN:
6 dBi
7 dBi

VSWR:
<1.70, max <2.00
<1.70, max <2.00

BEAMWIDTH
360°/25° +/- 5°
360°/25° +/- 5°

POLARIZATION: Vertical
IMPEDANCE: 50 Ω

MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE, Fiberglass
INGRESS PROTECTION: IP67
DIMENSIONS: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch)
WEIGHT: 1.8 kg (3.97 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
