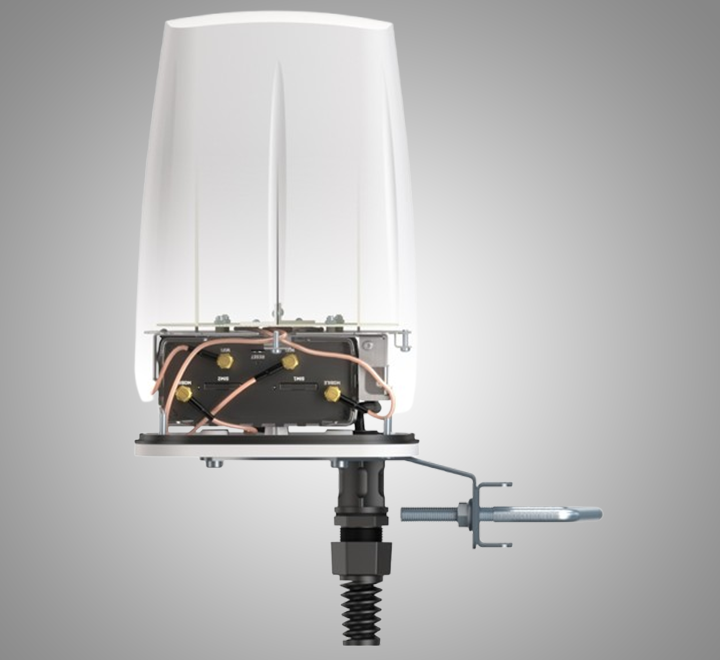

QuWireless QuSpot for Teltonika RUT2xx (QUSPOT_RUT2XX)
Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 (All-in-one)
$95.97
CompareFeatures:
QuSpot omni LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antenna. If you use RUT260, RUT241, RUT240, RUT230 or RUT200 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
NOTE: For RUT230 one LTE antenna is unplugged.
| Brands | Teltonika |
|---|
Specification:
LTE SPECIFICATION
FREQUENCY:
0.694-0.96 GHz
1.7 – 2.2 GHz
2.2 – 2.7 GHz
GAIN:
2 dBi
2 dBi
4 dBi
VSWR:
<1.70, max <2.00
<1.60, max <2.00
<1.60, max <2.00
BEAMWIDTH:
360°/35° +/- 5°
360°/35° +/- 5°
360°/35° +/- 5°
POLARIZATION: Vertical
IMPEDANCE: 50 Ω
WI-FI SPECIFICATION
FREQUENCY:
2.40-2.50 GHz
4.70 – 6.00 GHz
GAIN:
6 dBi
7 dBi
VSWR:
<1.70, max <2.00
<1.70, max <2.00
BEAMWIDTH:
360°/25° +/- 5°
360°/25° +/- 5°
POLARIZATION: Vertical
IMPEDANCE: 50 Ω
MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE
INGRESS PROTECTION: IP67
DIMENSIONS: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
WEIGHT: 1.5 kg (3.31 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
