QuWireless QuSpot for Teltonika RUTX11 (QUSPOT_RUTX11)
Integrated multi-band LTE omni antenna + WiFi omni antenna + GPS antenna + Bluetooth antenna + place to install Teltonika RUTX11 (All-in-one)
$125.19
CompareFeatures:

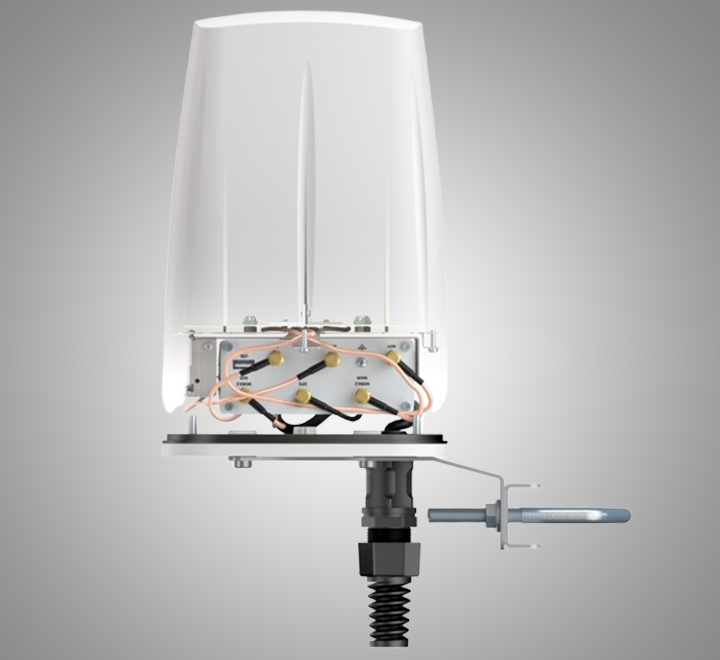

QuSpot omni LTE antenna for Teltonika RUTX11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna, GPS antenna and Bluetooth antenna. If you use RUTX11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
| Brands | Teltonika |
|---|
Specification:
LTE SPECIFICATION
FREQUENCY:
0.694-0.96 GHz
1.7 – 2.2 GHz 2.2 – 2.7 GHz
GAIN:
2 dBi
2 dBi
4 dBi
VSWR:
<1.70, max <2.00
<1.60, max <2.00
<1.60, max <2.00
BEAMWIDTH:
360°/35° +/- 5°
360°/35° +/- 5°
360°/35° +/- 5°
POLARIZATION: Vertical
IMPEDANCE: 50 Ω
WI-FI SPECIFICATION
FREQUENCY:
2.40-2.50 GHz
4.70 – 6.00 GHz
GAIN:
6 dBi
7 dBi
VSWR:
<1.70, max <2.00
<1.70, max <2.00
BEAMWIDTH:
360°/25° +/- 5°
360°/25° +/- 5°
POLARIZATION: Vertical
IMPEDANCE: 50 Ω
MECHANICAL SPECIFICATION
MATERIALS: ABS, aluminum, PTFE
INGRESS PROTECTION: IP67
DIMENSIONS: 160 x 160 x 240 mm (6.3 x 6.3 x 9.45 inch)
WEIGHT: 1.5 kg (3.31 lbs)
OPERATING TEMPERATURE: From -40°C to 75°C (From -40°F to 167°F)
