Features:
Compatible with TSW200 switch.
| Brands | Teltonika |
|---|
| GENERAL | |
| Input voltage | 100 – 240 VAC |
| Input frequency | 50/60 Hz |
| Input current | 3.9 A |
| Input connector | EU (Type F) |
| Output voltage | 54 V |
| Output current | 4.62 A |
| Output connector | 2-PIN, with cord end terminals |
| Weight | 1080 g |
| ADDITIONAL | |
| Input voltage absolute maximum rating | 90 – 262 VAC |
| Input frequency absolute maximum rating | 47 – 63 Hz |
| Maximum input inrush current | 60 A |
| Output voltage absolute maximum rating | 51.3 – 56.7 VDC |
| Short circuit protection | ✓ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 1500 VAC |
| Certification | Safety: IEC62368-1 (CB Scheme) EMC: EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010, EN 61000-4-11:2004 |
Based on 0 reviews

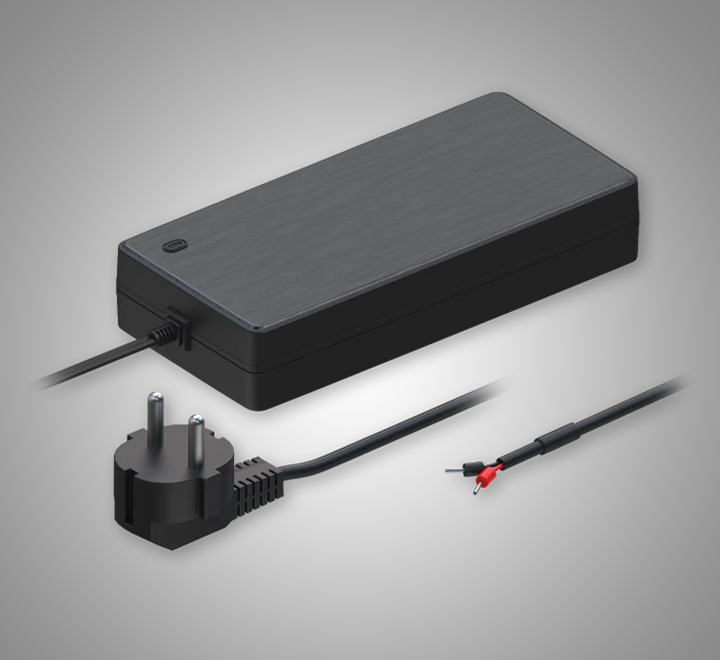

Be the first to review “TELTONIKA 2-PIN 250W Power Supply, EU type (PR320EUA)”
