Module

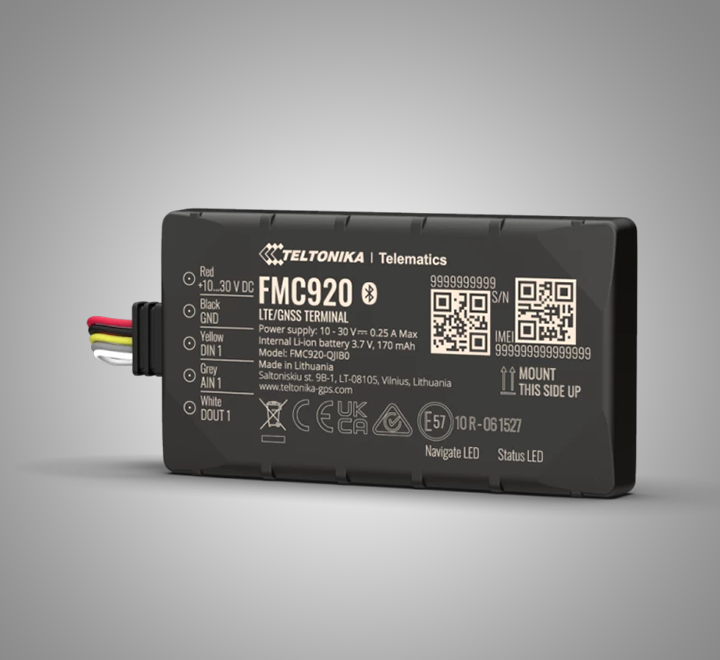

Name: FMC920-QJIB0: Quectel EG915U-EU with Teltonika TM2500
Technology: LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / BLUETOOTH

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 tracking channel, 99 acquisition channel
Tracking sensitivity: -165 dBM
Position Accuracy: < 2.5 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: LTE Cat 1, GSM
2G bands:GSM: B2/B3/B5/B8
4G LTE bands: LTE FDD: B1/B3/B7/B8/B20/B28
Data transfer:
LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)
Data support: SMS (text/data)

Power
Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse: 3A, 125V
Power consumption:
At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 3 mA (Deep Sleep)
At 12V < 8 mA (Online Sleep)
At 12V < 12 mA (GPS Sleep)
At 12V < 28 mA (nominal)

Bluetooth®
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Operating environment
Operating temperature (with battery): -20 °C to +40 °C
Operating temperature (without battery): -40 °C to +85 °C
Storage temperature (without battery): -40 °C to +85 °C
Storage temperature (with battery): -20 °C to +60 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP54
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage temperature:
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months

Interface
Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: Internal High Gain
Cellular antenna: Internal GSM High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM
Memory: 128MB internal flash memory

Physical specification
Dimensions: 79 x 43 x 12 mm (L x W x H)
Weight: 54 g

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Fuel monitoring: LLS (Analog), OBDII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certification & approvals
Regulatory: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH
