Features
Compatible with RUT200, RUT240, RUT241, RUT300, RUT950, RUT951, RUT955, RUT956, TRB140, TRB141, TRB142, TRB145, TSW100 routers and switches
.
.
.
.
.
.
.
.
.
.
.
.
Features
Compatible with RUT200, RUT240, RUT241, RUT300, RUT950, RUT951, RUT955, RUT956, TRB140, TRB141, TRB142, TRB145, TSW100 routers and switches
Brands | Teltonika |
---|

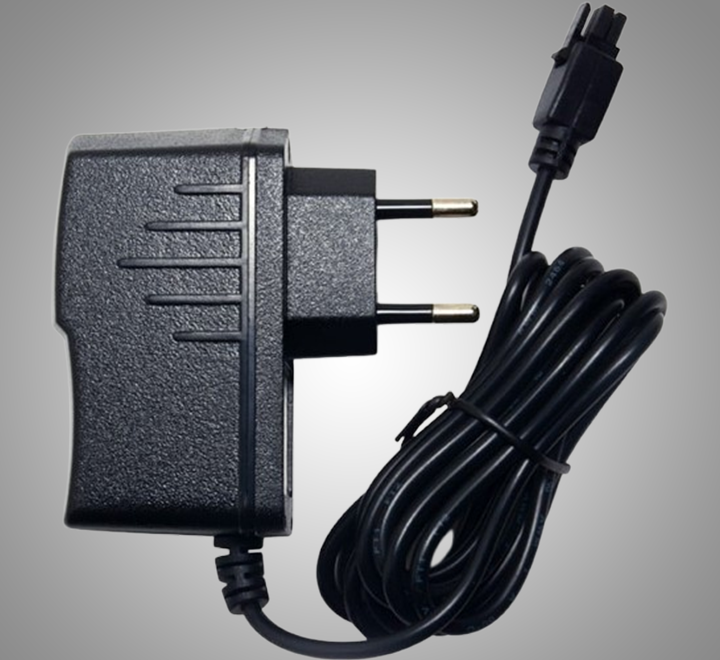

Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz
Input current: 0.45 A
Input connector: EU (Type C)
Output voltage: 9 VDC
Output current: 1.0 A
Output connector: 4-pin, 3 mm pitch
Weight: 79 g
Additional:
Input voltage range: 90 – 264 VAC
Input frequency range: 47 – 63 Hz
Maximum input inrush current: 60 A
Output voltage maximum deviation: 8.55 – 9.45 VDC
Short circuit protection: Yes
HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
MTBF: 30000 h
PSU efficiency standard: DoE Level VI
Certification:
Safety: IEC 62368-1:2014/A11:2017 (CB Scheme)
EMC: EN 55032:2015, EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004, EN 61347-1:2015, EN 61347-2-13:2014/A1:2017, EN 62493:2015
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX09 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna.
QuSpot omni LTE antenna for Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc.It has embedded GPS antenna. If you use RUTX09 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
RUTX14 is the fastest single modem LTE router in Teltonika’s portfolio.
5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, USB interfaces, dual SIM for advanced throughput and ultra-reliable connectivity.
Equipped with advanced security features like multiple VPN’s, firewall & cyber attack prevention.
Combination of fast LTE CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.
SKU:RUTX14
There are no reviews yet.
