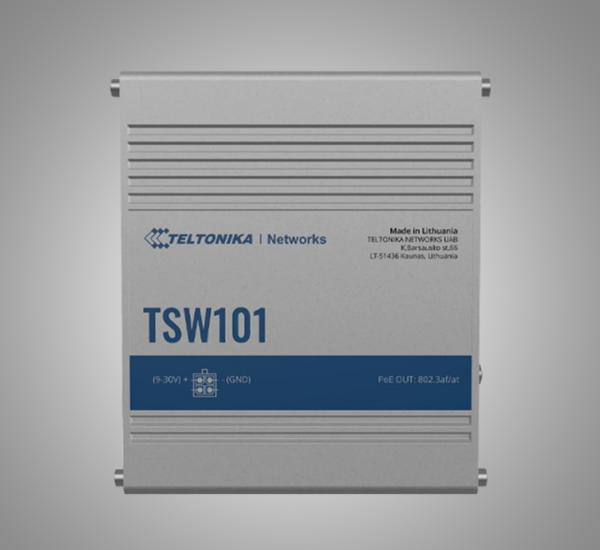

TELTONIKA 5 Gigabit LAN ports Automotive PoE+ Unmanaged Switch (TSW101)

Specification:

Ethernet
ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT
PoE ports: Port 1- 4
PoE standards: 802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE): 30 W
Total PoE Power Budget (at PSE): 60 W
Maximum Ethernet cable length: 100 m

Performance Specifications
Bandwidth (Non-blocking): 10 Gbps
Packer buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes

Power
Connector: 2-pin industrial DC power socket
Input voltage range: 9 – 30 VDC
PoE-out input voltage range: 9 – 30 VDC
Power consumption: Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
PSU: 12 V or 24 V car battery-powered. No additional PSU is required.

Physical Interfaces
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x ETH status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw

Physical Specification
Casing material: Aluminium housing
Dimensions (W x H x D): 115 x 32 x 95 mm
Weight: 384 g
Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement

Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals
Regulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, RCM, E-Mark

EMC Emissions & Immunity
Standards:
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD: EN 61000-4-2:2009
Radiated Immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Surge immunity (AC Power Line): EN 61000-4-5:2014 + A1:2017
CS: EN 61000-4-6:2014

Safety
Standards:
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
