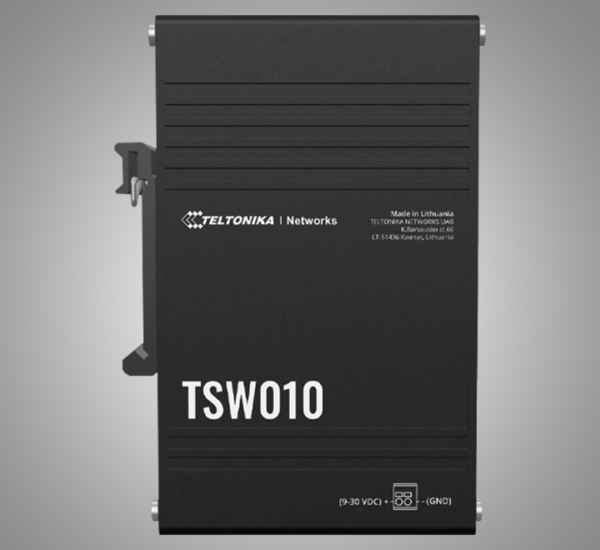

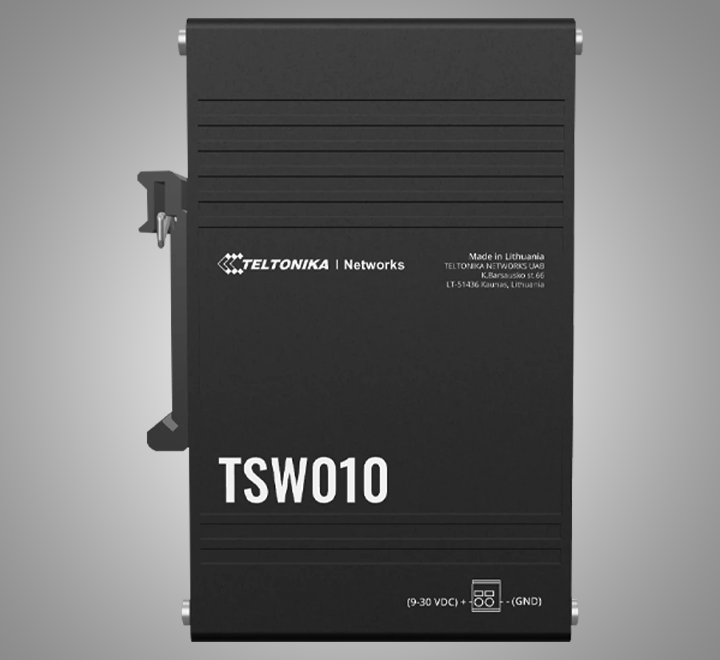

TELTONIKA 5 LAN ports 10/100 Mbps Industrial DIN rail unmanaged switch (TSW010)

Specification:

Ethernet
LAN:  5 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover

Performance Specifications
Bandwidth (Non-blocking): 1 Gbps
MAC address table size: 2K entries
Jumbo frame support: 2048 bytes

Power
Connector: 2-pin industrial DC power socket
Input voltage range: 9-30 VDC
PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC
Power consumption: Idle: 0.3 W / Max: 0.9 W

Physical Interfaces (Ports, LEDs, Buttons, SIM)
Ethernet: 5 x RJ45 ports, 10/100 Mbps
Status LEDs: 1 x Power LED, 10 x LAN status LEDs
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw

Physical Specification:
Casing material: Aluminum housing
Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
Weight: 146.5 g
Mounting options: DIN rail or wall mounting (additional kit needed), flat surface placement

Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals
Regulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Safety
Standards: EN IEC 62368-1:2020+A11:2020
