Specification:

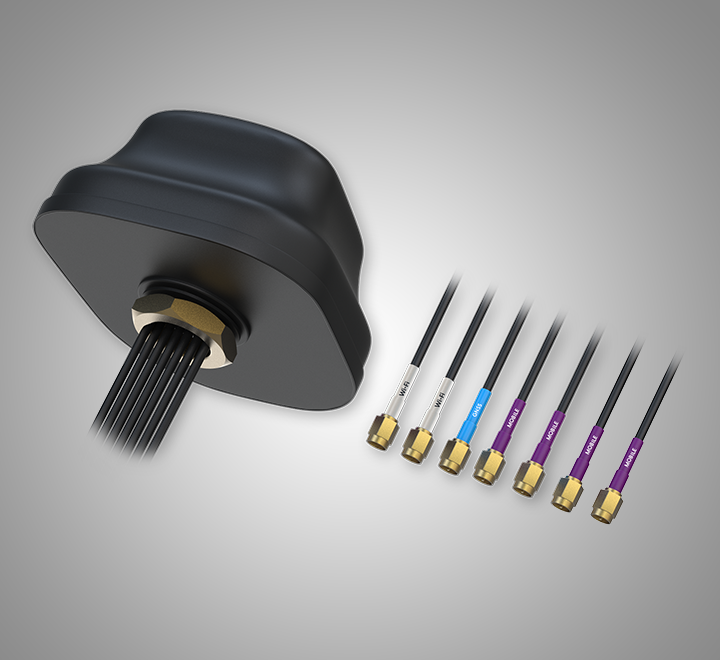

5G MOBILE MIMO ANTENNA
Frequency Range: 617 – 960 / 1710 – 2690 / 2900 – 4200 MHz
Polarization: Linear
Gain: 4.0 dBi
V.S.W.R: ≤3.0
Impedance: 50 Ω
Connector type and count: 4x SMA Male

GNSS ANTENNA
Frequency range: 1164 – 1300 / 1559 – 1610 MHz
Polarization: RHCP
Supply voltage: 3 – 12 VDC
LNA Gain: 40 ± 2 dB
V.S.W.R: ≤2.0
Impedance: 50 Ω
Current Consumption: ≤60 mA
Connector type and count: SMA Male

WIFI MIMO ANTENNA
Frequency range: 2400 – 2483.5 / 4900 – 5925 MHz
Polarization: Linear
Gain: 4.0 dBi
V.S.W.R: ≤2.5
Impedance: 50 Ω
Connector type and count: 2x RP SMA Male

MECHANICAL/ENVIRONMENTAL
Mounting method: Screw
Radome ingress projection rating: IP67 (exclude cable outlet)
Radome material: UV-Resistant ABS/PC
Weight: 960 ± 30 g
Housing dimensions: 189 x 182 x 85 mm
Cable: 7 x LMR100, 3000 mm
Recomended mounting dimensions: Hole ø28 mm, panel thickness MAX 8 mm
Operating temperature: -40 °C – +85 °C
RoHS Compliant: Yes
