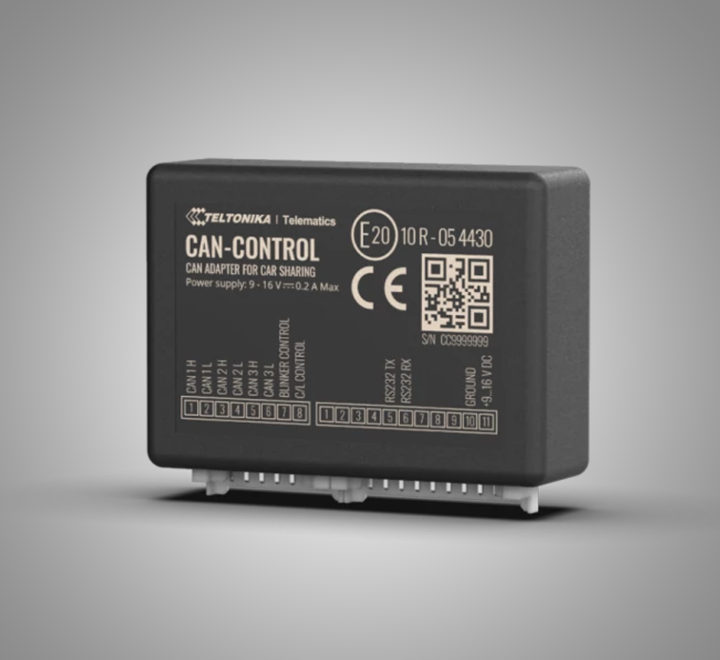

Supported by: FMB1YX, FM36YX, FMB64X series
Input voltage range: 9 – 16 V DC
Power consumption:
At 12V < 23,6 mA (Standby)
At 12V < 23,5 mA (Working)
Operating temperature range: -40°C to +85°C
Operating humidity: Max 85 % non-condensing
LED indication: 1 status LED light
Features:*
Central lock control
Windows closure
Turn lights control
Trunk release
Door status
Lock status
Handbrake status
Lights status
Vehicle range
Vehicle driven distance
Total fuel consumption
Fuel level (dashboard)
Engine speed (RPM)
Vehicle speed
For electric cars:
Battery level
Charging status
Charging cable status
Vehicle range on battery
*Data and control functions are available depending on vehicle’s equipment, model, type and manufacture year.
Dimensions: 51 x 36 x 16 mm (L x W x H)

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 tracking channel, 99 acquisition channel
Tracking sensitivity: -165 dBM
Position Accuracy: < 2.5 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: LTE Cat 1, GSM
2G bands:GSM: B2/B3/B5/B8
4G LTE bands: LTE FDD: B1/B3/B7/B8/B20/B28
Data transfer:
LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 85.6 Mbps (DL)/Max 85.6 Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/ Max 85.6Kbps (UL)
Data support: SMS (text/data)

Power
Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse: 3A, 125V
Power consumption:
At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 3 mA (Deep Sleep)
At 12V < 8 mA (Online Sleep)
At 12V < 12 mA (GPS Sleep)
At 12V < 28 mA (nominal)

Bluetooth®
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support

Operating environment
Operating temperature (with battery): -20 °C to +40 °C
Operating temperature (without battery): -40 °C to +85 °C
Storage temperature (without battery): -40 °C to +85 °C
Storage temperature (with battery): -20 °C to +60 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP54
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage temperature:
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months

Interface
Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: Internal High Gain
Cellular antenna: Internal GSM High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM
Memory: 128MB internal flash memory

Physical specification
Dimensions: 79 x 43 x 12 mm (L x W x H)
Weight: 54 g

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Fuel monitoring: LLS (Analog), OBDII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certification & approvals
Regulatory: CE/RED, E-Mark, CITC, TRA, RCM, RoHS, REACH
