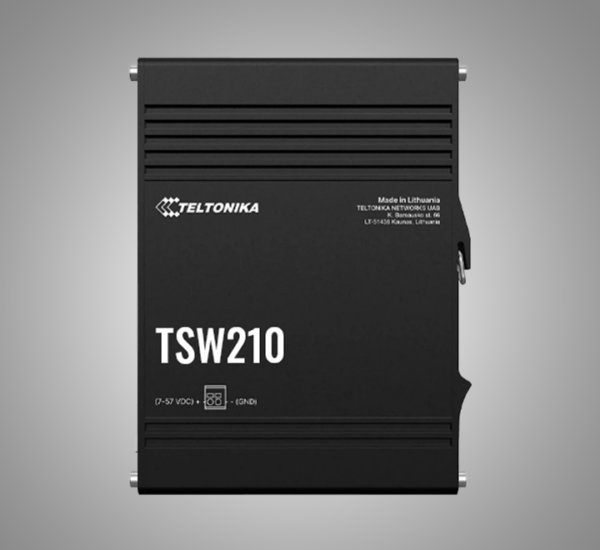

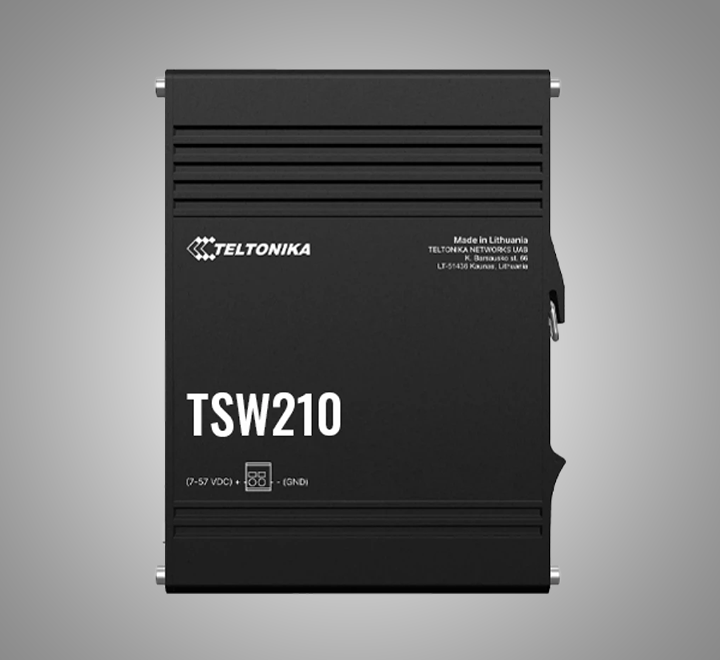

TELTONIKA Industrial 8 Gigabit LAN ports 2 SPF ports unmanaged switch (TSW210)
8x Gigabit LAN ports | 2x SFP ports | 2 pin industrial DC power socket (no PSU included) | Full aluminum housing | DIN rail or wall mounting (additional kit needed), flat surface placement
$84.70
CompareFeatures:
The TSW210 is an industrial unmanaged switch for centralizing your resources
Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed
Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings
2-pin industrial DC power socket with an input voltage range of 7-57 VDC
| Brands | Teltonika |
|---|
Specification:
| INTERFACES | |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover 2 x SFP ports |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| POWER | |
| Connector | 2 pin industrial DC power socket |
| Input voltage range | 7-57 VDC |
| Power consumption | Idle: ~1.03 W / Max: 3.71 W |
| PHYSICAL INTERFACES (PORTS, LEDS) | |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fiber | 2 x SFP ports |
| Status LED’s | 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s |
| Power | 1 x 2 pin industrial DC power socket |
| Ground | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 500 g |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to +75 °C |
| Operating humidity | 10 % to 90 % non condensing |
| Ingress Protection Rating | IP30 |
