Features:

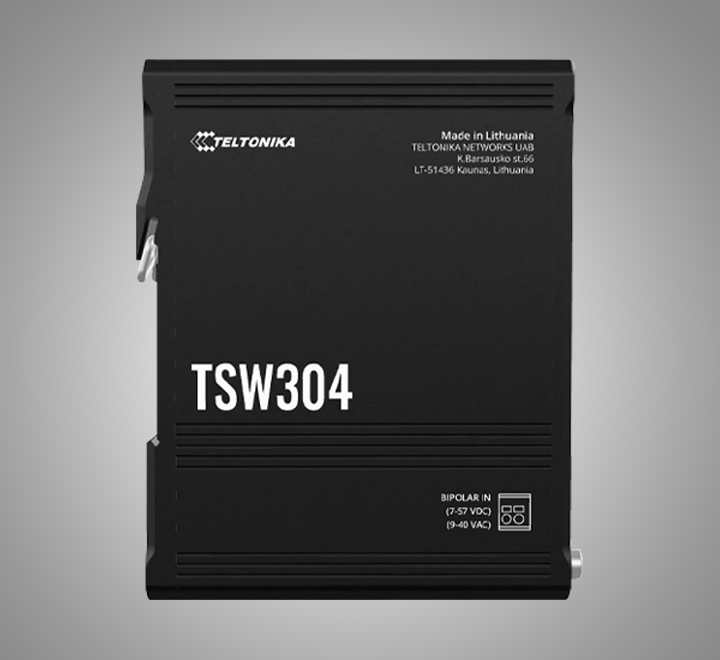

TSW304 is Teltonika Networks’ first unmanaged switch with an integrated, built-in DIN rail mount.
Equipped with four Gigabit Ethernet ports supporting the IEEE 802.3, IEEE 802.3u, and 802.3az Ethernet standards.
Designed with easy installation in mind, the TSW304 features a compact size with a shock-resistant casing to go along with its integrated DIN mount.
10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions to provide reliable data throughput.
2-pin industrial power socket and wide range of supported power supply voltages (7-57 VDC and 9-40 VAC).
Specification:
Ethernet
LAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Performance Specifications
Bandwidth (Non-blocking): 8 Gbps
Packer buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes
Power
Connector: 2-pin industrial DC power socket
Input voltage range: 7 – 57 VDC; 9 – 40 VAC
PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC
Power consumption: Idle: 0.26 W / Max: 1.44 W
Physical Interfaces (Ports, LEDs, Buttons, SIM):
Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED,8 x LAN status LED’s 2 x SFP status LED’s
Power: 1 x 2-pin industrial DC power socket
Other: 1 x Grounding screw
Physical Specification
Casing material: Aluminum housing
Dimensions (W x H x D): 102 x 25 x 81.5 mm
Weight: 210 g
Mounting options: DIN rail or wall mounting
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
Regulatory & Type Approvals
Regulatory: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Safety
Standards: EN IEC 62368-1:2020+A11:2020
