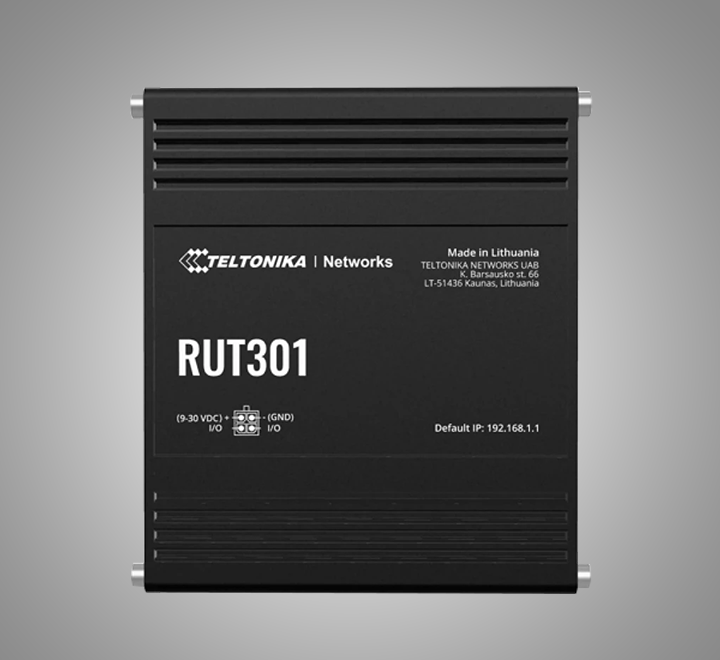

TELTONIKA Industrial Ethernet Router (RUT301)

Specification:

Ethernet
WAN:    1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN:    4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network
Routing:    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols:    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support:    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring:    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall:    Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page:    View all your Firewall statistics, rules, and rule counters
Ports management:    View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology:    Visual representation of your network, showing which devices are connected to which other devices
DHCP:    Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM):    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS:    Supported >25 service providers, others can be configured manually
DNS over HTTPS:    DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup:    VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing:    Balance Internet traffic over multiple WAN connections
Hotspot:    Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS:    Possibility to mount remote file system via SSH protocol
Traffic Management:    Real-time monitoring, wireless signal charts, traffic usage history

Security
Authentication:    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall:    Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention:    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN:    Port and tag-based VLAN separation
WEB filter:    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control:    Flexible access control of SSH, Web interface, CLI and Telnet
SSL certificate generation:    Let’s Encrypt and SCEP certificate generation methods
802.1x:    Port-based network access control server

VPN
OpenVPN:    Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption:    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec:     XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE:    GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP:    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel:    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN:    Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP:    SSTP client instance support
ZeroTier:    ZeroTier VPN client support
WireGuard:    WireGuard VPN client and server support
Tinc:    Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

OPC UA
Supported modes:    Client, Server
Supported connection types:    TCP

MODBUS
Supported modes:    Server, Client
Supported connection types:    TCP, USB
Custom registers:    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats:    8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server
Protocol:     HTTP(S), MQTT, Azure MQTT
Data to server:    Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

MQTT Gateway
Modbus MQTT Gateway:    Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3
Supported modes:    Station, Outstation
Supported connection:    TCP, USB

DLMS
DLMS Support:    DLMS – standard protocol for utility meter data exchange
Supported modes:    Client
Supported connection types:    TCP, USB

API
Teltonika Networks Web API (beta) support:     Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management
WEB UI:    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA:    Firmware update from server, automatic notification
SSH:    SSH (v1, v2)
TR-069:    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT:    MQTT Broker, MQTT publisher
SNMP:    SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC:    Management API over HTTP/HTTPS
RMS:    Teltonika Remote Management System (RMS)

IoT Platforms
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System Characteristics
CPU:    Mediatek, 580 MHz, MIPS 24KEc
RAM:    128 MB, DDR2
FLASH storage:    16 MB serial NOR flash

Firmware / Configuration
WEB UI:    Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA:    Update FW
RMS:    Update FW/configuration for multiple devices at once
Keep settings:    Update FW without losing current configuration
Factory settings reset:    A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

Firmware customisation
Operating system:    RutOS (OpenWrt based Linux OS)
Supported languages:    Busybox shell, Lua, C, C++
Development tools:    SDK package with build environment provided
GPL customization:    You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager:    The Package Manager is a service used to install additional software on the device

USB
Data rate:    USB 2.0
Applications:    Samba share, USB-to-serial
External devices:    Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats:    FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output
Input:    Up to 2 x Configurable digital Inputs (shared), 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
Output:    Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
Events:    Email, RMS
I/O juggler:    Allows to set certain I/O conditions to initiate event

Power
Connector:    4-pin industrial DC power socket
Input voltage range:    9 – 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive):    Passive PoE (Optional – different hardware required; contact your sales manager)
Power consumption:    Idle: < 0.8 W, Max: < 3.8 W

Physical Interfaces
Ethernet:    5 x RJ45 ports, 10/100 Mbps
I/O’s:    2 x Configurable I/O pins on 4-pin power connector
Status LEDs:    1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED
Power:    1 x 4-pin power connector
USB:    1 x USB A port for external devices
Reset:    Reboot/User default reset/Factory reset button

Physical Specification
Casing material:    Aluminium housing
Dimensions (W x H x D):    100 x 30 x 85 mm
Weight:    233 g
Mounting options:    DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment
Operating temperature:    -40 °C to 75 °C
Operating humidity:    10% to 90% non-condensing
Ingress Protection Rating:    IP30

Regulatory & Type Approvals
Regulatory:    Giteki, RoHS, REACH, CE, FCC, IC, RCM, CB

EMC Emissions & Immunity
Standards:
EN 55032: 2015+A11:2020+A1:2020
EN 61000-3-3: 2013+ A1:2019+A2:2021
EN IEC 61000-3-2: 2019+A1:2021
EN 55035: 2017+A11:2020
ESD:    EN 61000-4-2:2009
Radiated Immunity:    EN IEC 61000-4-3:2020
EFT:    EN 61000-4-4: 2012
Surge Immunity (AC Mains Power Port):    EN 61000-4-5: 2014+A1: 2017
CS:    EN 61000-4-6:2014
DIP:    EN IEC 61000-4-11:2020

Safety
Standards:
RCM: AS/NZS 62368.1:2018
CB: IEC 62368-1:2018

Safety (Ordinary Locations)
Standards
CB: IEC 62368-1:2018
