Features:

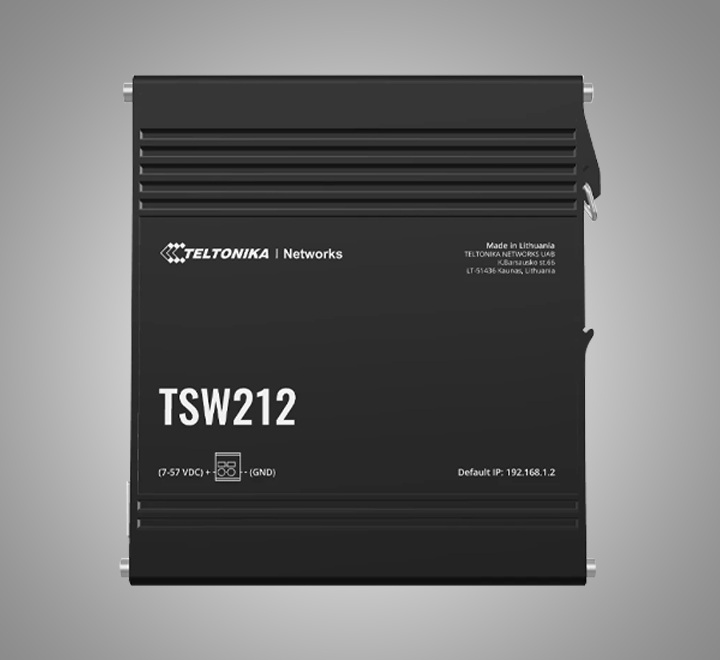

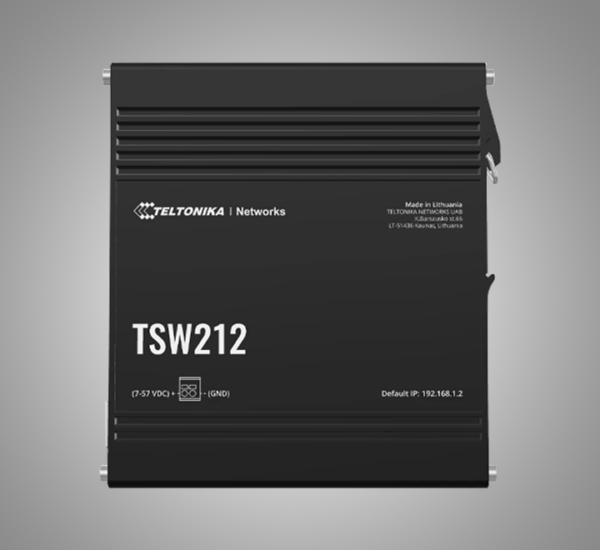

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations – all with effortless installation thanks to an integrated DIN rail mount.
MANAGED SWITCH
L2 with additional L3 features for advanced management capabilities
PROFINET & MORE
Supports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP
ETHERNET & SFP
8 x Gigabit Ethernet ports and 2 x SFP ports for fibre optic communication
TSWOS
Teltonika Networks OS for switches, intuitively designed for infinite configurations
| Brands | Teltonika |
|---|
Specification:
Ethernet
ETH: Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre: 2 x SFP ports
IEEE 802.3 series standards: IEEE 802.1p, IEEE 802.1Q, 802.3az
Services
EtherNet/IP: Yes
Profinet (class B): Yes
SNMP V2, V3: Yes
LLDP: Yes
Network
MRP: MRP client role, MRP manager role
L2 features: Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP: DHCP server, DHCP client
Port Settings: Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QoS
QOS: Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method: SP/WFQ/WRR
Bandwidth control: Rate limiting, storm control
Traffic Shaper: Port-based shaping
Diagnostics
Tools: Cable diagnostic, ping, traceroute, nslookup
System Characteristics
RAM: 128MB, DDR3
FLASH storage: 16 MB serial flash
Firmware / Configuration
WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW
RMS: Update FW/configuration for multiple devices at once
Keep settings: Update FW without losing current configuration
Firmware customisation
Operating system: TSWOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided
Performance Specifications
Bandwidth (Non-blocking): 20 Gbps
Packet buffer: 512 KB
MAC address table size: 8K entries
Jumbo frame support: 10000 bytes
Power
Connector: 2-pin industrial DC power socket
Input voltage range: 7 – 57 VDC
Power consumption: Idle: < 2.5 W / Max: 6 W
Physical Interfaces
Ethernet: 8 x RJ45 ports, 10/100/1000 Mbps
Fibre: 2 x SFP ports
Status LEDs: 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power: 1 x 2-pin industrial DC power socket
Reset: Software reset button
Other: 1 x Grounding screw
Physical Specification
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 132 x 44.2 x 122.2 mm
Weight: 615 g
Mounting options: Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
Regulatory & Type Approvals
Regulatory: CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH
EMC Emissions & Immunity
Standards:
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
ESD: EN 61000-4-2:2009
Radiated Immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
CS: EN 61000-4-6:2014
DIP: EN 61000-4-11:2020
Safety
Standards:
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
