Features:

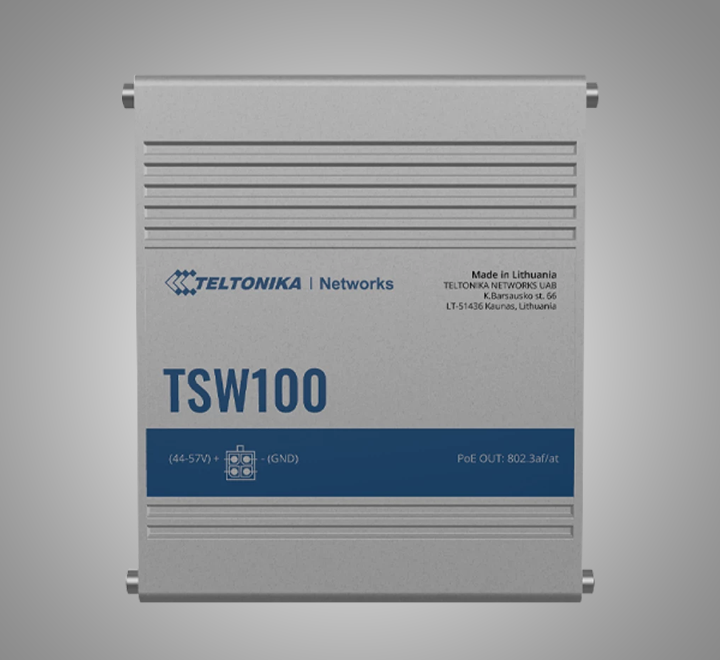

TSW100 – 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
Specification:
ETHERNET |
LAN |
5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
POE |
PoE ports |
Port 1- 4 |
PoE standards |
802.3af and 802.3at |
PoE Max Power per Port (at PSE) |
30 W |
Total PoE Power Budget (at PSE) |
120 W |
PERFORMANCE SPECIFICATIONS |
Bandwidth (Non-blocking) |
10 Gbps |
Packet buffer |
128 KB |
Jumbo frame support |
9216 bytes |
MAC address table size |
2K entries |
POWER |
Connector |
4 pin industrial DC power socket |
Input voltage range |
7-58 VDC |
Power consumption (idle/max no PoE/max) |
2 W/9 W/129 W |
PHYSICAL INTERFACES (PORTS, LEDS) |
Ethernet |
5 x RJ45 ports, 10/100/1000 Mbps |
Status LED’s |
1 x Power LED, 10 x LAN status LED’s |
Power |
1 x 4 pin DC connector |
Ground |
1 x Grounding screw |
PHYSICAL SPECIFICATION |
Casing material |
Full aluminum housing |
Dimensions (W x H x D) |
115 x 32 x 95 mm |
Mounting |
DIN rail or wall mounting (additional kit needed), flat surface placement |
OPERATING ENVIRONMENT |
Operating temperature |
-40 °C to +75 °C |
Operating humidity |
10 % to 90 % non condensing |
Standard package contains
- TSW100
- 60 W Euro PSU
- QSG (Quick Start Guide)
- Packaging box
