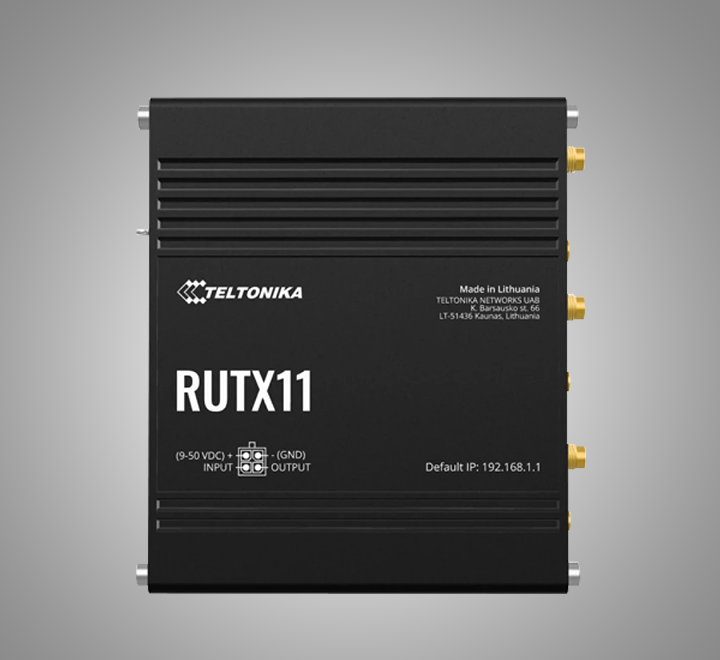

TELTONIKA LTE Cat6 Industrial Cellular Router (RUTX11)

Specification:

MOBILE

Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
SIM switch (planed): 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Black/White list: Operator black/white list
Multiple PDN (planed): Possibility to use different PDNs for multiple network access and services
Band management: Band lock, Used band status display

WIRELESS

Wireless mode: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID: ESSID stealth mode

ETHERNET

WAN: 1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
BLUETOOTH
Bluetooth LE: Bluetooth low energy (LE) for short range communication

NETWORK

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP, MQTT
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forwards, traffic rules, custom rules
DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
QoS: Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually
Network backup: VRRP (planed), Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover
Load balancing: Balance your Internet traffic over multiple WAN connections
SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port based and tag based VLAN separation
Mobile quota control: Set up custom data limits for both SIM cards
WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnel
PPTP, L2TP: Client/Server services can run simultaneously
Stunnel (planed): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs

MONITORING & MANAGEMENT

WEB UI: HTTP, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 (planed): OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
SNMP: SNMP (v1, v2, v3), SNMP trap
JSON-RPC: Management API over HTTP/HTTPS
Modbus (planed): Modbus TCP status/control, master and slave modes
MQTT: MQTT Broker, MQTT publisher
RMS: Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

CPU: Quad-core ARM Cortex A7, 717 MHz
RAM: 256 MB, DDR3
FLASH memory: 256 MB SPI Flash

FIRMWARE / CONFIGURATION

WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW/configuration from server
RMS: Update FW/configuration for multiple devices
Keep settings: Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided (planed)

LOCATION TRACKING

GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA: NMEA 0183
Server software: Supported server software: TAVL, RMS
Mobile Network Geolocation: Get approximate device location on RMS based on mobile cell tower position (without using GPS)
Geofencing: Configurable multiple geofence zones

USB

Data rate: USB 2.0
Applications: Samba share (planed), custom scripts (planed)
External devices: Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats: FAT, FAT32, NTFS

INPUT/OUTPUT

Input: 1 x Digital Input
Output: 1 x Digital Output
Events: SMS, Email, RMS

POWER

Connector: 4 pin industrial DC power socket
Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
Power consumption: 11 W Max

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
I/Os: 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs: 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders
Power: 4 pin DC connector
Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
USB: USB A port for external devices
Reset: Factory reset button

PHYSICAL SPECIFICATION

Casing material: Full aluminium housing
Dimensions: 115 mm x 95 mm x 44 mm (H x W x D)
Weight: 456 g
Mounting options: DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature: -40 C to 75 C
Operating humidity: 10 % to 90 % non-condensing
Ingress Protection Rating: IP30
