Features:

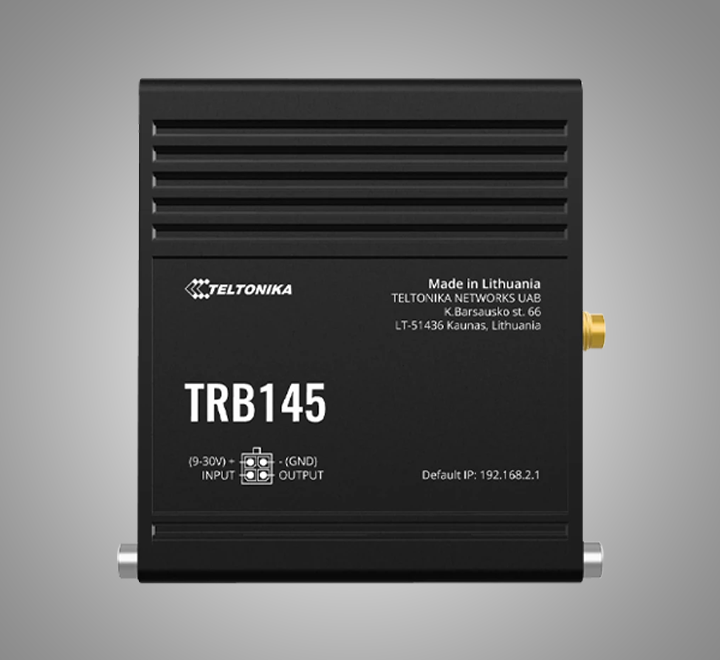

Industrial LTE Cat 1 Gateway Board TRB145 is equipped with RS485 Interface, Digital Inputs/Outputs and micro-USB port. TRB145 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over RS485 interface. TRB145 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.
| Brands | Teltonika |
|---|
Specification:
| MOBILE | |
| Mobile module | 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
| SMS/Call | SMS status, SMS configuration, Call utilities |
| NETWORK | |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT |
| Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget |
| Routing | Static routing |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation |
| DDNS | Supported >25 service providers, others can be configured manually |
| SECURITY | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec | IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server services can run simultaneously |
| MONITORING & MANAGEMENT | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
| FOTA | Firmware update from sever, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration |
| MQTT | MQTT Broker, MQTT publisher |
| JSON-RPC | Management API over HTTP/HTTPS |
| Modbus | Modbus TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| SYSTEM CHARACTERISTICS | |
| CPU | ARM Cortex-A7 1.2 GHz CPU |
| RAM | 128 MB (50 MB available for userspace) |
| FLASH memory | 512 MB (70 MB available for userspace) |
| FIRMWARE / CONFIGURATION | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
| FOTA | Update FW/configuration from server |
| RMS | Update FW/configuration for multiple devices |
| Keep settings | Update FW without losing current configuration |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenLinux based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| INPUT/OUTPUT | |
| Configurable I/O | 2 x Digital Inputs/Outputs |
| Events | SMS status |
| POWER | |
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max |
| Power consumption | < 5 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM) | |
| RS485 | RS485 interface, Full Duplex (4 wires) and Half Duplex (2 wires), baud rate 300-115200 |
| I/Os | 2 Inputs/Outputs pin on 4 pin power connector |
| USB | Virtual network interface via USB |
| Status LEDs | 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 4 pin power connector with 2 x configurable Digital Inputs/Outputs |
| Anntenas | 1 x SMA for LTE |
| Reset | Restore factory settings button |
| PHYSICAL SPECIFICATIONS | |
| Casing material | Aluminum housing |
| Dimensions | 60 mm x 70 mm x 18 mm (H x W x D) |
| Weight | 130 g |
| Mounting options | Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE/RED, EAC, RoHS, WEEE |
| EMI | |
| Standards | Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
| ESD | EN 61000-4-2:2009 |
| RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
| EFT | EN 61000-4-4:2012 |
| Surge protection | EN 61000-4-5:2014 |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 |
| RF | |
| Standards | EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
| SAFETY | |
| Standards | IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |
