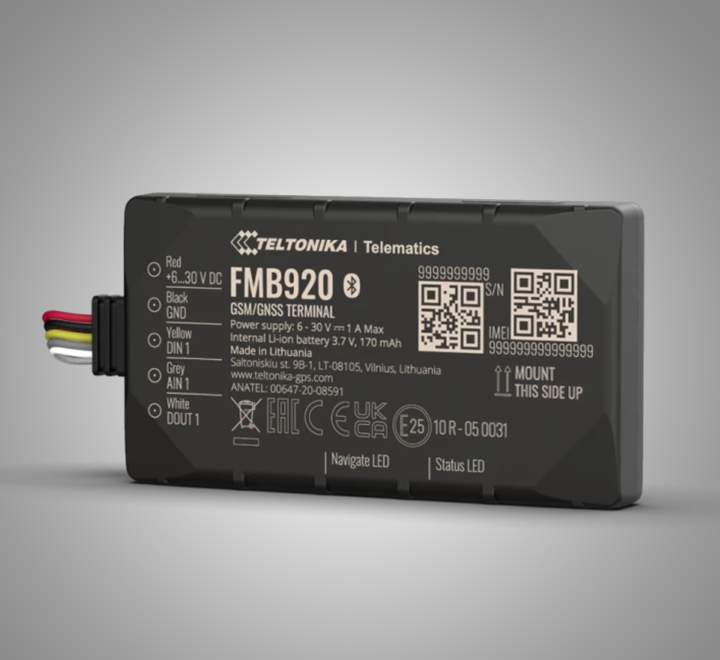

TELTONIKA Small and smart tracker with Bluetooth and internal backup battery (FMB920)

Specification:

Module
Name: TM2500
Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channel
Tracking sensitivity: -165 dBM
Accuracy: < 3 m
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: GSM
2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support: SMS (text/data)

Power
Input voltage range: 6 – 30 V DC with overvoltage protection
Back-up battery: 170 mAh Li-Ion battery (0.63 Wh)

Power consumption:
At 12V < 2 mA (Ultra Deep Sleep)
At 12V < 4 mA (Deep Sleep)
At 12V < 5 mA (Online Sleep)
At 12V < 6 mA (GPS Sleep)
At 12V < 25 mA (nominal)

Bluetooth
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

Interface
Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: Internal High Gain
GSM antenna: Internal High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM
Memory: 128MB internal flash memory

Physical specification
Dimensions: 79 x 43 x 12 mm (L x W x H)
Weight: 54 g

Operating environment
Operating temperature (without battery): -40 °C to +85 °C
Storage temperature (without battery): -40 °C to +85 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP54
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature:
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
