-4%
NanoBeam

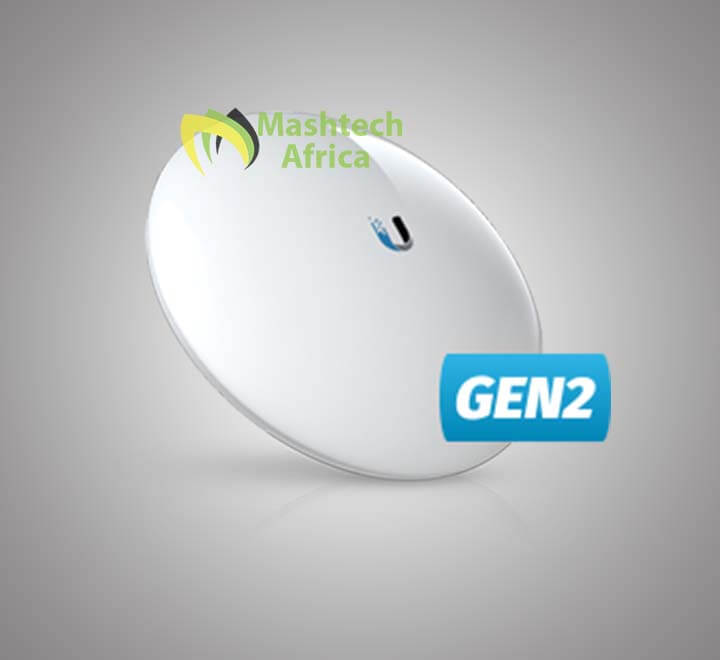

Ubiquiti airMAX NanoBeam AC 5GHz Bridge NBE-5AC-GEN2
Availability:
9 in stock
- High-Performance airMAX® ac Bridge
- Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
SKU: NBE-5AC-GEN2
$89.48 $93.54
9 in stock
Compare-
NanoBeam
Ubiquiti airMAX NanoBeam AC 5GHz Bridge NBE-5AC-GEN2
- High-Performance airMAX® ac Bridge
- Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
SKU: NBE-5AC-GEN2
SKU: NBE-5AC-GEN2 -
LiteBeam
Ubiquiti airMAX LiteBeam AC Gen2 LBE-5AC-GEN2
- 2×2 MIMO airMAX® ac CPE
- The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
- Ultra-lightweight design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup. This Ubiquiti LiteBeam AC Gen2 LBE-5AC-GEN2 CPE features adjustment flexibility in three axes for versatile mounting options.The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the Ubiquiti 5ghz airMAX AC Litebeam Gen2 Radio blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
SKU: LBE-5AC-GEN2
SKU: LBE-5AC-GEN2 -
LiteBeam
Ubiquiti airMAX Litebeam LBE-5AC-LR
- 2×2 MIMO airMAX® ac CPE
- The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
- Designed for long-range applications, the Ubiquiti airMAX Litebeam LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).
- Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management. Improved Noise Immunity The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The LiteBeam 5AC Gen 2 offers quick and easy alignment and enhanced protection against power surges.
SKU: LBE-5AC-LR
SKU: LBE-5AC-LR
$254.59 for 3 item(s)
Product Details
High-Performance airMAX ac Bridge
The Ubiquiti NanoBeam AC Gen 2 is a compact 5GHz airMAX CPE. Armed with Ubiquiti’s airMax AC technology, the NBE-5AC-Gen2 can support throughput of up to 450+Mbps and offers a range of up to 15+km. This model boasts an improved wide bandwidth antenna for improved noise immunity and better performance in high-noise environments.
The NanoBeam AC Gen 2 features the highest gain for its size. The excellent beam directivity provides the best performance in high-noise environments. Ubiquiti’s airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Simple, Powerful Management
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device with the UNMS App. The NBE-5AC-GEN2 runs airOS 8 which provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Network operators can also use Ubiquiti’s Network Management System (UNMS) to configure, monitor, upgrade, and back up their entire networks, from their core routers to clients’ APs.
Ubiquiti Nanobeam AC Gen2 Key Features
- Frequency 5 GHz
- Throughput 450+ Mbps
- Range 15+ km
- Gain 19dBi
- Improved Wide Bandwidth Antenna
- Dedicated Wi-Fi Radio for Management
- airMAX ac Processor for Superior Performance
Check out more info about NanoBeam NBE-5AC-GEN2
| Brands | Ubiquiti Networks |
|---|
Product Specifications
System
| Storage Type | FLASH |
| LEDs | Power, Signal Strength and Power |
| Operating System | AirOS |
| Storage | 16 MB |
| Processor Speed | 720 MHz |
| Memory Type | DDR2 |
| Processor Architecture | MIPS 74 Kc |
| Memory | 128 MB |
Networking
| 10/100/1000 PoE Out | 1 |
| 10/100/1000 PoE In | 1 |
Wireless
| Channel Width | 40, 20, 10, 60 and 80 MHz |
| Gain | 19 and 19 dBi |
| Frequency Min 2 | 2412 MHz |
| Frequency Max | 5875 MHz |
| Wireless Standards | airMax AC |
| Band | 5 GHz |
| Radios | 5GHz, 2.4GHz Management, 2.4GHz Management and 5GHz |
| Frequency Min | 5150 MHz |
| Frequency Max 2 | 2472 MHz |
| Polarisation | Dual-Linear |
| VSWR | 1.5:1 |
Power Input
| Power Method | Power over Ethernet |
| PoE Pins | 4/5+,7/8- |
| PoE Max | 24 V |
| 24 V | |
| PoE Ports | 1 |
| PoE Type | Passive |
Environmental
| Operating Humidity Min | 5 % RH |
| Operating Temperature | -40 to 80 °c |
| Wind Loading | 45.4 N @ 200 km/h N @ Km‾h |
| Wind Survial | 200 Km‾h |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Humidity Max | 95 % RH |
| Operating Humidity Type | Noncondensing |
Physical
| Mounting | Pole and Wall |
| Dimensions | 189 x 189 x 125 mm |
| Weight | 530 g |
| 530 g | |
| Case Material | Outdoor UV Stabilised Plastic |
Compliance
| Certifications | MIL-STD-810 G Method 506.5, CE, IC, ETS 300 019-1-4, FCC, IEC 68-2-6, IEC 68-2-11, MIL-STD-810 G Method 509.5, IEC 68-2-14 and IEC 68-2-5 at 40& C |
| RoHS | Yes |
Model Comparison
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Frequency | 2.4 GHz | 5 GHz | 5 GHz | 5 GHz | 5 Ghz |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 450+ Mbps | 450+ Mbps |
| Range | 15+ km | 10+ km | 15+ km | 10+ km | 15+ km |
| Improved Wide Bandwidth Antenna | ✔ | ||||
| Management Radio | ✔ |
