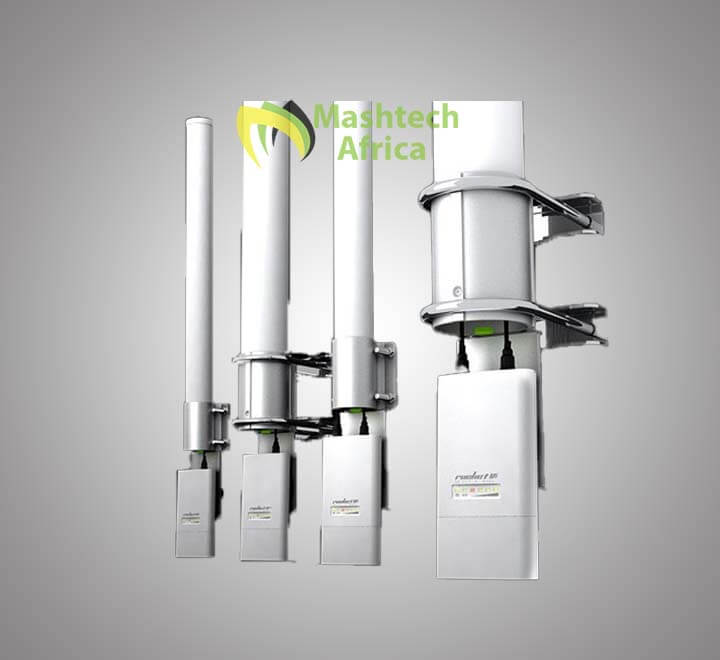

Pair the airMAX® Omni Antenna with a Rocket™M BaseStation for 360° coverage in Point-to-MultiPoint (PtMP) networks.

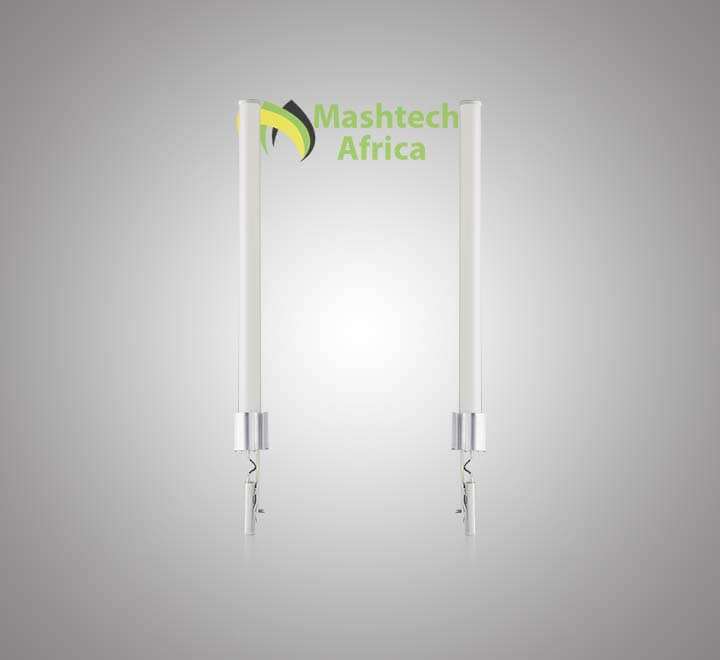

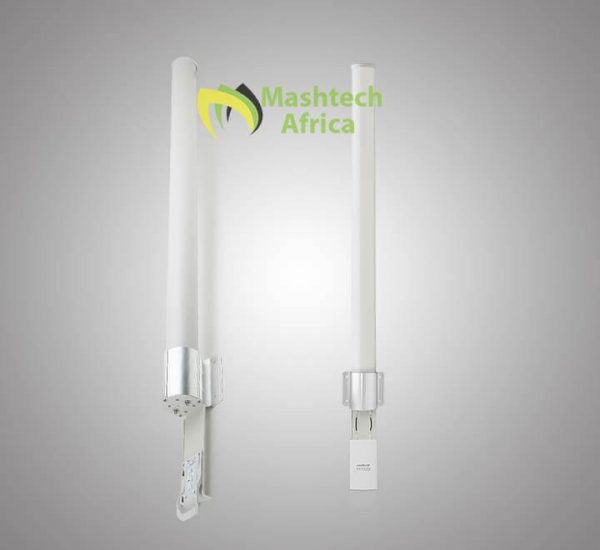

The Ubiquiti Omni Antenna 2.4GHz 13dBi AMO-2G13 is a Carrier Class 2×2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Ubiquiti Rocket M radios (Ubiquiti Rocket M sold separately).
AirMax Omni is a Carrier Class 2×2 Dual Polarity MIMO omnidirectional antenna. Very solidly engineered, it has a built-in mounting for a Rocket M2 to clip onto and comes complete with a pair of connecting pigtails so that the two channels each connect to a separate antenna element inside the same housing for fast throughputs of up to 300 Mbps.
Pole mounting brackets included. Rocket M2 is supplied separately.
Breakthrough 2×2, Dual-Polarity Design
airMAX® Omni Antennas are the first of their kind to feature a patented, dual-polarity Omni design.
Package Contents
2x RF Pigtails
1x Omni Antenna
1x Mounting Kit
Ubiquiti AMO-2G13 Antenna Key Product Features
2×2 MIMO
13dBi Gain
Built-in Rocket M2 Mounting
Frequency – 2.4 GHz
13 dBi gain
Wind Survivability uUbiquiti airMAX Omni Antenna 2.4GHz 13dBi AMO-2G13p to 125 mph
Plug-in and play integration
Ubiquiti Rocket M combines the “brains” in one robust unit; simply pair Ubiquiti Rocket M with a Ubiquiti AirMax Omni to create a powerful 360° omnidirectional base station. This seamless integration gives network architects unparalleled flexibility and convenience.
Ubiquiti Antenna Specifications
Dimensions: 1390 x 122 x 105 mm (54.72 x 4.8 x 4.13″)
Weight: 2.4 kg (5.29 lb)
Frequency Range: 2.35 – 2.55 GHz
Gain: 13 dBi
Elevation Beamwidth: 7°
Max VSWR: 1.7:1
Downtilt: 2°
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 111.2 N @ 200 km/h (25 lbf @ 125 mph)
Polarisation: Dual-Linear
Cross-pol Isolation: 25 dB min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
