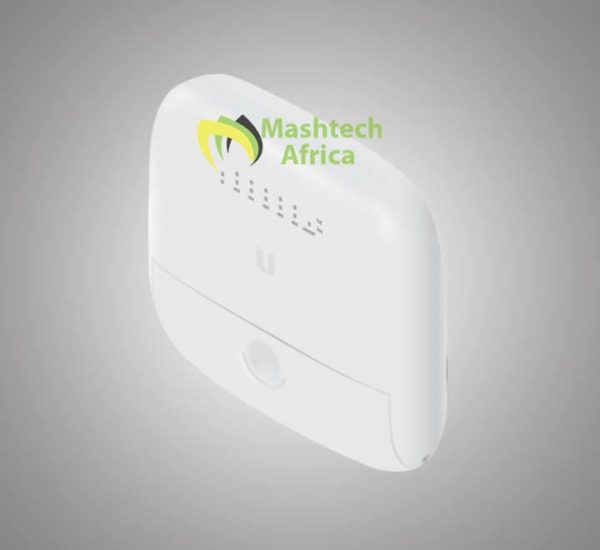

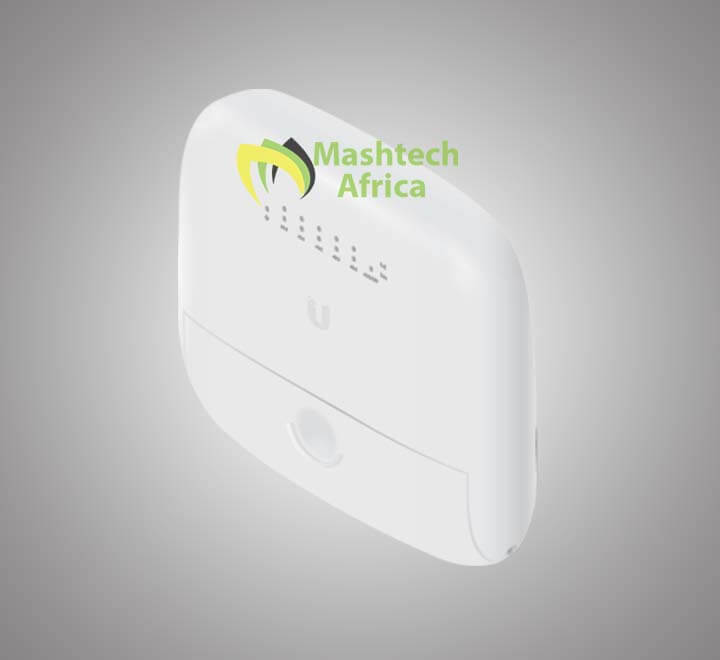

Ubiquiti Edgepoint 6 Port Router EP-R6
8 in stock
- Intelligent WISP Control Point with FiberProtect™
- The EdgePoint™ offers an innovative combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support.
SKU: EP-R6
$146.41 $156.20
8 in stock
CompareUbiquiti Networks introduces the Ubiquiti Edgepoint Router 6 EP-R6, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.
Part of the EdgeMAX platform, the Ubiquiti Networks’ EdgePoint series is the first application-specific designed WISP control point. The EdgePoint EP-R6 combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities. The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI). FiberProtect also greatly improves data signal integrity and consolidates the wired data backhaul to a single fiber cable run for long-distance connectivity.
For the EdgePoint EP-R6, powerful routing features – such as load balancing and failover- provide redundancy and increased performance for outdoor wireless links. Powered by 24VDC or by PoE, the EP-R6 can support 24V passive PoE to power most Ubiquiti products.
The ruggedized case withstands outdoor conditions, including wind, rain, and snow. The included cable sleeve protects the cables and cable opening and can be swapped out for an existing conduit. A single, compact controller efficiently eliminates clutter, expensive cabinets, and excessive maintenance.
The EP-R6 features five RJ45 24V, 0.7A Power over Ethernet ports, and one SFP Ethernet port.
The EdgePoint is available in three models:
- EP-R6 Layer-3 router
- EP-R8 Layer-3 router
- EP-S16 Layer-2 switch with some layer-3 capabilities
View Spec Sheet

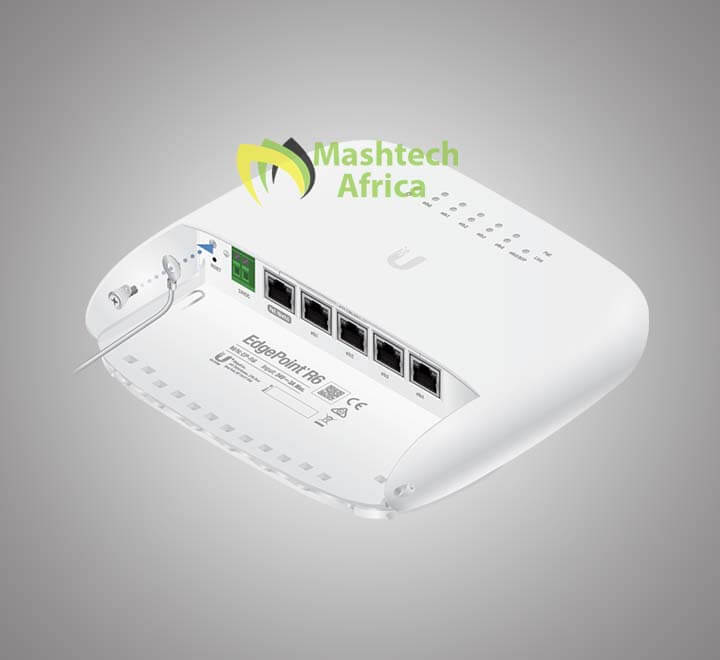

Bottom Panel
Power Options
- 24VDC, 3A Terminal Block
- PoE Input
- (5) 24V, 0.7A Passive PoE Output Ports*
- (1) SFP Port
Breakthrough in Tower Deployment
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
Package Contents
- 1x Mounting Strap
- 1x EU Mains Cable
- 1x PoE Injector
- 1x Ubiquiti EdgePoint Router – 6 Port
- 1x UK Mains Cable
Product Features
- Weatherproof Enclosure for Outdoor Use
- Powerful Routing or Switching Features
- Fiber Backhaul Capability
Check out more info about EP‑R6
Model Comparison
 EP-R6
|
 EP-R8
|
 EP-S16
|
|
|---|---|---|---|
| Function | Router | Router | Switch |
| Gigabit RJ45 Ports | 5 | 6+2* | 16 |
| SFP Ports | 1 | 2* | N/A |
| SFP+ Ports | N/A | N/A | 2 |
| Power Input | (1) DC Terminal Block or (1) 24V, 4-Pair |
(1) DC Terminal Block or (2) 54V, 4-Pair |
(1) DC Terminal Block or (2) 54V, 4-Pair |
| PoE Output | (5) 24V, 2-Pair | (2) 54/24V, 4-Pair (5) 24V, 2-Pair |
(4) 54/24V, 4-Pair (12) 802.3af/at or 24V, 2-Pair |
