NanoBeam

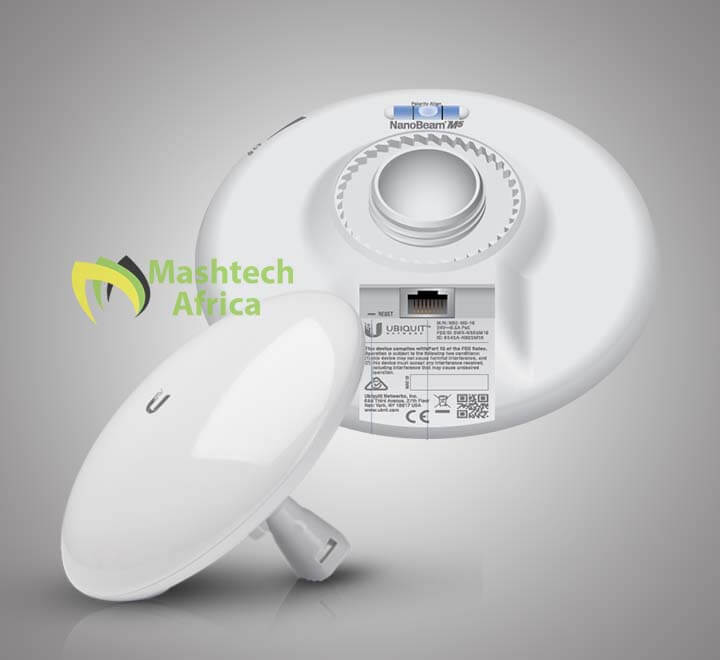

Ubiquiti NanoBeam M5 5GHz 16dBi Radio and Antenna NBE-M5-16
Availability:
9 in stock
- High-Performance airMAX® Bridge
- Incorporating innovative industrial design with advanced technology, the NanoBeam®M is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.

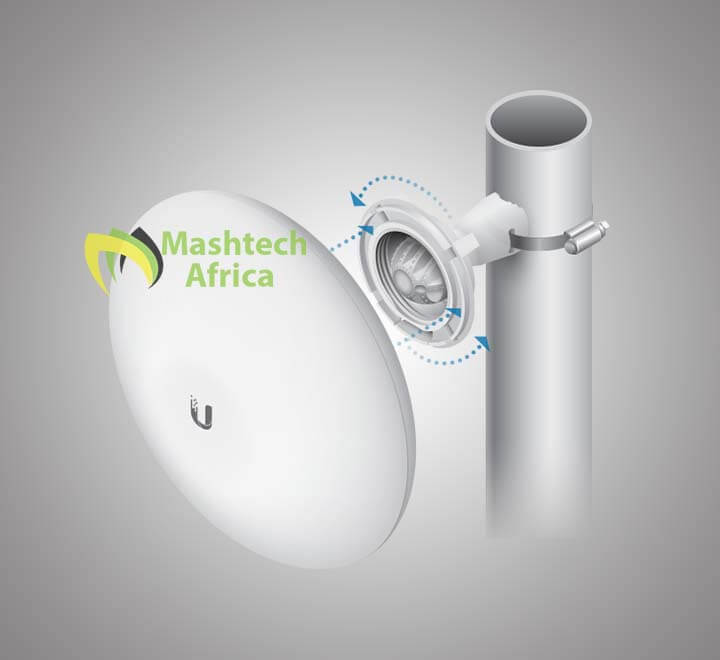

- The new Ubiquiti NanoBeam M5 16dBi has a compact design with uniform beam width, efficient footprint, and a faster processor. The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design. The Ubiquiti NanoBeam directs RF energy into a tighter beamwidth resulting in the focus in one direction so the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
SKU: NBE-M5-16
$69.14
9 in stock
Compare-
NanoBeam
Ubiquiti NanoBeam M5 5GHz 16dBi Radio and Antenna NBE-M5-16
- High-Performance airMAX® Bridge
- Incorporating innovative industrial design with advanced technology, the NanoBeam®M is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
- The new Ubiquiti NanoBeam M5 16dBi has a compact design with uniform beam width, efficient footprint, and a faster processor. The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design. The Ubiquiti NanoBeam directs RF energy into a tighter beamwidth resulting in the focus in one direction so the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
SKU: NBE-M5-16
SKU: NBE-M5-16 -
LiteBeam
Ubiquiti airMAX Litebeam M5 5Ghz 23dBi LBE-M5-23
- Long-Range, Lightweight airMAX® CPE
- The LiteBeam™M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.
- The Ubiquiti Litebeam M5 LBE-M5-23 is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. The Ubiquiti airMAX Litebeam M5 5Ghz 23 dBi Bridge operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
SKU: LBE-M5-23
SKU: LBE-M5-23 -
NanoBeam
Ubiquiti airMAX NanoBeam AC 5GHz Bridge NBE-5AC-GEN2
- High-Performance airMAX® ac Bridge
- Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
SKU: NBE-5AC-GEN2
SKU: NBE-5AC-GEN2
$205.80 for 3 item(s)

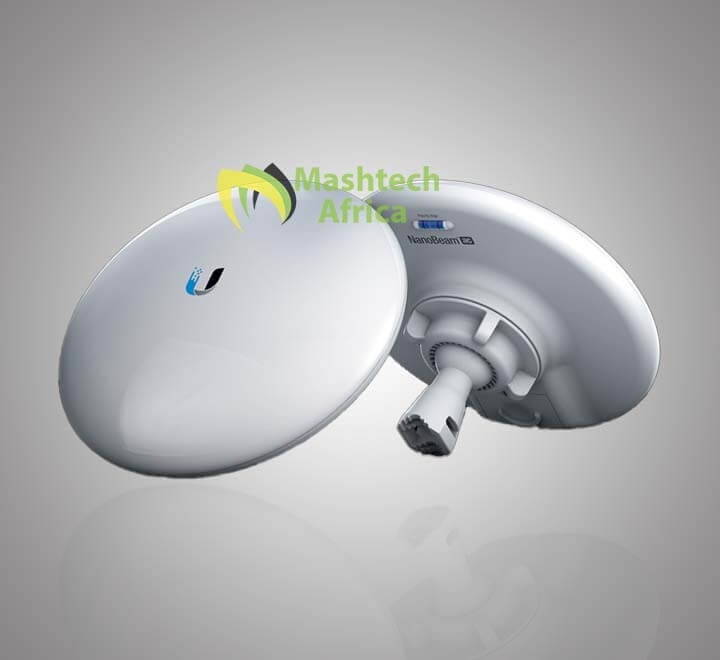

This model of the NanoBeam features the All-in-One Design. The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint. By providing increased performance with its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.
Package Contents
- 1x Lock Ring
- 1x PoE Injector
- 1x Ball Joint Mount
- 1x EU Mains Cable
- 1x Mounting Strap
- 1x Ubiquiti NanoBeam M5 16dBi
- 1x UK Mains Cable
Product Features
- Dual Linear Polarisation
- 560 MHz Processor
- Easy Assembly and Installation
Check out more info about NanoBeam NBE-M5-16
Product Specifications
System
| Extras | Reset Button and Spirit Level |
| LEDs | Power, LAN and WAN |
| Processor Name | Atheros |
| Operating System | AirOS |
| Storage Type | Flash |
| Processor Speed | 560 MHz |
| Storage | 8 MB |
| Processor Cores | 1 |
| Processor Architecture | MIPS 74Kc |
| Memory | 64 MB |
| Memory Type | DDR2 |
Networking
| 10/100 PoE In | 1 |
Wireless
| Channel Width | 30, 20, 40, 8, 5 and 10 MHz |
| Transmit Power | 398 mW |
| VSWR | 1.5:1 |
| Rx Sensitivity | -96 dBm |
| Gain | 16 dBi |
| Antenna Type | Dish |
| Frequency Max | 5850 MHz |
| Band | 5 GHz |
| Wireless Standards | 802.11a/n |
| Frequency Min | 5170 MHz |
Power Input
| PoE Max | 24 V |
| PoE Min | 24 V |
| PoE Ports | 1 |
| PoE Type | Passive |
| PoE Pins | 4/5(+),7/8(-) |
| Power Consumption | 6 W |
| Current Min | 0.5 A |
Physical
| Mounting | Pole |
| Case Material | Plastic |
| Dimensions | 140 x 140 x 54 mm |
| Weight | 320 g |
Environmental
| Operating Humidity Min | 5 % RH |
| Operating Temperature | -40 to 70 °c |
| ESD/EMP Protection | ± 24kV Air / Contact |
| Wind Survial | 200 Km‾h |
| Wind Loading | 21.4N @ 200km/h N @ Km‾h |
| Operating Humidity Type | NonCondensing |
| Operating Humidity Max | 95 % RH |
| UV Resistant | Yes |
Compliance
| RoHS | Yes |
| Certifications | RCM, FCC, IC, and CE |
Model Comparison
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Frequency | 2.4 GHz | 5 GHz | 5 GHz | 5 GHz | 5 Ghz |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 450+ Mbps | 450+ Mbps |
| Range | 15+ km | 10+ km | 15+ km | 10+ km | 15+ km |
| Improved Wide Bandwidth Antenna |  |
||||
| Management Radio | |
