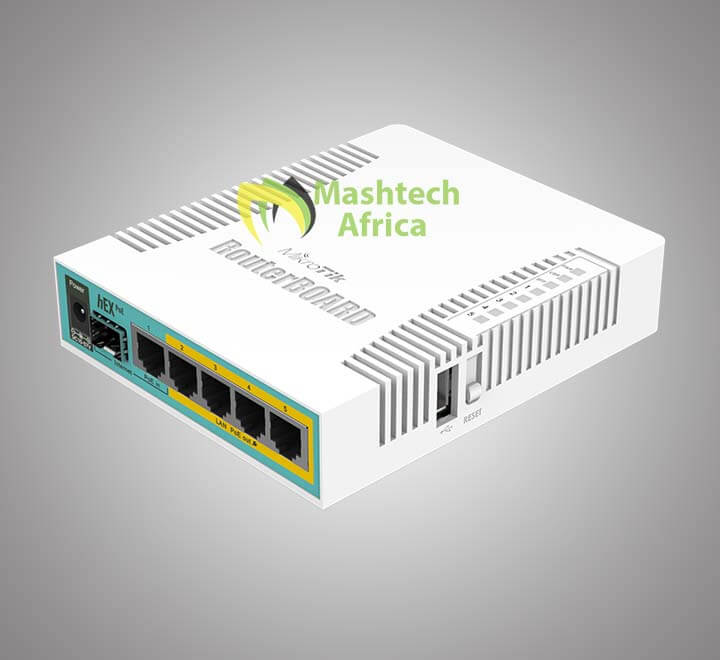

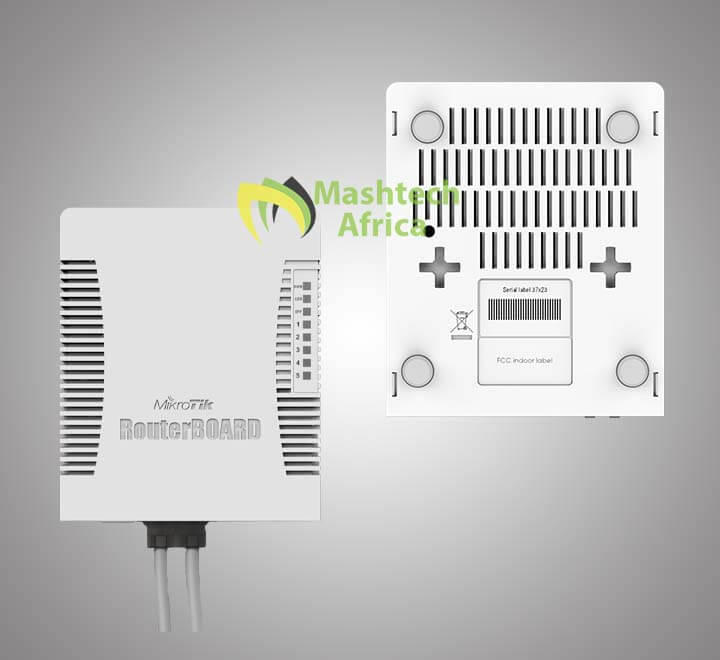

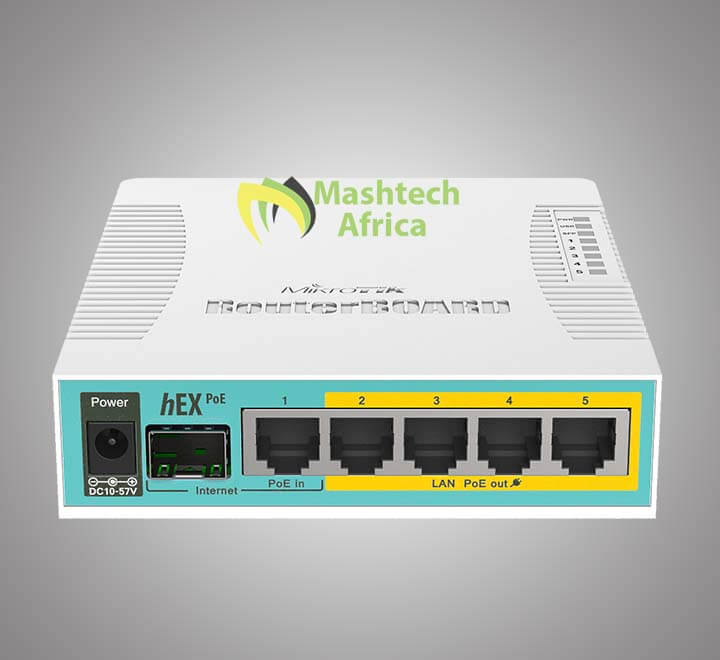

MikroTik hEX PoE RB960PGS
Out of stock
- 5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
- hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fiber connectivity. Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit.
- It is affordable, small, and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Fewer power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
- It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit. Fewer power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices if 48-57 input voltage is used.
SKU: RB960PGS
$77.26 $79.71
Out of stock
Compare-
hEX Routers
MikroTik hEX PoE RB960PGS
- 5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
- hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fiber connectivity. Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit.
- It is affordable, small, and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Fewer power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
- It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit. Fewer power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices if 48-57 input voltage is used.
SKU: RB960PGS
SKU: RB960PGS -
Basebox, Mikrotik Access Points, MikroTik Antennas
Mikrotik Basebox 2 RB912UAG-2HPnD-OUT
- The BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual-band device or a 3G/4G modem.
- The case can be opened with one hand and is protected against the elements. USB, Ethernet, and Grounding wire exits are provided on the bottom, behind a protective door.
- Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
SKU: RB912UAG-2HPnD-OUT
SKU: RB912UAG-2HPnD-OUT -
hEX Routers
Mikrotik hEX PoE Lite RB750UPR2
- 5xEthernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4
- hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.
- Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
- It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.
SKU: RB750UPR2
SKU: RB750UPR2
Specifications
| Details | |
|---|---|
| Product code | RB960PGS |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $79.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 54 W |
| Max power consumption without attachments | 6 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1 A |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
| Brands | MikroTik Wireless |
|---|
