-3%
netPower Switches

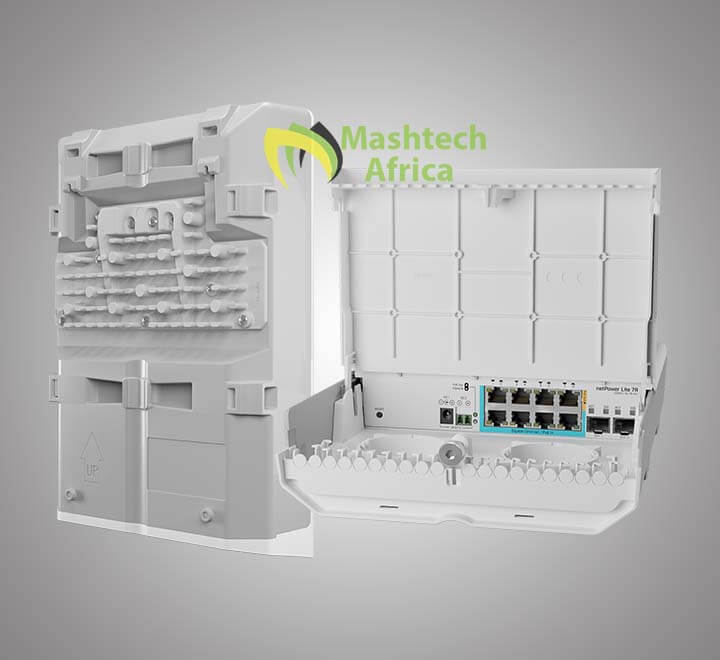

Mikrotik netPower Lite 7R CSS610-1Gi-7R-2S+OUT
Availability:
6 in stock
- An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.
- With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
- With this switch, you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps, and a forwarding rate of 41.7 Mpps.The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.
SKU: CSS610-1Gi-7R-2S+OUT
$126.06 $130.13
6 in stock
Compare-
netPower Switches
Mikrotik netPower Lite 7R CSS610-1Gi-7R-2S+OUT
- An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.
- With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
- With this switch, you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps, and a forwarding rate of 41.7 Mpps.The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.
SKU: CSS610-1Gi-7R-2S+OUT
SKU: CSS610-1Gi-7R-2S+OUT -
SFP
Mikrotik 6-speed RJ-45 module S+RJ10
- 6-speed RJ-45 module for up to 10 Gbps
- This unique module opens up a whole world of high-speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware.
- S+RJ10 module is supported also on devices with passive cooling but may require extra cooling.
- The latest revision of S+RJ10 contains “/r2” by the end of the serial number. It comes with the following improvements:- Jumbo frames up to 10218 Bytes are now supported for rates 2.5Gbps, 5Gbps, and 10Gbps;- Link speed reporting is fixed – actual link speed in the interface menu is listed. Previously 100M/1G/2.5G/5G link speeds were not reported correctly;- DDM monitoring (Supply Voltage, Module temperature) is now supported.
SKU: S+RJ10
SKU: S+RJ10 -
QSFP
Mikrotik QSFP+ cable Q+DA0001
- 40 Gbps direct attach QSFP+ cable
- Connect two CRS326-24S+2Q+RM switches without a hassle – this cable has integrated QSFP+ modules, plug it in and enjoy the speed! The cable is 1 meter long and is fairly flexible – your devices don’t have to be on top of each other.
SKU: Q+DA0001
SKU: Q+DA0001
$126.06 for 3 item(s)
Specifications
| Details | |
|---|---|
| Product code | CSS610-1Gi-7R-2S+OUT |
| Dimensions | 304 x 212 x 71 mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $129.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (PoE-IN, DC jack, 2-pin terminal) |
| DC jack input Voltage | 12-57 V |
| 2-pin terminal input Voltage | 12-57 V |
| Max power consumption | 29 W |
| Max power consumption without attachments | 7 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 450 mA |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP54 |
Included parts
| Brands | MikroTik Wireless |
|---|
Based on 0 reviews
Be the first to review “Mikrotik netPower Lite 7R CSS610-1Gi-7R-2S+OUT”
Related products
-
Cloud Router Switches
Mikrotik Cloud Router Switch CRS328-24P-4S+RM
- 24 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, Dual Boot and PoE output, 500W
- The Mikrotik Cloudrouter Switch CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
- IT comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving a guaranteed 450 W (3×150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
- The device has a “Dual boot” feature that allows you to choose between two operating systems – RouterOS or SwOS.
SKU: CRS328-24P-4S+RM
SKU: CRS328-24P-4S+RM -
Cloud Core Router
Mikrotik Cloud Core Router CCR1072-1G-8S+
- 1U rackmount
- 1x Gigabit Ethernet
- 8xSFP+ cages
- LCD, 72 cores x 1GHz CPU
- 16GB RAM
- up to 120 million packets per second
- 80Gbps throughput, RouterOS L6
The Mikrotik Cloudcore Router CCR1072-1G-8S+ comes equipped with installed RouterOS L6, 16GB of built-in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, micro USB, regular size USB, microSD, and 2x M.2 slots for additional storage.
Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.
SKU: CCR1072-1G-8S+
SKU: CCR1072-1G-8S+ -
netPower Switches

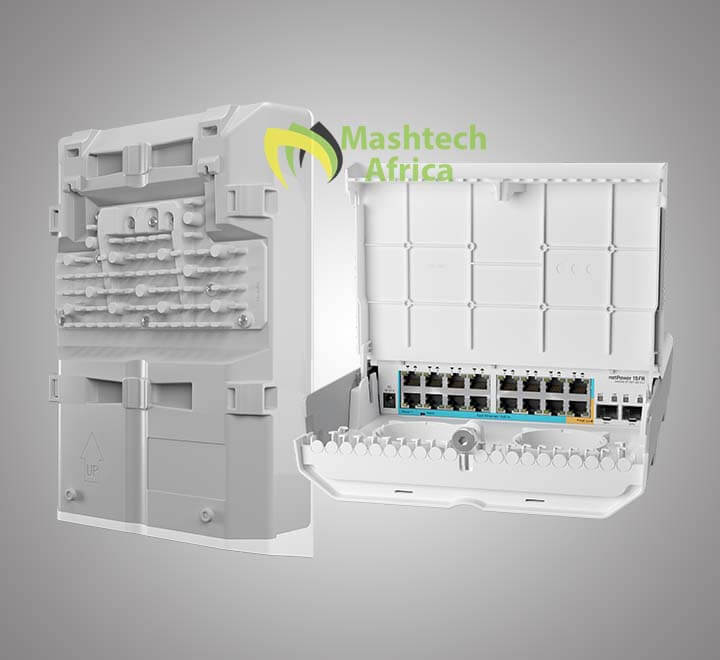

Mikrotik netPower 15FR CRS318-1Fi-15Fr-2S-OUT
