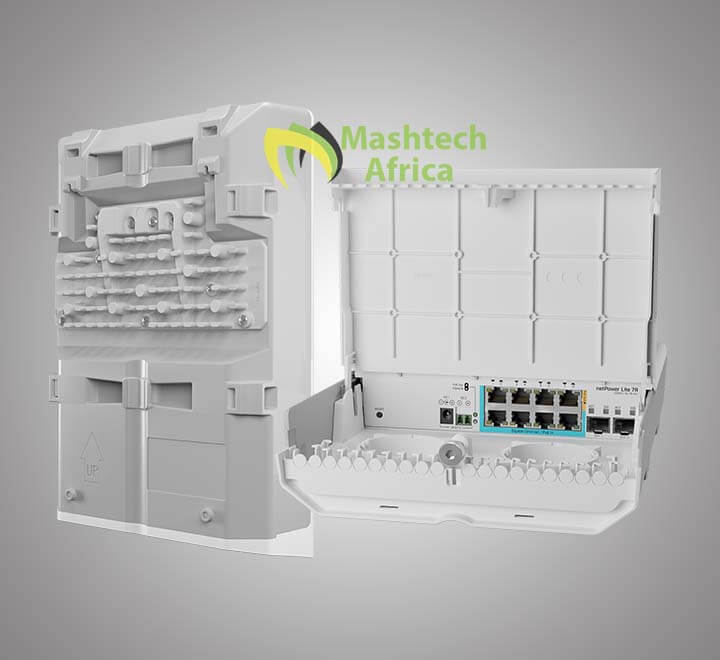

Mikrotik netPower Lite 7R CSS610-1Gi-7R-2S+OUT

MikroTik Wireless
Availability:

6 in stock


  • An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.
  • With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
  • With this switch, you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps, and a forwarding rate of 41.7 Mpps.The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.

SKU: CSS610-1Gi-7R-2S+OUT



KSh 15,499.00 KSh 16,000.00

6 in stock

KSh 15,499.00 for 3 item(s)

Specifications

Details
Product code CSS610-1Gi-7R-2S+OUT
Dimensions 304 x 212 x 71 mm
Operating System SwitchOS Lite
Storage size 64 KB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $129.00

Powering

Details
Number of DC inputs 3 (PoE-IN, DC jack, 2-pin terminal)
DC jack input Voltage 12-57 V
2-pin terminal input Voltage 12-57 V
Max power consumption 29 W
Max power consumption without attachments 7 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V

PoE-out

Details
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 450 mA

Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 1G Ethernet ports with PoE-out 1

Fiber

Details
SFP+ ports 2

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54

Included parts
