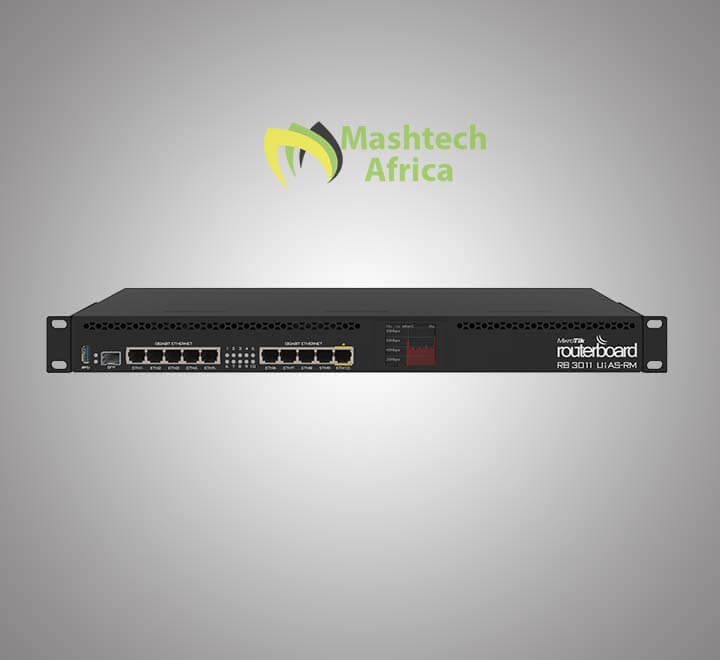

Mikrotik RouterBoard 10xGigabit RB3011UIAS-RM
8 in stock
- 1U rackmount
- 10xGigabit Ethernet
- SFP
- USB 3.0
- LCD
- PoE out on port 10
- 2×1.4GHz CPU
- 1GB RAM
- RouterOS L5
The Mikrotik RB3011UIAS-RM RouterBoard 10xGigabit with Dual-core 1.4GHz ARM CPU, 1GB RAM, 10x Gbit LAN, 1xSFP port, RouterOS L5, 1U rackmount case, LCD pane.
The Mikrotik RB3011UiAS-RM is a new multi-port device, our first to be running an ARM architecture CPU for higher performance than ever before.
The RB3011UiAS-RM has ten Gigabit ports divided into two switch groups, an SFP cage and for the first time a SuperSpeed full-size USB 3.0 port, for adding storage or an external 3G/4G modem.
It comes with a 1U rackmount enclosure, a touchscreen LCD panel, a serial console port, and PoE output functionality on the last Ethernet port.
SKU: RB3011UIAS-RM
$146.40 $156.90
8 in stock
Compare-
RouterBOARD
Mikrotik RouterBoard 10xGigabit RB3011UIAS-RM
- 1U rackmount
- 10xGigabit Ethernet
- SFP
- USB 3.0
- LCD
- PoE out on port 10
- 2×1.4GHz CPU
- 1GB RAM
- RouterOS L5
The Mikrotik RB3011UIAS-RM RouterBoard 10xGigabit with Dual-core 1.4GHz ARM CPU, 1GB RAM, 10x Gbit LAN, 1xSFP port, RouterOS L5, 1U rackmount case, LCD pane.
The Mikrotik RB3011UiAS-RM is a new multi-port device, our first to be running an ARM architecture CPU for higher performance than ever before.
The RB3011UiAS-RM has ten Gigabit ports divided into two switch groups, an SFP cage and for the first time a SuperSpeed full-size USB 3.0 port, for adding storage or an external 3G/4G modem.
It comes with a 1U rackmount enclosure, a touchscreen LCD panel, a serial console port, and PoE output functionality on the last Ethernet port.
SKU: RB3011UIAS-RM
SKU: RB3011UIAS-RM -
Cloud Core Router
Mikrotik Cloud Core Router CCR1016-12G
- 1U rackmount
- 16 core networking CPU, 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- Ports directly connected to CPU
- 1U rackmount case option
- 12x Gigabit ports
- Color touchscreen LCD display
- Up to 1.5 mpps throughput in regular mode
- Up to 17.8 mpps throughput in fastpath mode (wire speed)
- Up to 12 Gbps throughput with RouterOS queue/firewall configuration
- 3-10x faster than RB1100AHx2
CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
The device is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.
SKU: CCR1016-12G
SKU: CCR1016-12G
The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.
RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.
More Power, Greater Performance
The MikroTik RouterBOARD RB3011UiAS-RM follows on from the extremely popular previous generation RB2011 series. The CPU has been upgraded to 2 Cores at 1.4GHz and the RAM has been increased to a huge 1GB, providing the power to handle just about any networking task and making it ideal for both core routing and edge routing environments.
This 10 port router features 10x Gigabit Ethernet divided into two switch groups and 1x SFP cage for 1Gbps optical uplink. For the first time in a MikroTik RouterBoard, the RB3011UiAS-RM also features a SuperSpeed full size USB, perfect for attaching additional storage or an external 3G/4G modem.
The MikroTik RB3011UiAS-RM also supports PoE out on Port 10 enabling you to power an external device, such as a IP CCTV camera or even another RouterBoard device. A built-in touchscreen LCD screen allows for easy configuration and monitoring of the router’s performance.
RouterOS Installed
MikroTik RouterBOARD RB3011UiAS-RM comes preinstalled with the powerful RouterOS software and a Level 5 licence. The level 5 licence provides perpetual access to all the features available in RouterOS including: dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, and real-time configuration and monitoring.
IPSec HW Encryption Support
From RouterOS v6.43.1, the RB3011UiAS-RM will support IPsec hardware encryption.
Package Contents
- 1x RB3011UIAS-RM
- 1x Mains Power Lead
Product Features
- PoE Out on Port 10
- IPSec Hardware Encryption Support
- Full USB Port
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | RB3011UiAS-RM |
| Architecture | ARM 32bit |
| CPU | IPQ-8064 |
| CPU core count | 2 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 443 x 92 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $179.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 10 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 600 mA |
| Max total out (A) | 600 mA |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
