RouterBOARD

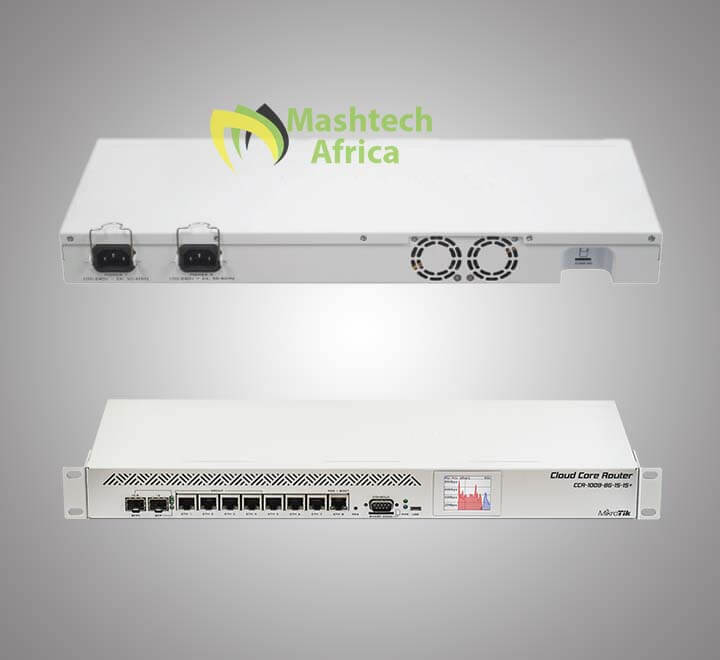

Mikrotik RouterBoard CCR1009-8G-1S-1S+
Availability:
9 in stock
- Mikrotik RouterBoard CCR1009-8G-1S-1S+ is a low-cost industrial grade router with Tilera 9 core CPU! Amazing power and performance for value – this is our full-featured, low-end CCR device, the Cloud Core Router (CCR1009). If you need many packets per second on a budget – Cloud Core Router with 9 cores is your best choice.
- The device comes in a 1U rackmount case, has one SFP port, one SFP+ port, eight Gigabit ethernet ports, a serial console port, a USB port, and dual power supplies.
- The CCR1009-8G-1S-1S+ has 2GB of DDR3 800MHz RAM soldered directly to the motherboard and cannot be expanded.
SKU: CCR1009-8G-1S-1S+
$504.26 $506.70
9 in stock
Compare-
RouterBOARD
Mikrotik RouterBoard CCR1009-8G-1S-1S+
- Mikrotik RouterBoard CCR1009-8G-1S-1S+ is a low-cost industrial grade router with Tilera 9 core CPU! Amazing power and performance for value – this is our full-featured, low-end CCR device, the Cloud Core Router (CCR1009). If you need many packets per second on a budget – Cloud Core Router with 9 cores is your best choice.
- The device comes in a 1U rackmount case, has one SFP port, one SFP+ port, eight Gigabit ethernet ports, a serial console port, a USB port, and dual power supplies.
- The CCR1009-8G-1S-1S+ has 2GB of DDR3 800MHz RAM soldered directly to the motherboard and cannot be expanded.
SKU: CCR1009-8G-1S-1S+
SKU: CCR1009-8G-1S-1S+ -
hEX Routers
Mikrotik hEX PoE Lite RB750UPR2
- 5xEthernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4
- hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.
- Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
- It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.
SKU: RB750UPR2
SKU: RB750UPR2 -
hEX Routers
MikroTik hEX PoE RB960PGS
- 5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
- hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and an SFP port for adding optical fiber connectivity. Ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit.
- It is affordable, small, and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Fewer power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
- It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE-capable devices with the same voltage as applied to the unit. Fewer power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices if 48-57 input voltage is used.
SKU: RB960PGS
SKU: RB960PGS
$658.79 for 3 item(s)
Mikrotik RouterBoard CCR1009-8G-1S-1S+
Specifications
| Details | |
|---|---|
| Product code | CCR1009-8G-1S-1S+ |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 444x175x44mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $495.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 14-57 V |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 35 W |
| Max power consumption without attachments | 35W |
| FAN count | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
SFP+ ports
|
1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Smart card (Mini-SIM) |
| Serial port | RS232 + Header |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | micro USB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Brands | MikroTik Wireless |
|---|
