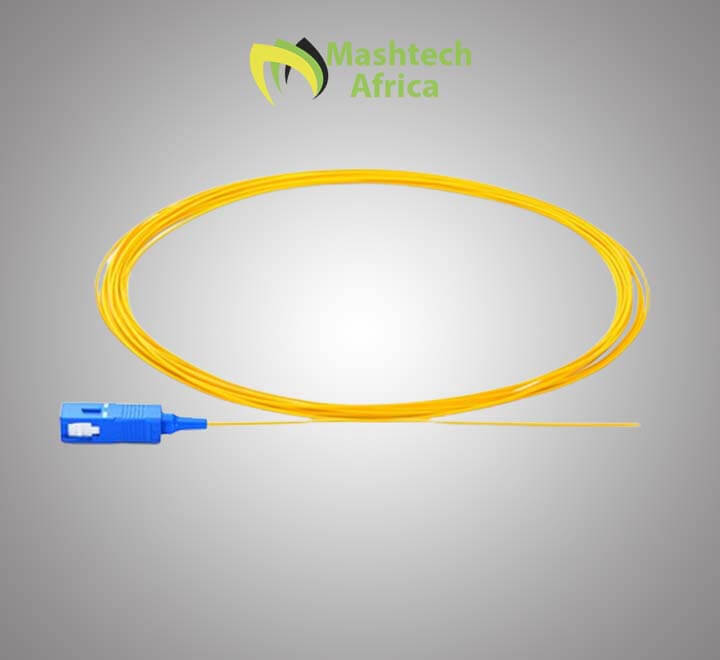

Simplex SC/UPC Fiber Optic Pigtail Cable 2mm,2m
Availability:
6 in stock
- Color: Green Black Yellow White Blue
- Length: 0.5m/1m/2m/5m/customized
- Fiber Type: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
- Strength member: Kevlar Yarn
- Application: Network System
SKU: SC-SC
$0.65
6 in stock
Compare-
-
Patch Cords & ODF'S
SC/APC Fiber Optic pigtail 2mm, 2m
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: simplex or duplex
- Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
- Cable Length: 1, 2, 3 mete
SKU: FPC-SCA-0S1-20-02
SKU: FPC-SCA-0S1-20-02
$1.30 for 2 item(s)
With the constant endorsement of our diligent experts, we are engrossed in presenting a highly qualitative Simplex Single-Mode Fiber Pigtailto the industry.
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured, and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
| Brands | Fibre Optics |
|---|
| Model | SM | MM | |
| Connector A:MPO/MTP | |||
| Connector Fiber Count | 8,12,24,48 Core | ||
| Polish | PC,APC | PC | |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| Connector B:LC,LC Uniboot,SC,FC,ST | |||
| Polish | PC,APC | PC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
SC/UPC Fiber Optic Pigtail Product Specification
| Connector A | SC | Connector B | Unterminated |
| Fiber Mode | 9/125 μm | Fiber Count | Simplex |
| Fiber Grade | G.652.D | Minimum Bend Radius | 30 mm |
| Polish Type | UPC | Cable Diameter | 0.9 mm |
| Cable Jacket | PVC | Jacket Color | Yellow |
| Wavelength | 1310 nm/1550 nm | Durability | 500 Times |
| Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB | Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
