Huawei HG8310M | ONT | 1x GPON, 1x RJ45 1000Mb/s
8 in stock

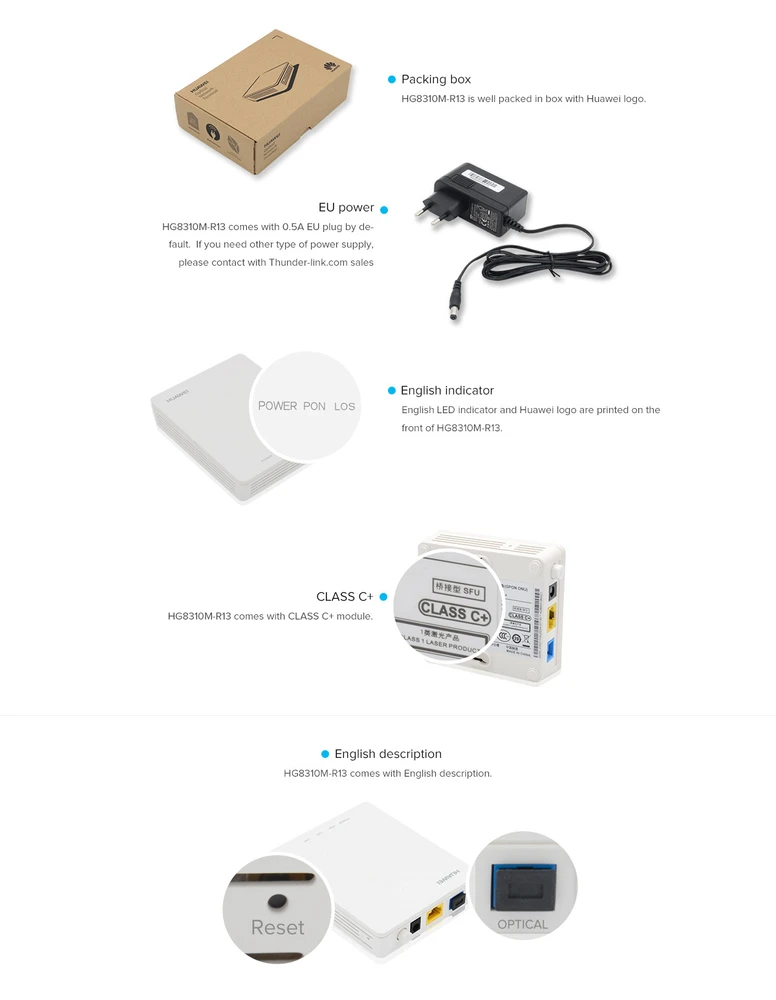

Huawei EchoLife HG8310M – small size ONU terminal
Huawei EchoLife HG8310M is an ONU terminal of the renowned Huawei company used in FTTx networks. Its small dimensions while maintaining high efficiency make it a perfect client device. It has one Ethernet port in Gigabit standard and a blue GPON port with a SC/UPC connector. The small size makes it easy to install the device and set up at the customer’s site. The terminal offers high switching efficiency and very high throughput, meeting even the highest requirements. Equipped with 12 V 0.5 A power supply.
- Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
- PON standard: GPON
- Wireless network standards: None
- USB port: None
SKU: HUAWEI HG8310M GPON
Compare
-
GPON
Huawei HG8310M | ONT | 1x GPON, 1x RJ45 1000Mb/s
Huawei EchoLife HG8310M – small size ONU terminal
Huawei EchoLife HG8310M is an ONU terminal of the renowned Huawei company used in FTTx networks. Its small dimensions while maintaining high efficiency make it a perfect client device. It has one Ethernet port in Gigabit standard and a blue GPON port with a SC/UPC connector. The small size makes it easy to install the device and set up at the customer’s site. The terminal offers high switching efficiency and very high throughput, meeting even the highest requirements. Equipped with 12 V 0.5 A power supply.
- Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
- PON standard: GPON
- Wireless network standards: None
- USB port: None
SKU: HUAWEI HG8310M GPON
SKU: HUAWEI HG8310M GPON -
GPON
Huawei HG8240H
Description
Echolife HG8240H GPON Terminal with 4*GE+2*POTS
- GPON ONT HG8240H Optical Network Terminal
- GPON ONT, 4*GE, 2*POTS
- Compatible with Huawei OLT that supports OMCI
- Coming with B+ Module
- Can be configured by OLT or Web or NMS
- HG8240H coming with English GUI
- Suitable for home and SOHO users
- Packing dimension: 176*146*28mm
- Gross Weight: 0.5kg
GPON ONT HG240H optical network terminal (ONT) is an indoor optical network terminal in FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8240H provides four GE Ethernet ports, two POTS ports.
SKU: HG8240H
SKU: HG8240H
Huawei EchoLife HG8310M – small size ONU terminal
Huawei EchoLife HG8310M is an ONU terminal of the renowned Huawei company used in FTTx networks. Its small dimensions while maintaining high efficiency make it a perfect client device. It has one Ethernet port in Gigabit standard and a blue GPON port with a SC/UPC connector. Small size makes it easy to install the device and set up at the customer’s site. The terminal offers high switching efficiency and very high throughput, meeting even the highest requirements. Equipped with 12 V 0.5 A power supply.
Main features:
- 1 GPON SC/UPC port
- 1 Gigabit Ethernet port
- Plug-and-play
- Built-in DHCP server for automatic IP address assignment
- Built-in dynamic DNS (DDNS) support and support for No-IP service
- Support for port forwarding, DMZ, firewall functions
- Quick, easy installation and configuration
- Remote management, configuration and diagnostics
- 12 V 0.5 A power supply plus EU adapter
Do you have any questions about the HG8310M ?
Contact us now via Live Chat or E-Mail: sales@mashtechafrica.com, sales.ug@mashtechafrica.com
| Brands | Huawei |
|---|
SPECIFICATION
| Features/filters | |
| Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
| PON standard | GPON |
| Wireless network standards | None |
| USB port | None |
| VoIP ports | None |
Technical specification HG8310M
| Interfaces | |
| GPON | 1 port class C+ Sensitive reception: ~-27 dBm Flexible mapping between the GEM and TCONT ports Wavelength: US 1310 nm, DS 1490 nm GPON: compatible with SN authentication or password as defined in G.984.3 Two-way FEC SR-DBA and NSR-DBA |
| Ethernet | 10/100/1000BASE-T (RJ45) Teaching MAC addresses Transparent transmission of IPv6 packets on layer 2 level QinQ VLAN |
| Connection type | SC/UPC |
| Physical characteristics | |
| Dimensions | 82 x 90 x 27 mm |
| Weight | < 500 g |
| Permissible operating temperature | 0° to 40° C |
| Permissible air humidity | 5%-95% RH, non-condensing |
| Power input | 100 – 240 V AC, 50 – 60 Hz |
| System power supply | 11 – 14 V DC, 0.5 A |
| Average power consumption | 2 W |
| Maximum power consumption | 3 W |
| LEDs | POWER/ PON/ FATE/ LAN |
| Set composition | Huawei HG8310M 12 V, 0.5 A DC power supply |
