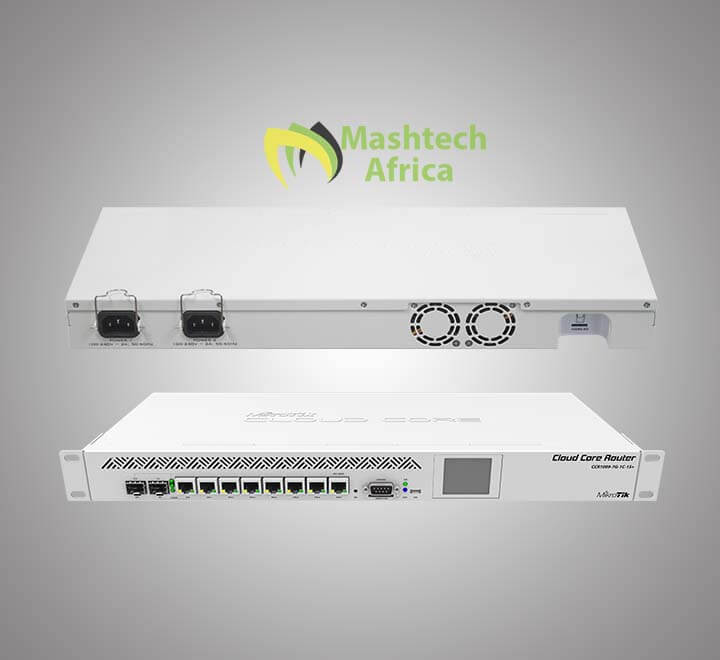

Mikrotik Cloud Core Router CCR1009-7G-1C-1S+
7 in stock
- 1U rackmount
- 7x Gigabit Ethernet
- 1x Combo port (SFP or Gigabit Ethernet)
- 1xSFP+ cage
- 9 cores x 1.2GHz CPU
- 2GB RAM, LCD panel
- Dual Power supplies
- SmartCard slot, RouterOS L6
The Mikrotik Cloudcore Router CCR1009-7G-1C-1S+ now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port – a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of a disconnect, the combo-port provides a hardware fail-over feature.
SKU: CCR1009-7G-1C-1S+
$366.00 $374.14
7 in stock
Compare-
Cloud Core Router
Mikrotik Cloud Core Router CCR1009-7G-1C-1S+
- 1U rackmount
- 7x Gigabit Ethernet
- 1x Combo port (SFP or Gigabit Ethernet)
- 1xSFP+ cage
- 9 cores x 1.2GHz CPU
- 2GB RAM, LCD panel
- Dual Power supplies
- SmartCard slot, RouterOS L6
The Mikrotik Cloudcore Router CCR1009-7G-1C-1S+ now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port – a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of a disconnect, the combo-port provides a hardware fail-over feature.
SKU: CCR1009-7G-1C-1S+
SKU: CCR1009-7G-1C-1S+ -
Cloud Core Router
Mikrotik Cloud Core Router CCR1009-7G-1C-1PC
- 7x Gigabit Ethernet
- 1x Combo port (SFP or Gigabit Ethernet)
- 9 cores x 1GHz CPU
- 1GB RAM
- passive cooling case
- RouterOS L6
The Mikrotik Cloudcore Router CCR1009-7G-1C-1PC now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port – a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of a disconnect, the combo-port provides a hardware fail-over feature.
SKU: CCR1009-7G-1C-1PC
SKU: CCR1009-7G-1C-1PC
Cutting Edge Performance
Based on the 1.2GHz 9-Core Tilera CPU, the MikroTik Cloud Core Router CCR1009-7G-1C-1S+ packs 7x Gigabit Ethernet, 1x SFP / Gigabit Ethernet and 1x 10Gbps SFP + ports all into a 1U rackmount enclosure.
The combination of a blazing fast Tilera CPU, 2GB of RAM and full independent Ethernet ports allows the CCR1009-7G-1C-1S+ to achieve a throughput of 18Gbps. The unit also comes equipped with dual redundant power supplies, so you can be sure your core routing infrastructure is always available when its needed most.
Future Proof Your Network
The MikroTik Cloud Core 1009 also features a wide range of additional features making it the perfect addition to your core networking infrastructure, now and in the future.
The combo SFP/Gigabit Ethernet port has two hardware interfaces enables you to use whichever type of connection is available to you. The CCR1009-7G-1C-1S+ also features a unique hardware failover feature on these ports providing redundancy if a connection was to fail.
Other features include a touchscreen LCD, PoE In support, a microUSB type AB port and an RS232 serial port.
RouterOS Installed
The MikroTik Cloud Core Router CCR1009-7G-1C-1S+ comes preinstalled with their powerful RouterOS software and Level 6 license. The Level 6 license never expires allows unrestricted use of RouterOS, allowing unlimited EoIP, PPOE, PTPP, L2TP, and OVPN tunnels and well and unlimited VLAN interfaces.
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | CCR1009-7G-1C-1S+ |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 175 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $495.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 39 W |
| Max power consumption without attachments | 34 W |
| FAN count | 2 |
| PoE in | Passive PoE |
| PoE in input Voltage | 15-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 7 |
| Ethernet Combo ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Smart card (Mini SIM) |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
