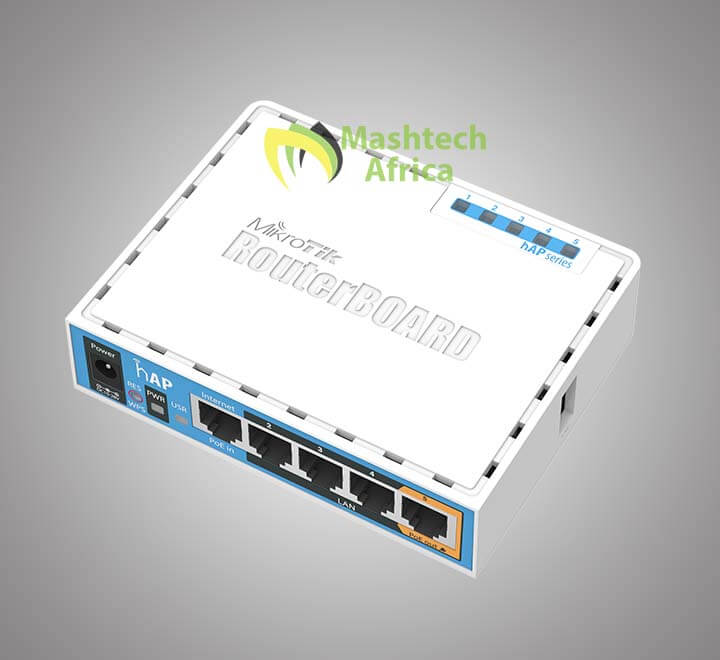

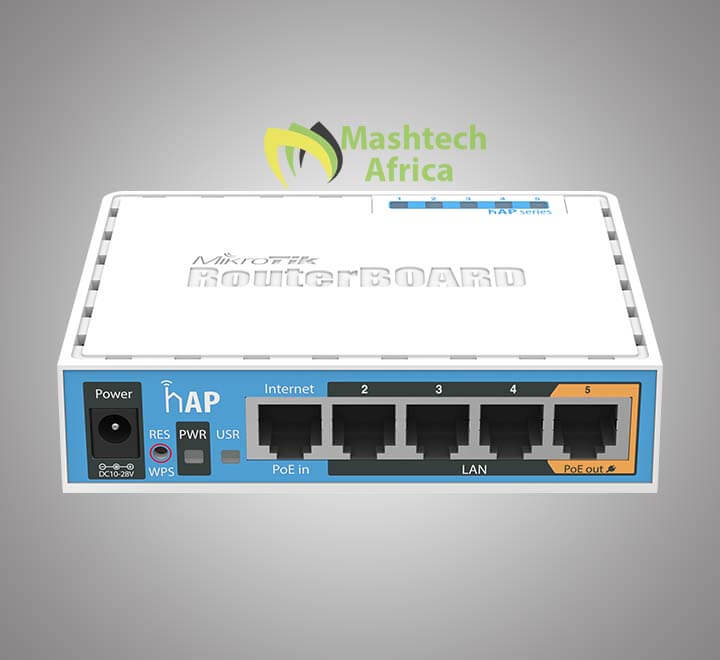

MikroTik RouterBOARD hAP Access Point RB951Ui-2nD
5 in stock
- 2.4GHz AP
- Five Ethernet ports
- PoE-out on port 5
- USB for 3G/4G support
- This Mikrotik RB951UI-2nD hAP access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
- The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.
- hAP provides a PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.
- The hAP is preconfigured, so all you need to do is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
SKU: RB951UI-2nD
$44.86 $48.95
5 in stock
Compare-
hAP, Mikrotik Access Points
MikroTik RouterBOARD hAP Access Point RB951Ui-2nD
- 2.4GHz AP
- Five Ethernet ports
- PoE-out on port 5
- USB for 3G/4G support
- This Mikrotik RB951UI-2nD hAP access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.
- The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.
- hAP provides a PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. The maximum load on the port is 500mA.
- The hAP is preconfigured, so all you need to do is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
SKU: RB951UI-2nD
SKU: RB951UI-2nD -
hAP, Mikrotik Access Points
Mikrotik hAP Lite TC RB941-2nD-TC
- Small home AP with four ethernet ports and a colorful enclosure.
- The home Access Point lite (hAP lite) is an ideal little device for your apartment, house, or office.
- It supports button-triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
- Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control, and many others.
- The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports, and a RouterOS L4 license. The USB power supply is included.
SKU: RB941-2nD-TC
SKU: RB941-2nD-TC
The MikroTik RouterBoard hAP (RB951Ui-2nD) wireless router is the perfect device for homes or small offices where a combination of wireless clients, such as smartphones and laptops, and wired devices, such as desktops and storage devices, require easy, reliable connectivity. The MikroTik hAP features a built-in 2.4GHz access point and five Ethernet ports, making it an ideal choice for WISPs to install in client premises.
The hAP can be powered from the DC power jack or with the included PoE Injector. The hAP arrives pre-configured, so all users need to do, is plug in the internet cable, the power, and start using the internet. For advanced set-up and configuration, the device runs RouterOS, a powerful operating system with a large range of robust features.
The MikroTik hAP provides PoE output function for port #5 – it can power other PoE-capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Package Contents
- 1x RB951UI-2ND
- 1x Mains Power Lead
Product Features
- Dual chain 2.4GHz wireless
- 650 MHz CPU
- 64 MB of RAM
- Passive PoE output on port 5
- USB port for 3G/4G modem
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | RB951Ui-2nD |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 113 x 89 x 28mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
| Suggested price | $45.00 |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 5 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 500 mA |
| Max total out (A) | 500 mA |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
Included parts
Based on 0 reviews
Be the first to review “MikroTik RouterBOARD hAP Access Point RB951Ui-2nD”
Related products
-
Cloud Router Switches
Mikrotik Cloud Router Switch CRS125-24G-1S-2HnD-IN
- 24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5
- The Mikrotik Cloud Router Switch CRS125-24G-1S-2HnD-IN is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
- What’s more – this device has a built-in 2.4GHz wireless access point, which means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device – ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a micro-USB port, and a built-in Wireless AP.
Perfect SOHO gateway router, switch, 11n AP all in one box
- Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to the internet
- RouterOS gateway/firewall/VPN router with passive cooling
- Up to twenty-five-gigabit switch ports (1xSFP and 24xRJ45)
- High power 2.4GHz 11n wireless AP
SKU: CRS125-24G-1S-2HnD-IN
SKU: CRS125-24G-1S-2HnD-IN -
Cloud Core Router
Mikrotik Cloudcore Router CCR1036-12G-4S-EM
- 1U rackmount case
- 12x Gigabit ports
- 4x SFP ports
- Color touchscreen LCD
- Ports directly connected to CPU
- 16GB (2x8GB) of RAM
- 36 core CPU
- 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- 8 mpps standard forwarding
- 24 mpps fastpath forwarding (wire speed for all ports)
- Up to16Gbit/s throughput
CCR1036-12G-4S is an industrial grade router with a cutting-edge 36 core CPU. If you need many millions of packets per second – Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
SKU: CCR1036-12G-4S-EM
SKU: CCR1036-12G-4S-EM -
Cloud Router Switches

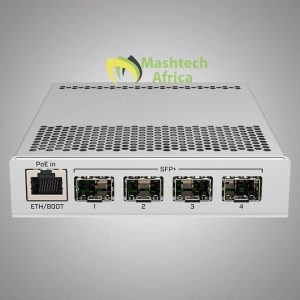

Mikrotik Cloud Router Switch CRS305-1G-4S+IN
