SRX1500-SYS-JB-AC Juniper Networks SRX1500 Services Gateway
8 in stock
Description
Name: SRX1500-SYS-JB-AC
Model: SRX1500-SYS-JB-AC – Juniper SRX Series Service Gateways
Detail: SRX1500-AC HW & JUNOS BASE (JSB)
SRX1500-SYS-JB-AC is the SRX1500 Services Gateway that includes hardware (16GbE, 4x10GbE, 16G RAM, 16G Flash, 100G SSD, AC PSU, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching).
SKU: SRX1500-SYS-JB-AC
Compare
-
Gateway
SRX1500-SYS-JB-AC Juniper Networks SRX1500 Services Gateway
Description
Name: SRX1500-SYS-JB-AC
Model: SRX1500-SYS-JB-AC – Juniper SRX Series Service Gateways
Detail: SRX1500-AC HW & JUNOS BASE (JSB)SRX1500-SYS-JB-AC is the SRX1500 Services Gateway that includes hardware (16GbE, 4x10GbE, 16G RAM, 16G Flash, 100G SSD, AC PSU, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching).
SKU: SRX1500-SYS-JB-AC
SKU: SRX1500-SYS-JB-AC -
Gateway
SRX340-SYS-JB Juniper SRX340 Series Service Gateways
Description
Juniper Networks® SRX300 line of services gateways delivers a next-generation networking and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy-to-manage, secure connectivity and advanced threat mitigation capabilities.
SKU: SRX340-SYS-JB
<!---->
SKU: SRX340-SYS-JB
SRX1500-SYS-JB-AC Overview
SRX1500-SYS-JB-AC is the SRX1500 Services Gateway that includes hardware (16GbE, 4x10GbE, 16G RAM, 16G Flash, 100G SSD, AC PSU, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching).
Quick Spec

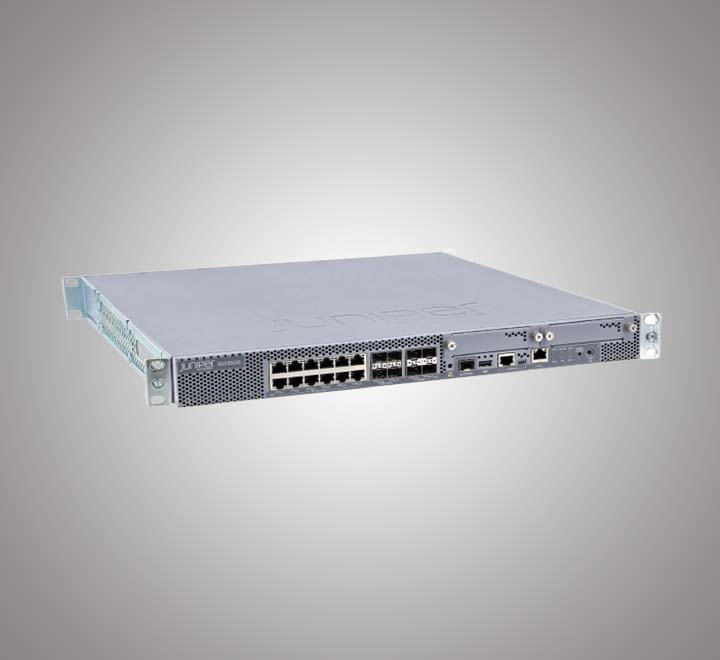

Figure 1 shows the appearance of SRX1500-SYS-JB-AC.
Table 1 shows the quick spec.
| Model | SRX1500-SYS-JB-AC |
| Onboard RJ-45 ports | 12x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
| Onboard SFP+ ports | 4x10GbE |
| Out-of-Band (OOB) management ports | 1x1GbE |
| Dedicated high availability (HA) ports | 1x1GbE (SFP) |
| System memory (RAM) | 16 GB |
| Primary boot storage (mSATA) | 16 GB |
| Secondary storage (SSD) | 100 GB |
| Routing/firewall (IMIX packet size) Gbps | 5 |
| Routing/firewall (1,518 B packet size) Gbps | 9 |
| IPsec VPN (IMIX packet size) Gbps | 1.3 |
| IPsec VPN (1400 B packet size) in Gbps | 4.5 |
| Form factor | 1 U |
Product Details
Figure 2 shows the front panel of SRX1500-SYS-JB-AC.
The SRX1500 Services Gateway is a next-generation firewall and security services gateway offering outstanding protection, performance, scalability, availability, and security service integration. Designed for port density, a high-performance security services architecture, and seamless integration of networking and security in a single platform, the SRX1500 is best suited for client protection in enterprise campus, regional headquarters, or cloud-based security solutions with a focus on application visibility and control, intrusion prevention, and advanced threat protection. The SRX1500 is powered by Junos OS, the industry-leading operating system that keeps the world’s largest and most mission-critical enterprise networks secure.
Table 2 shows the Features and Benefits.
| Business Requirement | Feature/Solution | SRX1500 Advantages |
| High performance | Up to 9 Gbps of firewall performance | Best suited for enterprise campus and data center edge deployments
Addresses future needs for scale and feature capacity |
| High quality end-user experience | Application visibility and control | Detects 3,500+ Layer 3-7 applications, including Web 2.0
Controls and prioritizes traffic based on application and user role Inspects and detects applications inside the SSL encrypted traffic |
| Threat protection | IPS, antivirus, anti-spam, enhanced web filtering, Juniper Advanced Threat Prevention Cloud, Encrypted Traffic Insights, Threat Intelligence Feeds, and Juniper ATP Appliance | Provides real-time updates to IPS signatures and protects against exploits
Implements industry-leading antivirus and URL filtering Delivers open threat intelligence platform that integrates with third-party feeds Protects against zero-day attacks Restores visibility lost due to encryption, without the heavy burden of full TLS/SSL decryption |
| Professional-grade networking services | Routing, switching, and secure wire | Supports carrier-class advanced routing, quality of service (QoS), and services
Offers flexible deployment modes (L1/L2/L3) |
| Highly secure | IPsec VPN, remote access/SSL VPN, secure boot | Provides high-performance IPsec VPN with dedicated crypto engine
Simplifies large VPN deployments with auto VPN and group VPN Offers secure and flexible remote access SSL VPN with Juniper Secure Connect Verifies binaries that execute on the hardware with secure boot |
| High reliability | Chassis cluster, redundant power supply | Provides stateful configuration and session synchronization
Supports active/active and active/backup deployment scenarios Offers highly available hardware with dual PSU, redundant fans |
| Easy to manage and scale | On-box GUI, Security Director | Enables centralized management for auto-provisioning, firewall policy management, Network Address Translation (NAT), and IPsec VPN deployments
Includes simple easy-to-use on-box GUI for local management |
| Lower TCO | Junos OS | Integrates routing, switching, and security in a single device
Reduces OpEx with Junos OS automation capabilities |
Compare to Similar Items
Table 3 shows the comparison.
| Model | SRX1500-SYS-JB-AC | SRX345-SYS-JB |
| Onboard RJ-45 ports | 12x1GbE | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE | 8x1GbE |
| Out-of-Band (OOB) management ports | 1x1GbE | 1x1GbE |
| System memory (RAM) | 16 GB | 4 GB |
| Secondary storage (SSD) | 100 GB | 8 GB |
| Form factor | 1 U | 1 U |
Get More Information
Do you have any question about the SRX1500-SYS-JB-AC?
Contact us now via Live Chat or E-Mail: sales@mashtechafrica.com, sales.ug@mashtechafrica.com
| Brands | Juniper product |
|---|
SRX1500-SYS-JB-AC Specification
SRX1500-SYS-JB-AC Specification |
|
|
Connectivity |
|
| Total onboard ports | 16x1GbE and 4x10GbE |
| Onboard RJ-45 ports | 12x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
| Onboard SFP+ ports | 4x10GbE |
| Out-of-Band (OOB) management ports | 1x1GbE |
| Dedicated high availability (HA) ports | 1x1GbE (SFP) |
| PIM slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 2.0 ports (type A) | 1 |
|
Memory and Storage |
|
| System memory (RAM) | 16 GB |
| Primary boot storage (mSATA) | 16 GB |
| Secondary storage (SSD) | 100 GB |
|
Dimensions and Power |
|
| Form factor | 1 U |
| Size (WxHxD) | 17.5 x 1.75 x 18.2 in (44.45 x 4.44 x 46.22 cm) |
| Weight (device and PSU) | 15.31 kg |
| Redundant PSU | 1+1 |
| Power supply | AC/DC (external) |
| Average power consumption | 150 W |
| Average heat dissipation | 512 BTU / hour |
| Maximum current consumption | 2.5A (for AC PSU); 6.2A (for DC PSU) |
| Maximum inrush current | 50A by 1 AC cycle |
| Acoustic noise level | 66.5dBA |
| Airflow/cooling | Front to back |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Nonoperating temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
| Meantime between failures (MTBF) | 9.78 years (85,787 hours) |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 2 (Junos 19.2) |
|
Performance and Scale |
|
| Routing/firewall (IMIX packet size) Gbps2 | 5 |
| Routing/firewall (1,518 B packet size) Gbps2 | 9 |
| IPsec VPN (IMIX packet size) Gbps2 | 1.3 |
| IPsec VPN (1400 B packet size) in Gbps2 | 4.5 |
| Application visibility and control in Gbps3 | 7 |
| Recommended IPS in Gbps3 | 4 |
| Next-generation firewall in Gbps3 | 1.7 |
| Route table size (RIB/FIB) (IPv4) | 2 million / 1 million |
| Maximum concurrent sessions (IPv4 or IPv6) | 2,000,000 |
| Maximum security policies | 16,000 |
| Connections per second | 90,000 |
| NAT rules | 8,000 |
| Media access control (MAC) table size | 64,000 (standalone mode) |
| IPsec VPN tunnels | 2,000 |
| Number of remote access/SSL VPN (concurrent) users | 2,000 |
| GRE tunnels | 2,048 |
| Maximum security zones | 512 |
| Maximum virtual router | 512 |
| Maximum VLANs | 3,900 |
