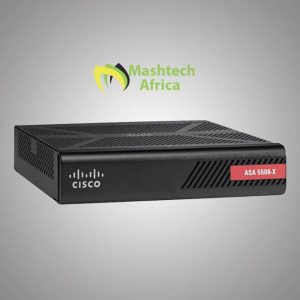

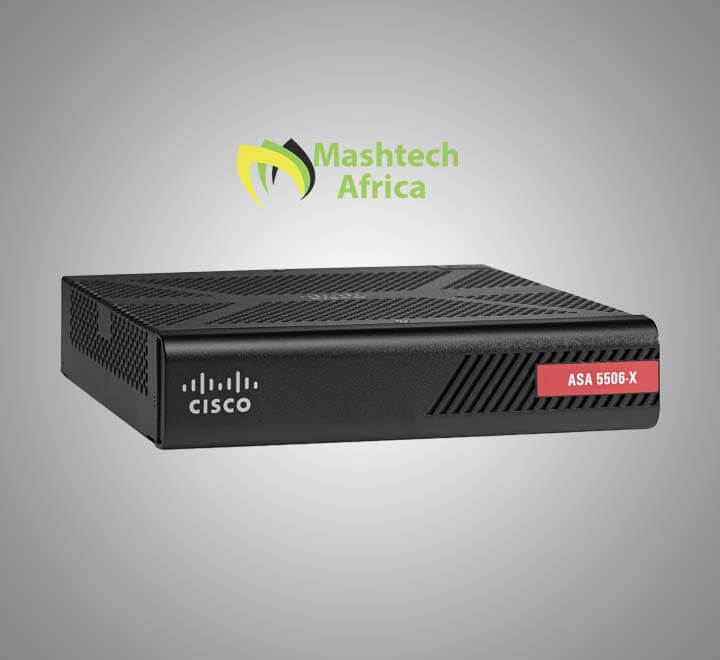

Cisco ASA 5500-X Series Low-End Appliances with FirePOWER Services |
Maximum application control (AVC) throughput |
250 Mbps |
250 Mbps |
250 Mbps |
450 Mbps |
850 Mbps |
Maximum application control (AVC) and IPS throughput |
125 Mbps |
125 Mbps |
125 Mbps |
250 Mbps |
600 Mbps |
Maximum concurrent sessions |
20,000; 50000 |
20,000; 50000 |
50,000 |
100,000 |
250,000 |
Maximum New Connections per second |
5,000 |
5,000 |
5,000 |
10,000 |
20,000 |
Application control (AVC) or IPS sizing throughput [440 byte HTTP]* |
90 Mbps |
90 Mbps |
90 Mbps |
200 Mbps |
500 Mbps |
Supported applications |
More than 3,000 |
URL categories |
80+ |
Number of URLs categorized |
More than 280 million |
Centralized configuration, logging, monitoring, and reporting |
Multi-device Cisco Security Manager and Cisco FireSIGHT Management Center |
On-Device Management |
ASDM 7.3.x |
Cisco ASA 5500-X Series Next-Generation Firewalls Hardware |
Stateful inspection throughput (maximum1) |
750 Mbps |
750 Mbps |
750 Mbps |
1 Gbps |
1.8 Gbps |
Stateful inspection throughput (multiprotocol2) |
300 Mbps |
300 Mbps |
300 Mbps |
500 Mbps |
900 Mbps |
Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput3 |
100 Mbps |
100 Mbps |
100 Mbps |
175 Mbps |
250 Mbps |
Users/nodes |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
Unlimited |
IPsec VPN peers |
10; 504 |
10; 504 |
50 |
100 |
300 |
Cisco Cloud Web Security users |
275 |
275 |
275 |
565 |
2000 |
Cisco AnyConnect Premium/Apex VPN peers (included; maximum) |
2; 504 |
2; 504 |
50 |
100 |
300 |
Virtual interfaces (VLANs) |
5; 304 |
5; 304 |
30 |
50 |
100 |
Security contexts5 (included; maximum) |
N/A |
N/A |
N/A |
2; 5 |
2; 5 |
High availability4 |
Requires Security Plus License; Active/Standby |
Requires Security Plus License; Active/Standby |
Requires Security Plus License; Active/Standby |
Active/Active and Active/Standby |
Active/Active and Active/Standby |
Integrated Wireless Access Point |
N/A |
Wireless Bands a/b/g/n; Max n wifi throughput 54 Mbps; internal antenna only; local management or centralized via Cisco WLC |
N/A |
N/A |
N/A |
Expansion slot |
N/A |
N/A |
N/A |
N/A |
N/A |
User-accessible Flash slot |
No |
No |
No |
No |
No |
USB 2.0 ports |
USB port type ‘A’, High Speed 2.0 |
USB port type ‘A’, High Speed 2.0 |
USB port type ‘A’, High Speed 2.0 |
USB port type ‘A’, High Speed 2.0 |
USB port type ‘A’, High Speed 2.0 |

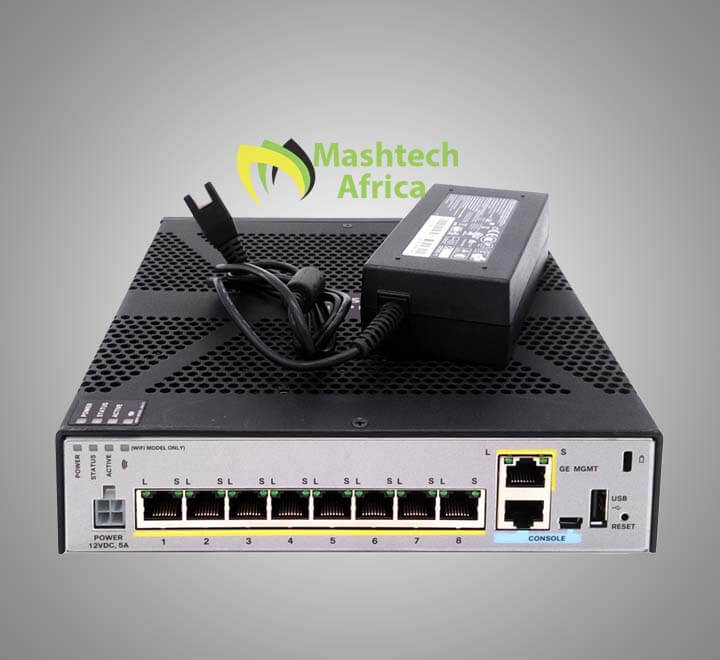

Integrated I/O |
8 x 1GE |
8 x 1GE |
4 x 1GE |
8 x 1GE |
8 x 1GE |
Expansion I/O |
N/A |
N/A |
N/A |
N/A |
N/A |
Dedicated management port |
Yes (To be shared with Firepower services), 10/100/1000 |
Yes (To be shared with FirePOWER Services), 10/100/1000 |
Yes (To be shared with FirePOWER Services), 10/100/1000 Base-T, 100Base-FX, 1000Base-X |
Yes (To be shared with FirePOWER Services), 10/100/1000 |
Yes (To be shared with FirePOWER Services), 10/100/1000 |
Serial ports |
1 RJ-45 and Mini USB console |
1 RJ-45 and Mini USB console |
1 RJ-45 and Mini USB console |
1 RJ-45 and Mini USB console |
1 RJ-45 and Mini USB console |
Solid-state drive |
50 GB mSata6 |
50 GB mSata6 |
50 GB mSata tested for heat |
80 GB mSata6 |
100 GB mSata6 |
Memory |
4 GB |
4 GB |
4 GB |
8 GB |
12 GB |
Minimum system flash |
8 GB |
4 GB |
8 GB |
8 GB |
8 GB |
System bus |
Multibus architecture |
Multibus architecture |
Multibus architecture |
Multibus architecture |
Multibus architecture |
Operating Temperature |
32 to 104°F (0 to 40 °C) |
Operating Relative Humidity |
90 percent noncondensing |
10 to 90 percent noncondensing |
Operating Altitude |
Designed and tested for 0 to 10,000 ft (3050 m) |
Acoustic noise |
Fanless
0 dBA |
Fanless
0 dBA |
Fanless
0 dBA |
41.6 A-weighted decibels (dBA) type
67.2 dBA max |
41.6 dBA type
67.2 dBA max |
Nonoperating Temperature |
-13 to 158ºF (-25 to 70ºC) |
-40 to 185ºF (-40 to 85ºC) |
-13 to 158ºF (-25 to 70ºC) |
Nonoperating Relative Humidity |
10 to 95 percent noncondensing |
10 to 95 percent noncondensing |
10 to 90 percent |
Nonoperating Altitude |
Designed and tested for 0 to 15,000 ft (4572 m) |
AC range line voltage |
External, 90 to 240 volts alternating current (VAC) |
AC normal line voltage |
90 to 240 VAC |
100 to 240 VAC |
100 to 240 VAC |
100 to 240 VAC |
100 to 240 VAC |
AC current |
N/A |
N/A |
N/A |
0.25AC amps |
0.25AC amps |
AC frequency |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
Dual-power supplies |
None |
None |
None |
None |
Yes |
DC domestic line voltage |
N/A |
N/A |
N/A |
N/A |
N/A |
DC international line voltage |
N/A |
N/A |
N/A |
N/A |
N/A |
DC current |
N/A |
N/A |
N/A |
N/A |
N/A |
Steady state |
12V @2.5A |
12V @2.5A |
5V @3.6A |
12V @ 3.0A |
12V @ 3.0A |
Maximum peak |
12V @ 5A |
12V @ 5A |
5V @4.4A |
12V @ 5.0A |
12V @ 5.0A |
Maximum heat dissipation |
103 Btu/hr |
103 Btu/hr |
103 Btu/hr |
123 Btu/hr |
123 Btu/hr |
Form Factor |
Desktop |
Desktop |
Desktop, rack mountable, wall mountable, DIN-Rail |
1 rack unit (RU), 19-in. rack-mountable |
Dimensions (H x W x D) |
7.871 x 9.23 x 1.72 in.
(19.992 x 23.444 x 4.369 cm) |
9.05 x 9.05 x 2.72 in.
(23.0 x 23.0 x 6.9 cm) |
17.2 x 11.288 x 1.72 in.
(43.688 x 28.672 x 4.369 cm) |
Weight (with AC power supply) |
4 lb (1.82 kg) |
4 lb (1.82 kg) |
7 lb (3.18 kg) |
8 lb (3 kg) |
8 lb (3 kg) |
Safety |
UL 60950
CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
AS/NZS 60950 |
UL 60951
CAN/CSA-C22.2 No. 60951
EN 60951
IEC 60951
AS/NZS 60951 |
UL 60950
CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
AS/NZS 60950 |
UL 60952
CAN/CSA-C22.2 No. 60952
EN 60952
IEC 60952
AS/NZS 60952 |
UL 60953
CAN/CSA-C22.2 No. 60953
EN 60953
IEC 60953
AS/NZS 60953 |
Electromagnetic compatibility (EMC) |
47 CFR Part 15
CISPR22: Edition 6.0
CNS13438
EN 300 386 V1.6.1
EN 55022
EN61000-3-2
EN61000-3-3
ICES-003 Issue 5
QCVN 54: BTTTT
TCVN 7189
VCCI: V-3
CISPR24
EN 300 386 V1.6.1
EN301 489-1 v1.9.2
EN301 489-17 v2.1.1
EN301 489-24 v1.5.1
EN301 489-4 V1.4.1
EN301 489-7 v1.3.1
EN55024
QCVN 18: BTTTT
TCVN 7317 |
