Mikrotik cAP AC RBcAPGi-5acD2nD

MikroTik Wireless
Availability:

9 in stock

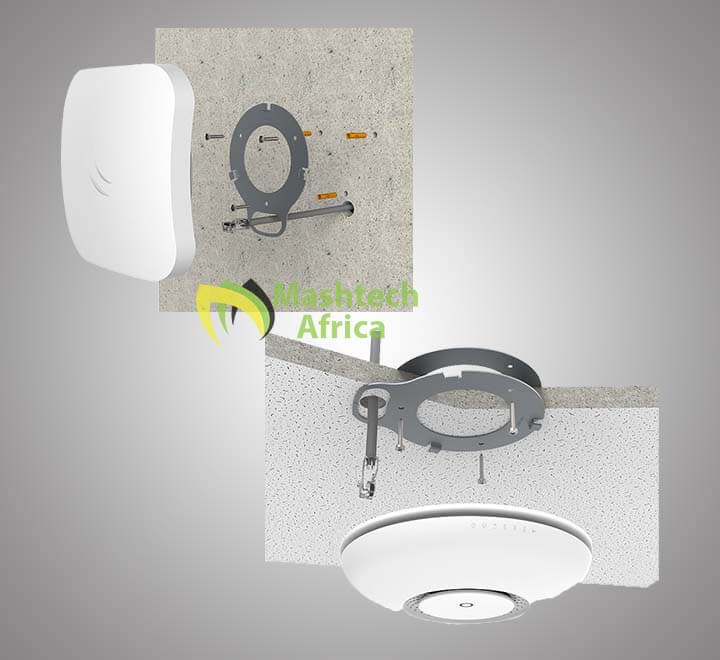

  • Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support, and IPsec hardware encryption support
  • The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual-band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards and will provide coverage in 360 degrees around it.
  • Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. The device supports IPsec hardware acceleration too.- cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).- cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz, and 5725-5835MHz frequencies. This lock can not be removed.

SKU: RBcAPGi-5acD2nD

KSh 6,999.00 KSh 8,500.00

9 in stock

KSh 13,499.00 for 3 item(s)

Specifications

Details
Product code RBcAPGi-5acD2nD
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions Round case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 50°C
IPsec hardware acceleration Yes
Suggested price $69.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
AC speed AC1200

Ethernet

Details
10/100/1000 Ethernet ports 2

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 24 W
Max power consumption without attachments 13 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 17-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 500 mA

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Other

Details
Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 21 -80
MCS0 26 -96
MCS7 20 -75
MCS9 18 -70

Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from the date of purchase
