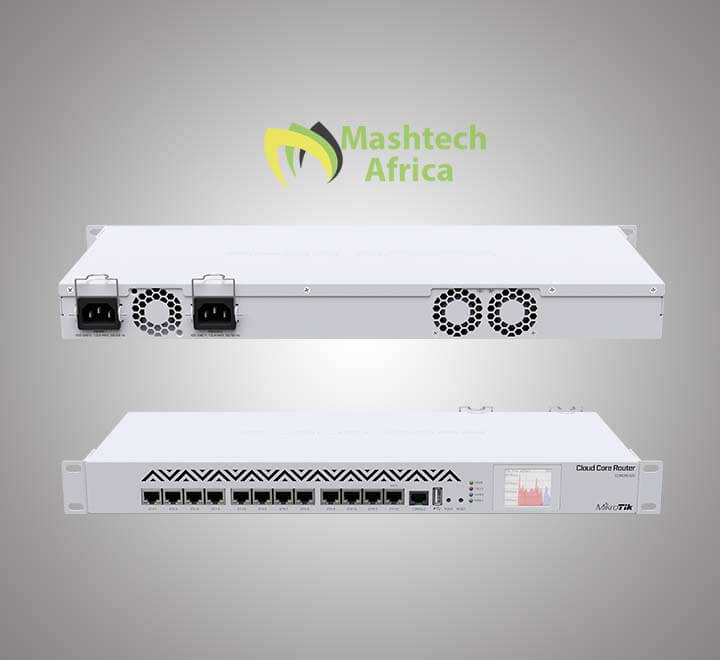

Mikrotik Cloud Core Router CCR1016-12G
8 in stock
- 1U rackmount
- 16 core networking CPU, 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- Ports directly connected to CPU
- 1U rackmount case option
- 12x Gigabit ports
- Color touchscreen LCD display
- Up to 1.5 mpps throughput in regular mode
- Up to 17.8 mpps throughput in fastpath mode (wire speed)
- Up to 12 Gbps throughput with RouterOS queue/firewall configuration
- 3-10x faster than RB1100AHx2
CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
The device is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.
SKU: CCR1016-12G
Compare
-
Cloud Core Router
Mikrotik Cloud Core Router CCR1016-12G
- 1U rackmount
- 16 core networking CPU, 1.2GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- Ports directly connected to CPU
- 1U rackmount case option
- 12x Gigabit ports
- Color touchscreen LCD display
- Up to 1.5 mpps throughput in regular mode
- Up to 17.8 mpps throughput in fastpath mode (wire speed)
- Up to 12 Gbps throughput with RouterOS queue/firewall configuration
- 3-10x faster than RB1100AHx2
CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.
The device is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.
SKU: CCR1016-12G
SKU: CCR1016-12G -
Cloud Core Router
Mikrotik Cloud Core Router CCR1009-7G-1C-1PC
- 7x Gigabit Ethernet
- 1x Combo port (SFP or Gigabit Ethernet)
- 9 cores x 1GHz CPU
- 1GB RAM
- passive cooling case
- RouterOS L6
The Mikrotik Cloudcore Router CCR1009-7G-1C-1PC now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port – a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of a disconnect, the combo-port provides a hardware fail-over feature.
SKU: CCR1009-7G-1C-1PC
SKU: CCR1009-7G-1C-1PC
CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second – Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.
The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!
The MikroTik RouterBoard Cloud Core Router CCR1016 is an industrial grade, super fast router with a cutting edge 16 core CPU. Capable of many millions of packets per second the Cloud Core CCR1016 comes in a 1U rackmount case with 12x Gigabit ethernet ports all directly connected to the Cloud Core Routers CPU for fast packet processing. The CCR1016 also has two SODIMM slots. By default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more).
| Brands | MikroTik Wireless |
|---|
Specifications
| Details | |
|---|---|
| Product code | CCR1016-12G |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 193 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $645.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 42 W |
| Max power consumption without attachments | 37 W |
| FAN count | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 12 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
