Mikrotik Cloud Core Router CCR1072-1G-8S+

MikroTik Wireless
Availability:

9 in stock


  • 1U rackmount
  • 1x Gigabit Ethernet
  • 8xSFP+ cages
  • LCD, 72 cores x 1GHz CPU
  • 16GB RAM
  • up to 120 million packets per second
  • 80Gbps throughput, RouterOS L6

The Mikrotik Cloudcore Router CCR1072-1G-8S+ comes equipped with installed RouterOS L6, 16GB of built-in ECC RAM, touchscreen color LCD, two removable (hotplug) power supplies for redundancy, smart card slot, micro USB, regular size USB, microSD, and 2x M.2 slots for additional storage.

Thanks to the unique 72 core processor and ports that are directly connected to the CPU, CCR1072 is capable of over 120 million packets per second throughput.

SKU: CCR1072-1G-8S+

KSh 300,000.00 KSh 310,000.00

9 in stock

KSh 355,999.00 for 2 item(s)

MikroTik’s Flagship Router

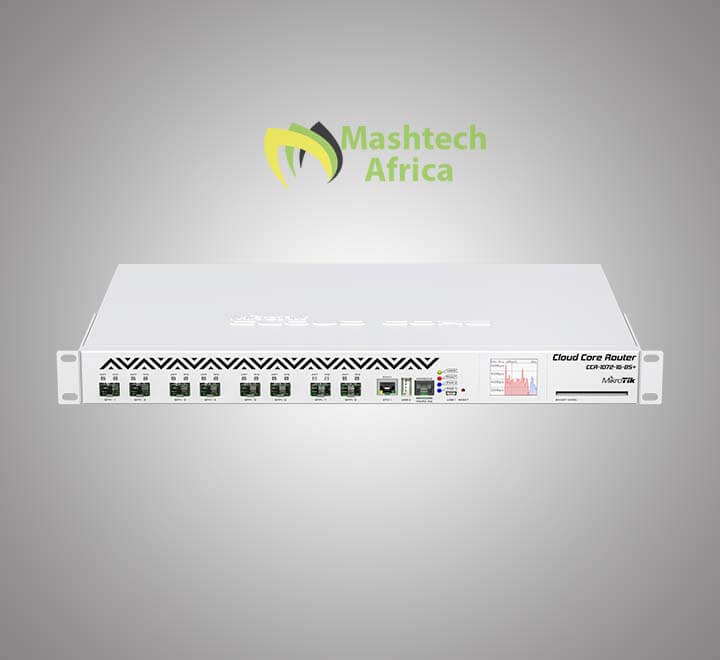

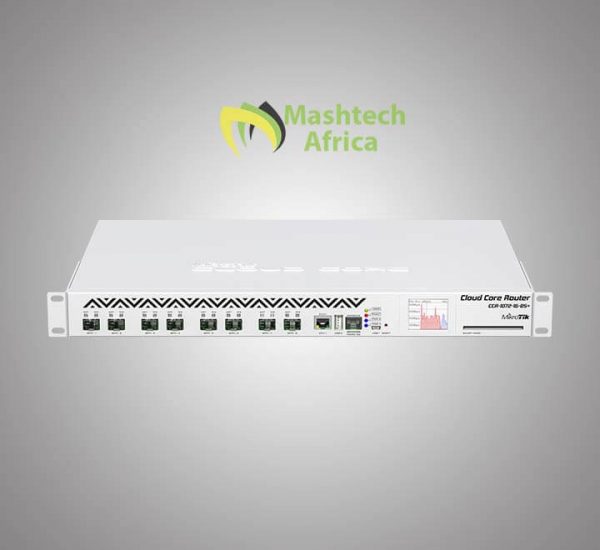

The MikroTik Cloud Core Router CCR1072 (CCR1072-1G-8S+) is powered by a 72 core Tilera CPU with each core clocked at 1GHz. The MikroTik Cloud Core Router CCR1072-1G-8S+ packs in 8x independently connected SFP+ ports and a management Ethernet port.

The combination of the incredible 72 core Tilera CPU, 16GB of RAM and SFP+ connected directly to the CPU allows the CCR1072-1G-8S+ to achieve throughput of over 120 million packets per second and up to 80Gbps!

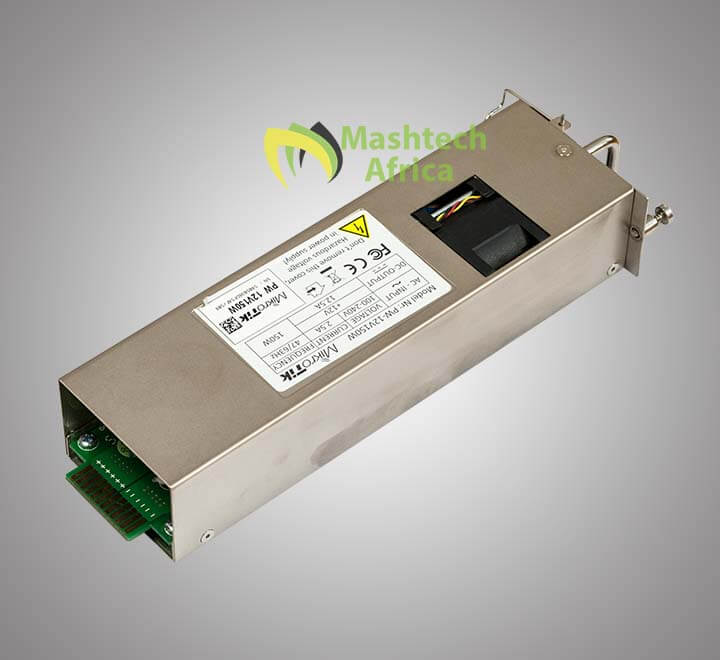

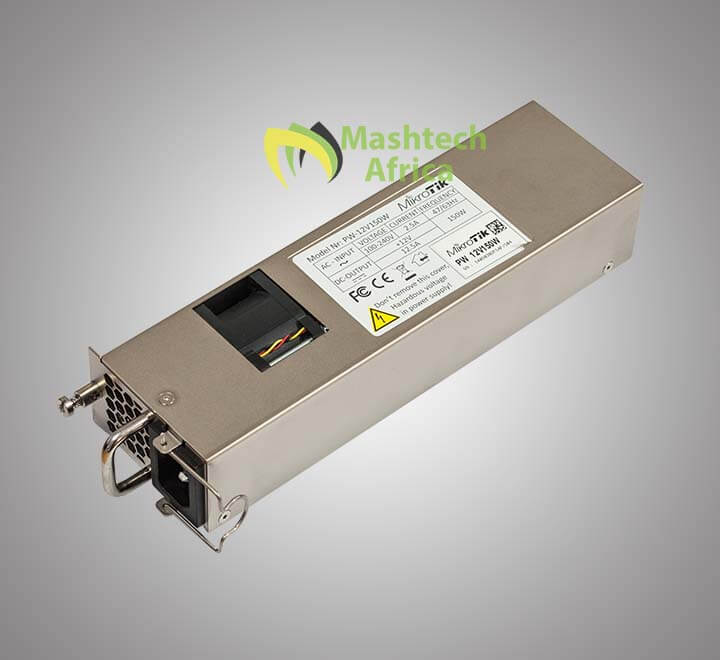

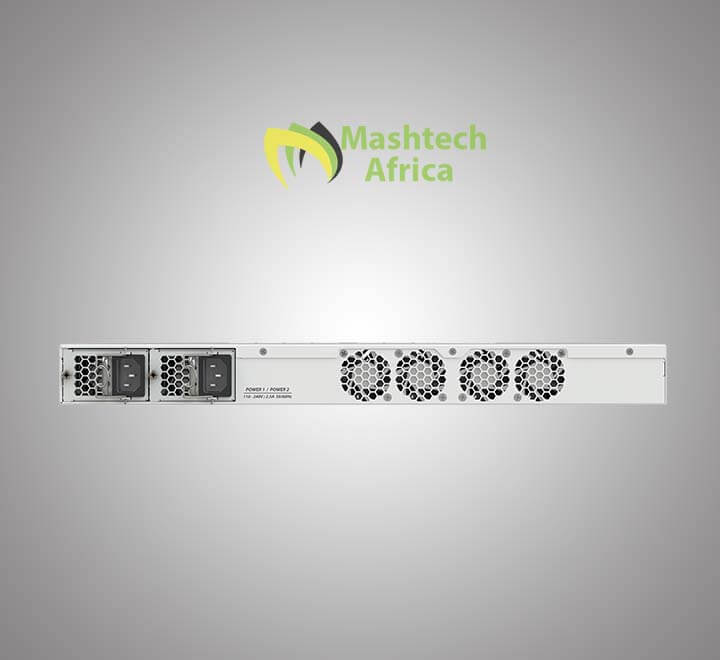

The unit also comes equipped with two removable and hot-pluggable redundant power supplies, so you can be sure your core routing infrastructure is always available when its needed most.

Powerful Core Routing

The MikroTik Cloud Core Router CCR1072-1G-8S+ also features a wide range of additional features making it the perfect addition to your core networking infrastructure, now and in the future.

The CCR1072 also has two built-in M.2 slots, microSD and 2x USB for adding storage, to use for proxy cache, user manager and other features. The M.2 slots accept 800mm Key-M x4 PCIe 2.0 modules.

Other features include a touchscreen LCD, a microUSB type AB port, a USB type A port and RouterOS Level 6 License.

RouterOS Installed

The MikroTik Cloud Core Router CCR1072-1G-8S+ comes preinstalled with their powerful RouterOS software and Level 6 license. The Level 6 license never expires and allows unrestricted use of RouterOS, allowing unlimited EoIP, PPOE, PTPP, L2TP, and OVPN tunnels and well and unlimited VLAN interfaces.

Package Contents

  • 1x CCR1072-1G-8S+
  • 1x Screw and Feet Kit
  • 2x Mains Power Lead
  • 1x USB Cable
Brands

MikroTik Wireless

Specifications

Details
Product code CCR1072-1G-8S+
Architecture TILE
CPU TLR4-07280
CPU core count 72
CPU nominal frequency 1 GHz
Dimensions 443 x 315 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $3050.00

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 125 W
FAN count 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP+ ports 8

Peripherals

Details
Memory card type microSD, 2x M.2
Memory Cards 3
Serial console port RJ45
Number of USB ports 2
USB Power Reset Yes
USB slot type microUSB type AB; USB type A
Max USB current (A) 1
Smart card slot Yes

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
