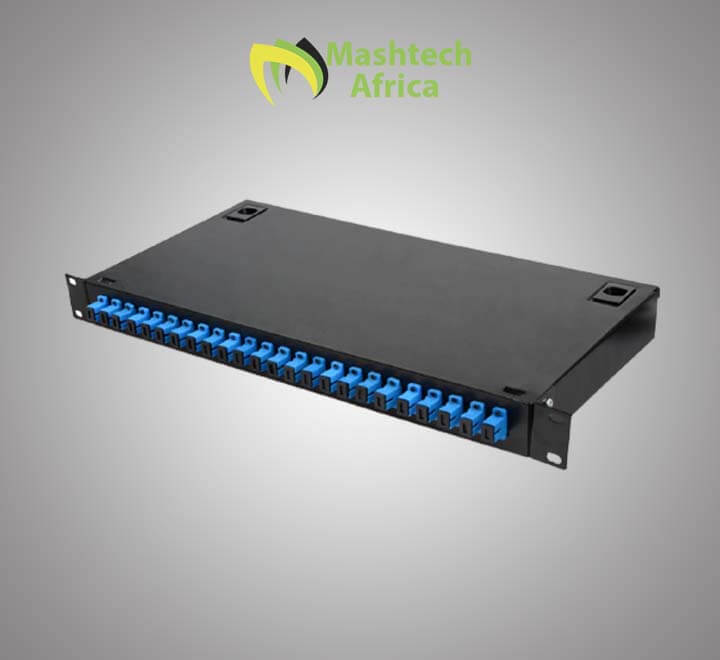

1U Fiber Optic Patch Panel Rack Mount 12 Core ODF With Pigtails SC

Fibre Optics
Availability:

7 in stock


  • Description: rack-mounted fiber patch panel 24 SC simplex sliding type
  • Applicable in the branch connection of fiber termination, work as distribution box
  • 19-inch standard structure, rack-mounted
  • Available for the installation of FC, SC, ST, LC adapters
  • Size: 450*277*1U
  • The body is made of cold-rolled steel sheet, with electrostatic spraying

SKU: OTB-005

KSh 7,000.00

7 in stock

SC / UPC Metal Fiber Rack Mount Patch Panel 24 Port 24 Core Fiber Distribution Unit

This Sliding Fiber Optical patch panel is a 19-inch standard type with 2 steel rails at the side of the panel. It is can be equipped with 2 fiber splice trays for 1U type . The maximum fiber core is up to 48cores. The sliding Fiber Optical patch panel perform fiber splicing, distribution, termination, patching, storage and management in one unit.

Rack Mounted Fiber Optic Patch Panel, Fiber Distribution Box, Fiber ODF, 12 Ports,24 ports,36 ports,48 ports,72 ports can be with Fiber Optical Adapter& Pigtail, Fiber patch panel box.

Features:

We can install adapters for you, available for FC, ST, SC, LC

Application:

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
Brands

Fibre Optics

Technical Specifications

Item OTB-001 OTB-002 OTB-003 OTB-004 OTB-005 OTB-006 OTB-007 OTB-008
Size(H*W*D)mm 280*130*1U 485*200*1U 485*305*2U 485*200*1U 485*305*1U 430*300*1U 430*300*1U 436*300*2U
Adapter port 8 24 48 24 24 24 24 96
Max splice capacity 8 24 48 24 24 24 24 96
Suitable adapter FC,ST,SC,LC
Weight (KG) 1.5 2.6 3.4 3.5 3.7 3.9 4.5 5.5
Material Stainless steel
Type Fixed Slide Slide Fixed Slide Slide
